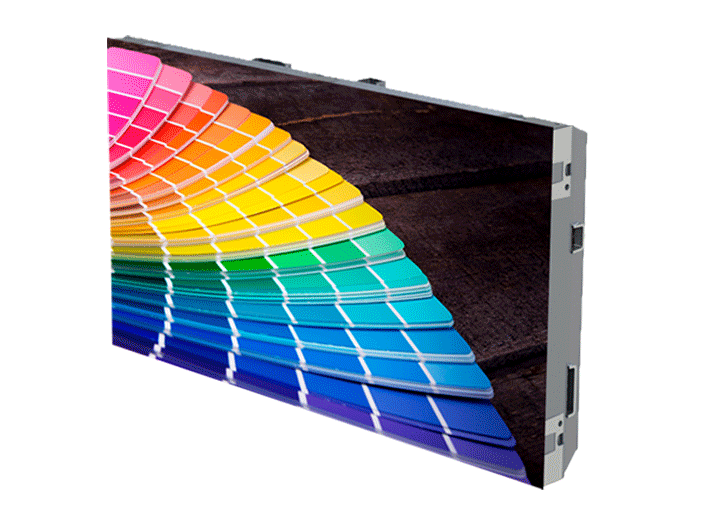

Planar Venue Pro 1.5mm – Virtual Production LED Cabinet

Product Overview

The Planar Venue Pro Virtual Production 1.5mm cabinet is a fine-pitch indoor LED video wall element built for virtual production stages, broadcast studios, and high-detail fixed installations. This 500mm x 500mm magnetic-attach cabinet provides 600 nits of brightness, a level well matched to camera-facing in-camera VFX environments. It uses a full front-access design for single-person service and a ColorLight i9+ receiver card. SKU 998-3831-00 ships as an indoor configuration with a single power supply.

Product Description

This Venue Pro Virtual Production cabinet applies the standardized 500mm x 500mm Venue Pro platform to the demands of camera-based content capture, where fine pitch and controlled brightness matter more than raw light output. The 1.5mm pixel pitch supports close camera distances and tight shots common in broadcast studios and in-camera VFX volumes. A 600-nit brightness rating provides headroom for exposure control without overwhelming on-set cameras. The 500mm x 500mm cabinet format lets integrators build flat walls, ceilings, and faceted curves from a single hardware platform, simplifying spares and layout planning. Cabinet-to-cabinet magnetic assistance holds adjacent cabinets in place while a single installer engages the quick-lock system, reducing labor on large stage builds. Full front service access lets technicians reach electronics from the viewing side, which is valuable on permanent stage walls with limited rear clearance. The integrated ColorLight i9+ receiver card handles signal processing within each cabinet, and a single power supply keeps indoor wiring straightforward. For broadcast and virtual production teams, the consistent cabinet geometry supports repeatable alignment across large volumes. Planar offers the Venue Pro line across multiple pitches so specifiers can match resolution to camera distance and budget. Review related options on the Creation Networks Planar collection. Creation Networks supplies this cabinet as a draft commercial configuration; contact our team to confirm stage sizing, processing, and genlock requirements for your production environment.

Key Features

• 1.5mm pixel pitch — Fine pitch supports close camera distances used in virtual production and broadcast capture.
• Virtual production focus — Configured for in-camera VFX and studio applications where image fidelity is critical.
• 600-nit brightness — Controlled output level suited to camera exposure on set.
• 500mm x 500mm cabinet — Standardized format simplifies flat, ceiling, and curved stage construction.

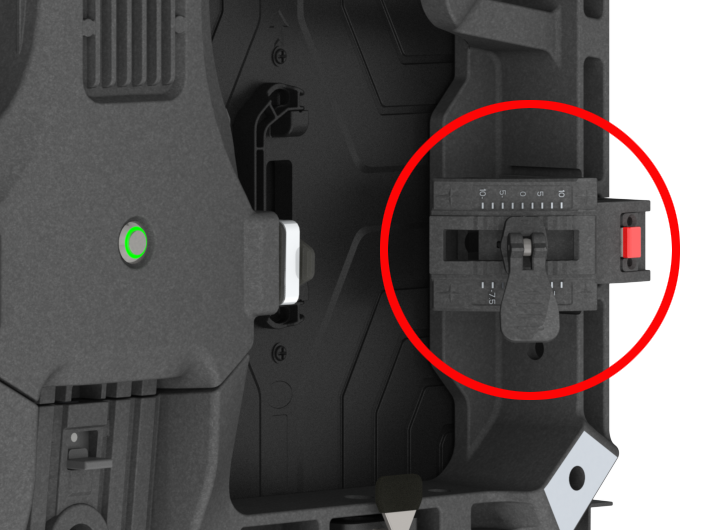

• Magnetic attach with quick-lock — Magnetic assistance holds cabinets while a single installer secures the quick-lock system.

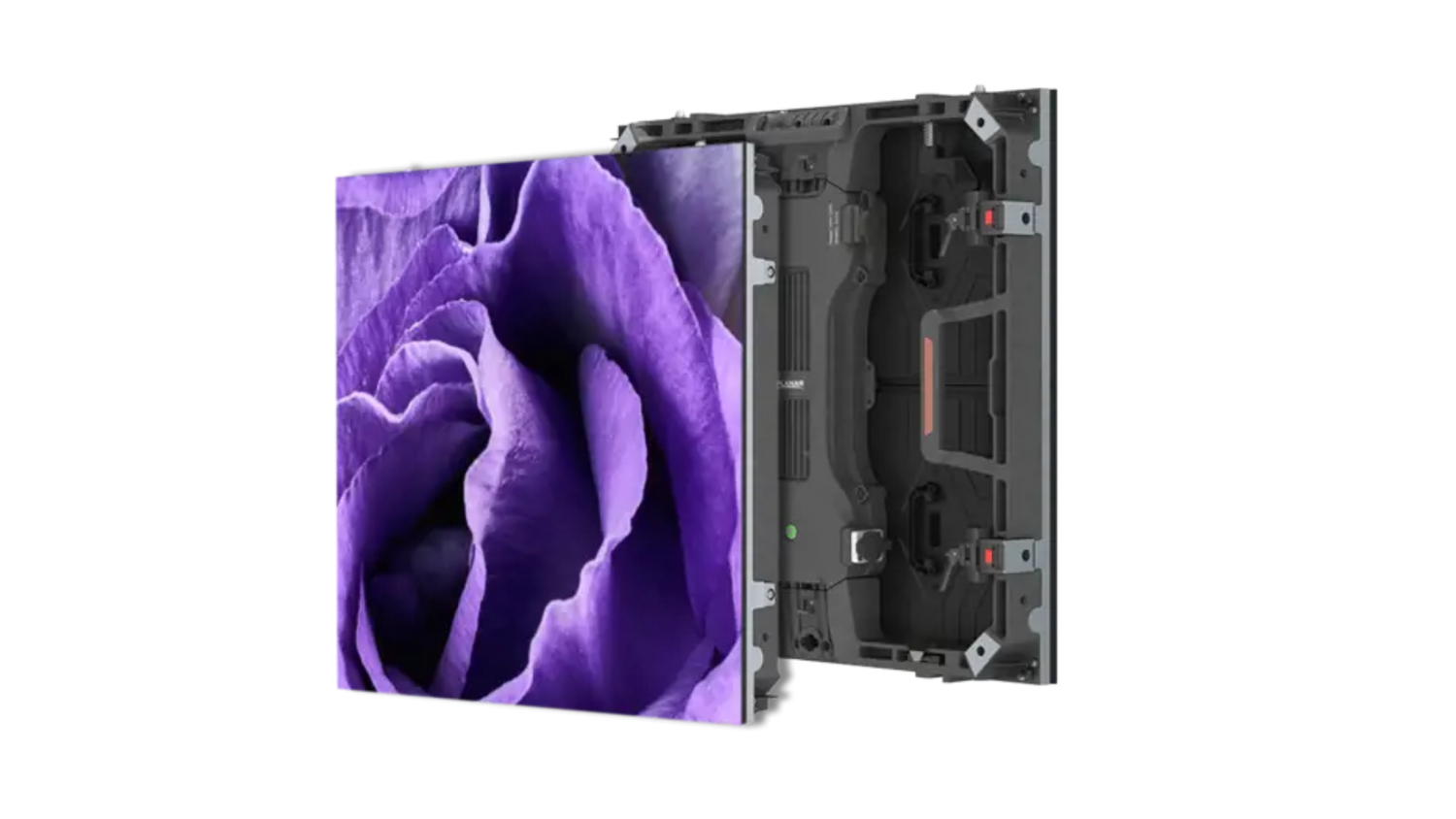

• Full front service access — Electronics are serviceable from the front, ideal for permanent stage walls.
• ColorLight i9+ receiver card — Integrated receiver card manages signal processing per cabinet.
• Single power supply — Indoor configuration uses one power supply per cabinet.

Typical Applications

• Broadcast studio
• Auditorium
• All-hands room
• Commercial meeting space
• House of worship

Technical Specifications

Frequently Asked Questions

What makes this a virtual production cabinet?
It pairs a fine 1.5mm pitch with a 600-nit brightness level suited to in-camera VFX and broadcast capture.

Why is brightness lower than other Venue Pro models?
Controlled brightness helps with camera exposure on set; 600 nits is appropriate for studio environments.

Can this cabinet be used outdoors?
No. This is an indoor configuration. Contact Creation Networks for outdoor alternatives.

How is the cabinet serviced?
It provides full front service access for front-side maintenance on permanent stage walls.

What receiver card is included?
The cabinet ships with a ColorLight i9+ receiver card.

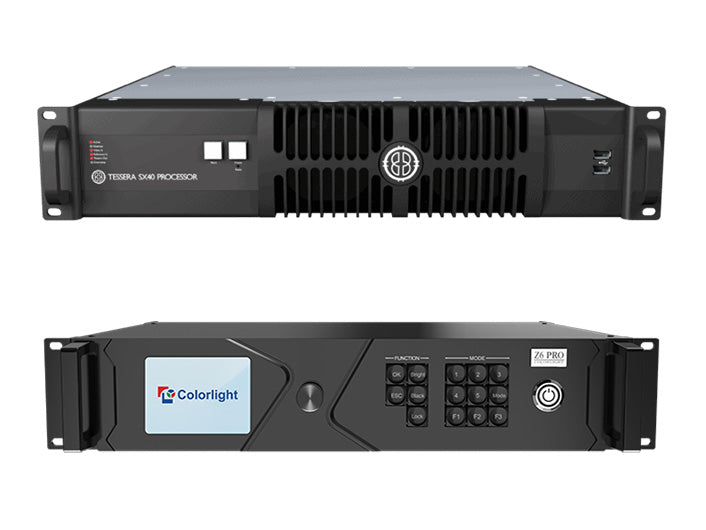

Does the price include processing and genlock?
Video processing and synchronization are configured per stage. Contact Creation Networks to confirm a complete bill of materials.
