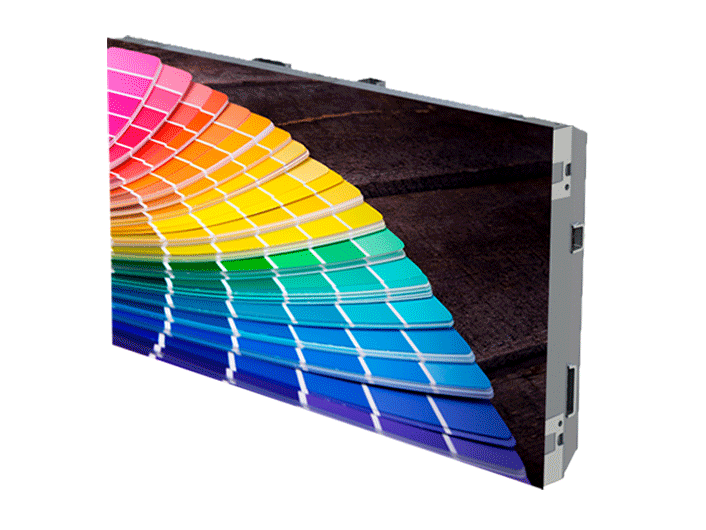

Planar Venue Pro VPI-2.5 – 2.5mm Indoor LED Cabinet

Product Overview

The Planar Venue Pro VPI-2.5 is a 2.5mm pixel pitch indoor LED video wall cabinet engineered for large venues, fixed installations, and temporary event staging. This 500mm x 500mm magnetic-attach cabinet delivers 1,000 nits of brightness for bright meeting spaces and high-ambient environments. It uses a full front-access design for single-person service and a ColorLight i9+ receiver card for reliable signal processing. SKU 998-3829-00 ships as an indoor configuration with a single power supply.

Product Description

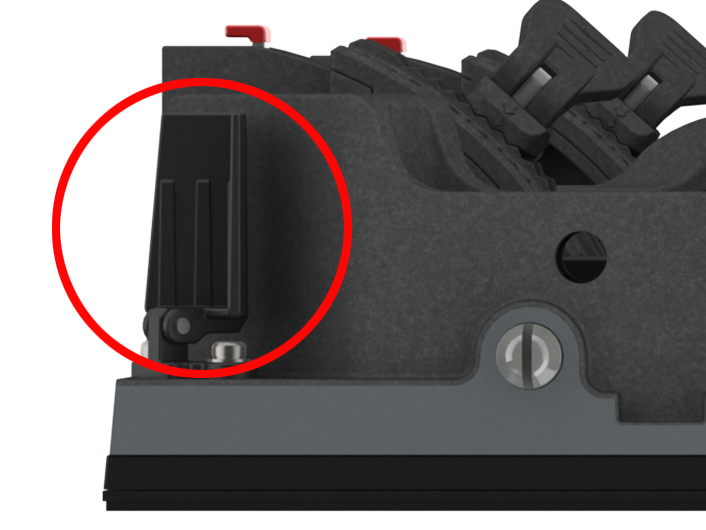

The Planar Venue Pro Series is built around standardized 500mm x 500mm cabinets that can be hung, wall-mounted, floor-mounted, or faceted to form curves, giving integrators flexible deployment paths for a single hardware platform. The VPI-2.5 model uses a 2.5mm pixel pitch, placing it well within the comfortable viewing range for boardrooms, conference rooms, and commercial meeting spaces where viewers sit at moderate distances. Cabinet-to-cabinet magnetic assistance temporarily holds adjacent cabinets in place while a single installer engages the quick-lock system to secure them, reducing labor on large arrays. Full front service access lets technicians reach electronics without rear clearance, an advantage in wall-recessed and tight-fit installations. The 1,000-nit brightness rating supports rooms with significant ambient light, including all-hands rooms and lobbies with glass exposure. The integrated ColorLight i9+ receiver card handles signal distribution across the cabinet. A single power supply per cabinet keeps the indoor configuration straightforward to wire and commission. Corner protection and a quick-lock mechanism support fast handling and repeatable alignment across multi-cabinet walls. For specifiers comparing pixel pitches, Planar offers the Venue Pro line in 1.9, 2.5, 3.9, and 5.9mm options to match viewing distance to budget. You can review the full Planar lineup on the Creation Networks Planar collection. Creation Networks supplies this cabinet as a draft commercial configuration; contact our team to confirm array sizing, mounting, and processing for your project.

Key Features

• 2.5mm pixel pitch — Fine pitch suited to boardroom and conference-room viewing distances where image detail matters.
• 500mm x 500mm cabinet — Standardized square format simplifies array layout, spares planning, and curve faceting.
• 1,000-nit brightness — Maintains visible, high-contrast images in rooms with substantial ambient light.

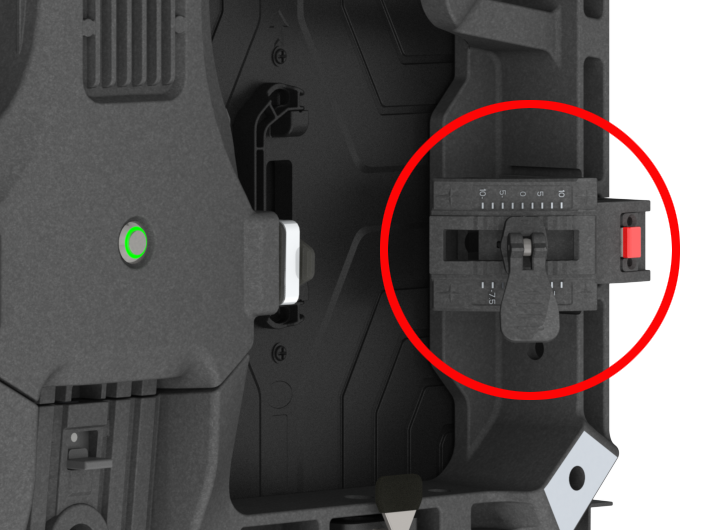

• Magnetic attach with quick-lock — Cabinet-to-cabinet magnetic assistance holds position while a single installer secures the quick-lock system.

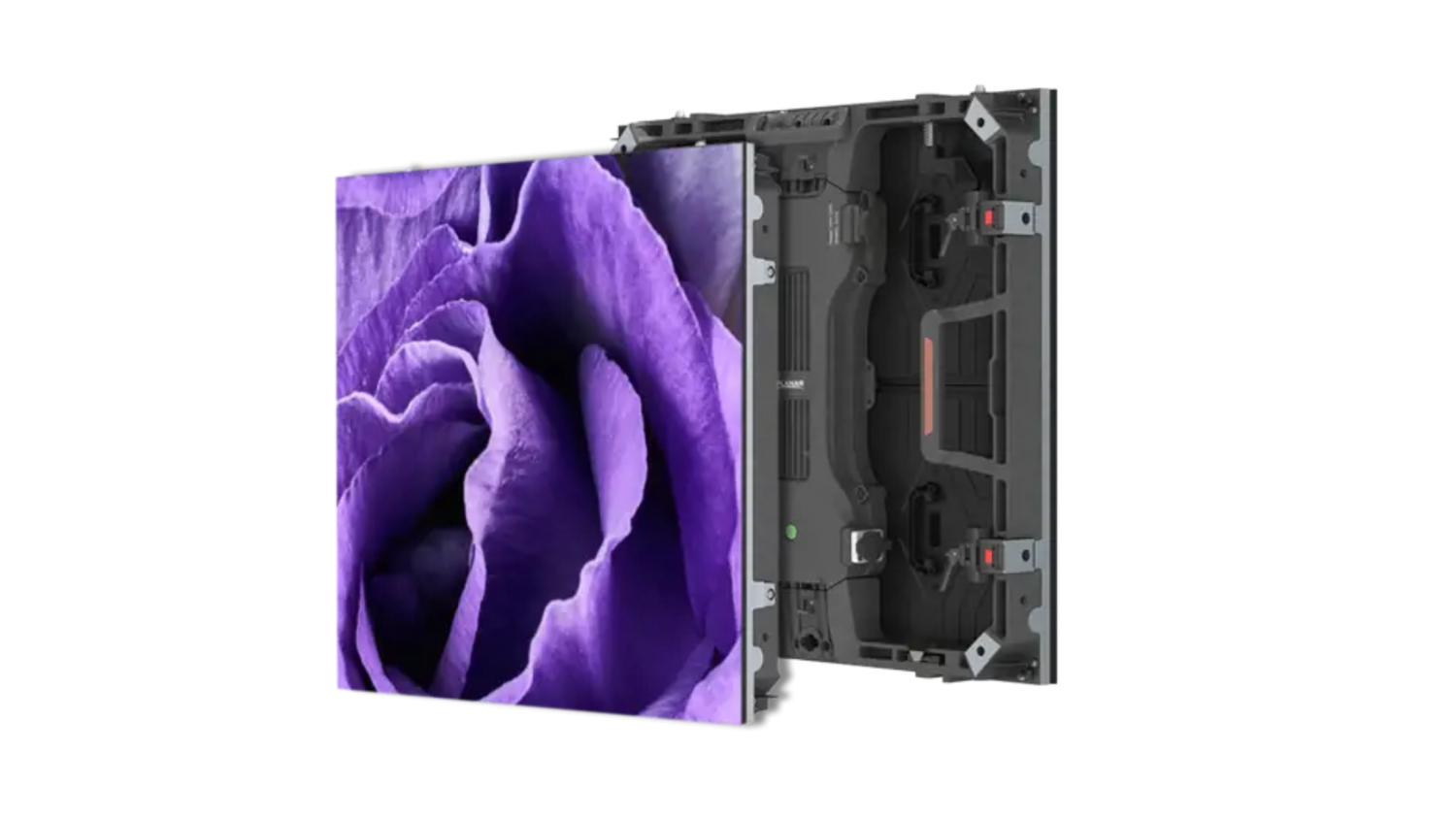

• Full front service access — Front-serviceable electronics remove the need for rear clearance in recessed installations.
• ColorLight i9+ receiver card — Integrated receiver card manages signal processing within each cabinet.
• Single power supply — Indoor configuration uses one power supply per cabinet for straightforward wiring.
• Flexible mounting — Supports hung, wall-mounted, floor-mounted, and faceted curved installations.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• All-hands room
• Auditorium
• House of worship

Technical Specifications

Frequently Asked Questions

What pixel pitch is this Venue Pro cabinet?
This cabinet uses a 2.5mm pixel pitch, suited to moderate viewing distances in conference and meeting spaces.

Can this cabinet be used outdoors?
No. This is an indoor configuration. For outdoor projects, contact Creation Networks to confirm an appropriate Planar series.

How is the cabinet serviced?
It offers full front service access, so electronics can be reached without rear clearance.

What receiver card is included?
The cabinet ships with a ColorLight i9+ receiver card.

Can the cabinets form curves?
Yes. The 500mm x 500mm cabinets can be faceted to form curves and support hung, wall, and floor mounting. Contact Creation Networks to confirm curve geometry.

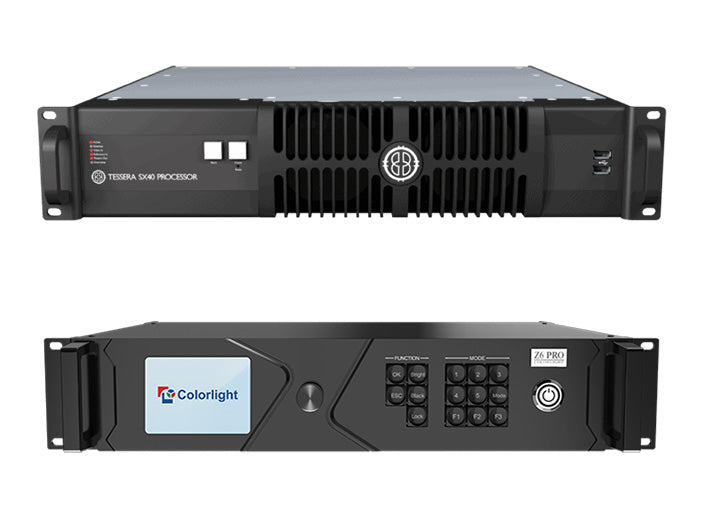

Does the price include mounting and processing?
Mounting hardware and video processing are configured per project. Contact Creation Networks to confirm a complete bill of materials.
