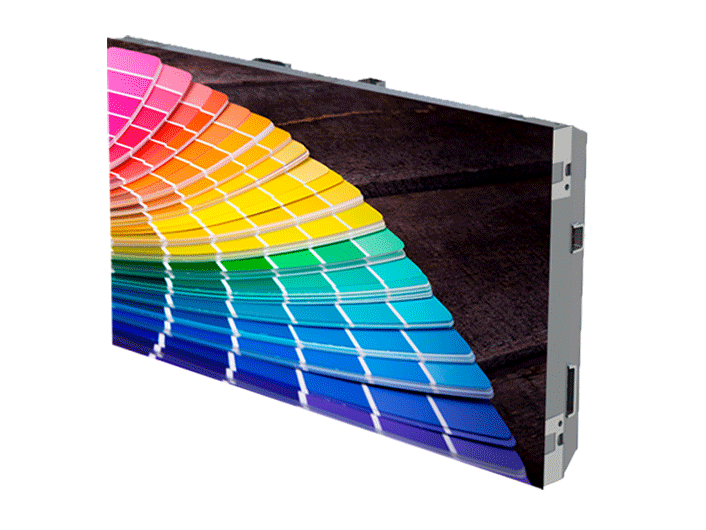

Planar Venue Pro 1.5mm – Indoor Fine Pitch LED Cabinet

Product Overview

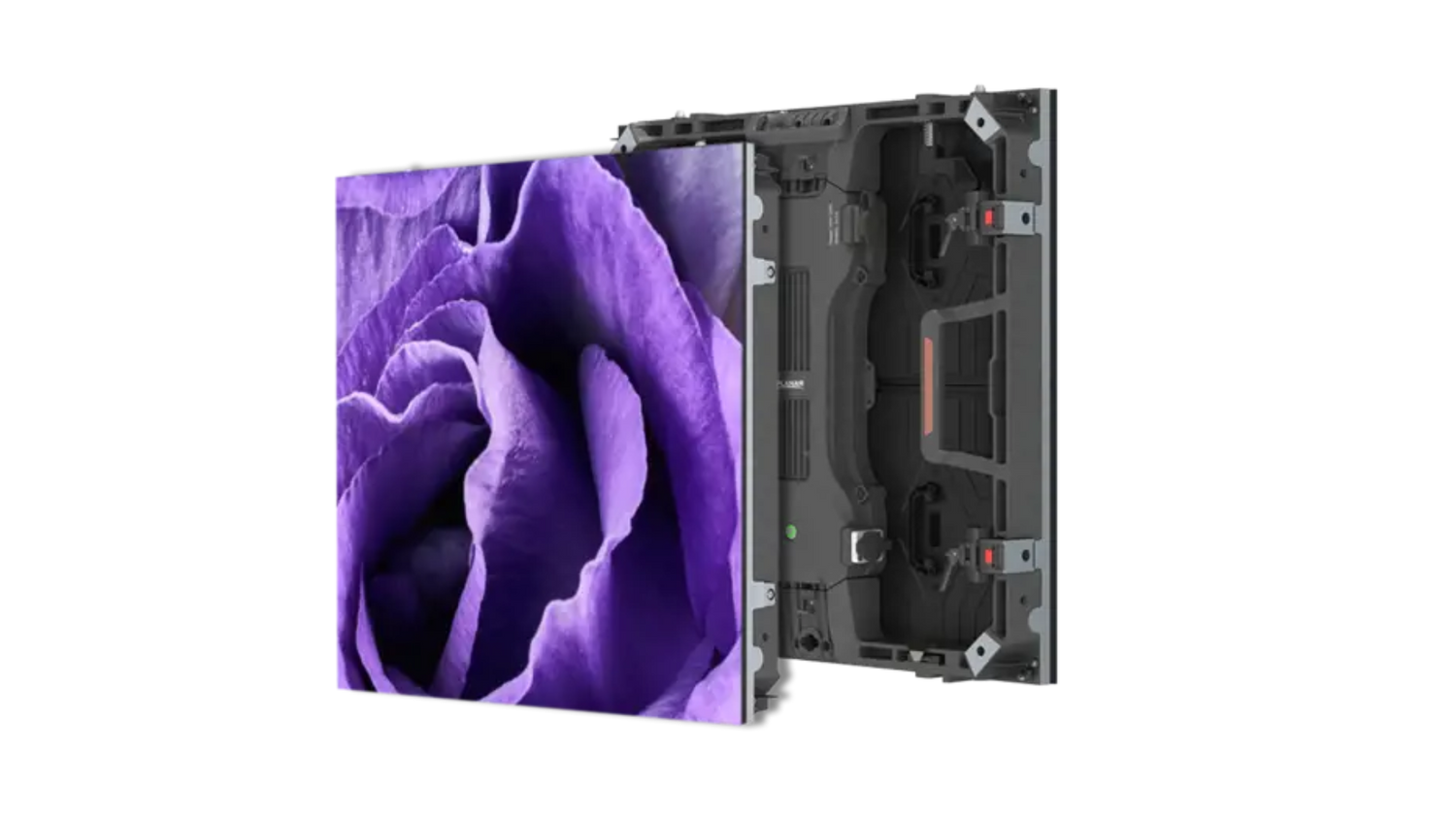

The Planar Venue Pro 1.5mm pitch indoor LED video wall cabinet is a fine-pitch building block for high-resolution indoor walls in venues, large rooms and fixed installations. This configuration is supplied with a single power supply and a ColorLight i9+ receiver card in a magnetic-attach, full front access 500mm x 500mm cabinet at 1000 nit brightness. The Venue Pro family is designed for indoor events, large venues and permanent installations. Its quick-lock system supports fast, single-person handling.

Product Description

Planar Venue Pro is an indoor LED video wall family that spans fine pixel pitches for event and fixed-install use. This 1.5mm pitch configuration is among the finer pitches in the line, suited to walls viewed at close distances where detailed text and graphics matter, such as broadcast-adjacent spaces, executive venues and high-end fixed installs. The 1000 nit brightness gives comfortable output for indoor environments, and the magnetic-attach module design with full front access lets individual modules be serviced from the front of the wall. Venue Pro cabinets feature a quick-lock system that supports fast, single-person handling, and the family supports building convex or concave curved walls through built-in curving blocks. This configuration ships with a ColorLight i9+ receiver card, integrating the cabinet into a ColorLight processing workflow, and a single power supply. The standardized 500mm x 500mm footprint simplifies array planning and content mapping. Creation Networks supplies the full Planar Venue Pro lineup along with processing and mounts; browse our Planar collection. Contact Creation Networks to confirm processor compatibility, availability and volume pricing.

Key Features

• 1.5mm fine pixel pitch — Among the finer Venue Pro pitches, suited to close-viewing high-resolution walls.
• 1000 nit brightness — Comfortable output for indoor venues and fixed installations.
• ColorLight i9+ receiver card — Integrates the cabinet into a ColorLight processing workflow.
• Magnetic-attach modules — Magnetic module mounting supports rapid removal and replacement.
• Full front access service — Modules and electronics are serviceable from the front of the wall.
• Quick-lock handling — The Venue Pro quick-lock system supports fast, single-person handling.

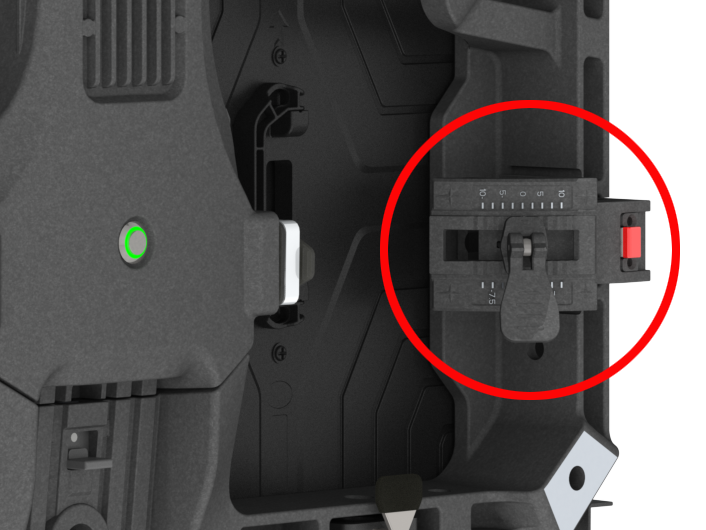

• Curved wall capability — Built-in curving blocks support convex or concave wall designs.
• 500mm x 500mm cabinet — Standardized footprint simplifies array layout and content mapping.

Typical Applications

• Large venues and auditoriums
• Indoor events and temporary installations
• Executive briefing centers and lobbies
• Broadcast-adjacent and presentation spaces
• High-resolution fixed indoor installations

Technical Specifications

Resolution, weight and power draw vary by configuration; contact Creation Networks to confirm.

Frequently Asked Questions

• Is a 1.5mm pitch good for close viewing? Yes. At 1.5mm it is among the finer Venue Pro pitches, suited to close-viewing high-resolution walls.

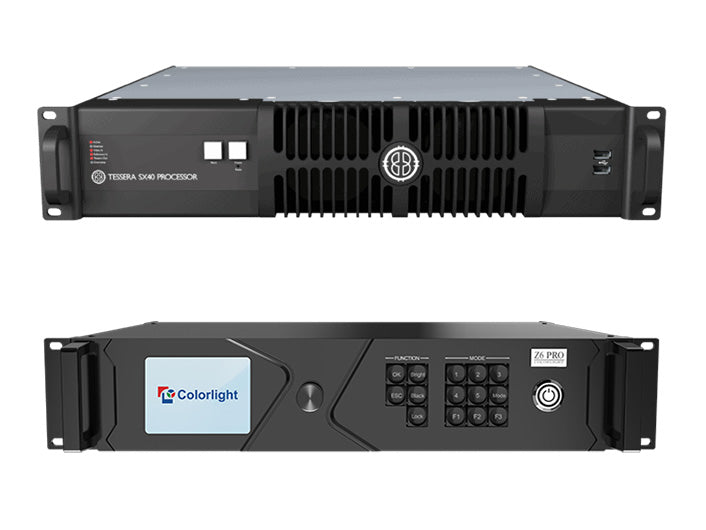

• What does the ColorLight i9+ receiver card do? It integrates the cabinet into a ColorLight processing workflow. Contact Creation Networks to confirm a compatible processor.
• Can I build a curved wall? Yes. Venue Pro cabinets include built-in curving blocks for convex or concave designs.
• Is the cabinet front serviceable? Yes. Full front access allows modules and electronics to be serviced without rear clearance.
• How is handling simplified? The Venue Pro quick-lock system supports fast, single-person cabinet handling.
• How do I get pricing and a layout? Contact Creation Networks for a quote, array design and current lead time.
