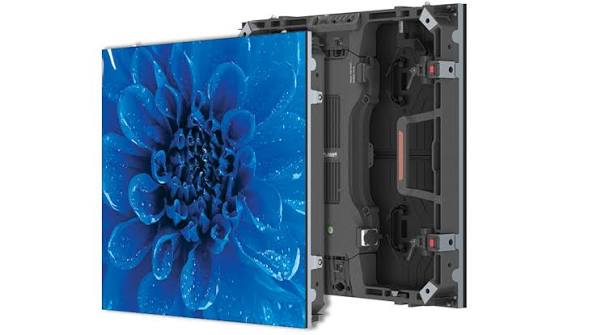

Planar Luminate Ultra W 1.6mm Outdoor LED Module

Product Overview

The Planar Luminate Ultra W Series is a fine-pitch, high-brightness outdoor LED video wall platform with a 16:9 wide aspect ratio designed for close-up outdoor viewing. This component is a 1.6mm pixel pitch LED module from that series, featuring Glue-on-Board (GOB) protection for outdoor durability. The series delivers high brightness suited to direct-sunlight environments. As a Luminate Ultra W 1.6mm outdoor LED module, it supports sports, events and outdoor signage video walls.

Product Description

This Luminate Ultra W module carries a fine 1.6mm pixel pitch and is built for outdoor applications where image detail and weather resistance both matter. The Luminate Ultra W Series is offered in 1.3, 1.6 and 2.0mm pixel pitches that can be configured to match Full HD and Ultra HD resolutions, and its 16:9 wide aspect ratio supports standard-resolution layouts in a fine-pitch outdoor display. Front-service ruggedization is provided through waterproof Glue-on-Board (GOB) technology, which adds durability, resists harsh weather and produces a surface that is easy to clean and keeps the display looking consistent over time. The series carries an IP65 ingress protection rating, meaning it is dust-tight and protected against powerful water jets, making it viable in demanding outdoor weather. High brightness up to 3,000 nits keeps content readable in direct sunlight, and the fine pixel pitch supports comfortable viewing from as close as 8 feet, which suits close-up outdoor media applications. This module is a component intended for integration into a Luminate Ultra W cabinet system. It is part of the Planar LED portfolio carried by Creation Networks; explore related video wall products on our Planar collection. For the specific cabinet compatibility, per-module brightness and power figures tied to this SKU, contact Creation Networks to confirm.

Key Features

• 1.6mm fine pixel pitch — The module supports detailed, close-up outdoor viewing from as near as 8 feet.
• GOB surface protection — Waterproof Glue-on-Board technology adds durability and an easy-to-clean surface.
• IP65 weather resistance — The series is dust-tight and protected against powerful water jets for outdoor use.
• High brightness — Brightness up to 3,000 nits keeps content readable in direct sunlight.
• 16:9 wide aspect ratio — The series supports standard Full HD and Ultra HD layouts in fine-pitch outdoor format.
• Front service — Front-service ruggedization simplifies maintenance in tight or wall-mounted outdoor positions.
• Series pitch options — Luminate Ultra W is available in 1.3, 1.6 and 2.0mm pixel pitches.

Typical Applications

• Outdoor sports venues and stadiums
• Concerts, festivals and outdoor events
• Outdoor digital signage and DOOH
• Building entrances and architectural outdoor displays

Technical Specifications

Frequently Asked Questions

What is this part?
This is a 1.6mm pixel pitch outdoor LED module for the Planar Luminate Ultra W Series video wall system.

Is it suitable for outdoor use?
Yes. The Luminate Ultra W Series carries an IP65 rating and waterproof GOB protection for outdoor environments.

How bright is it?
The series delivers brightness up to 3,000 nits, keeping content readable in direct sunlight.

What does GOB protection do?
Waterproof Glue-on-Board encapsulation adds durability and creates an easy-to-clean, weather-resistant surface.

How close can viewers stand?
The fine 1.6mm pitch supports comfortable viewing from as close as 8 feet.

Which cabinet does this module fit?
This module integrates into Luminate Ultra W cabinets; contact Creation Networks to confirm exact compatibility for your system.
