Planar Leyard LA Series 6.0mm Outdoor LED Cabinet – 3x2 Module

Product Overview

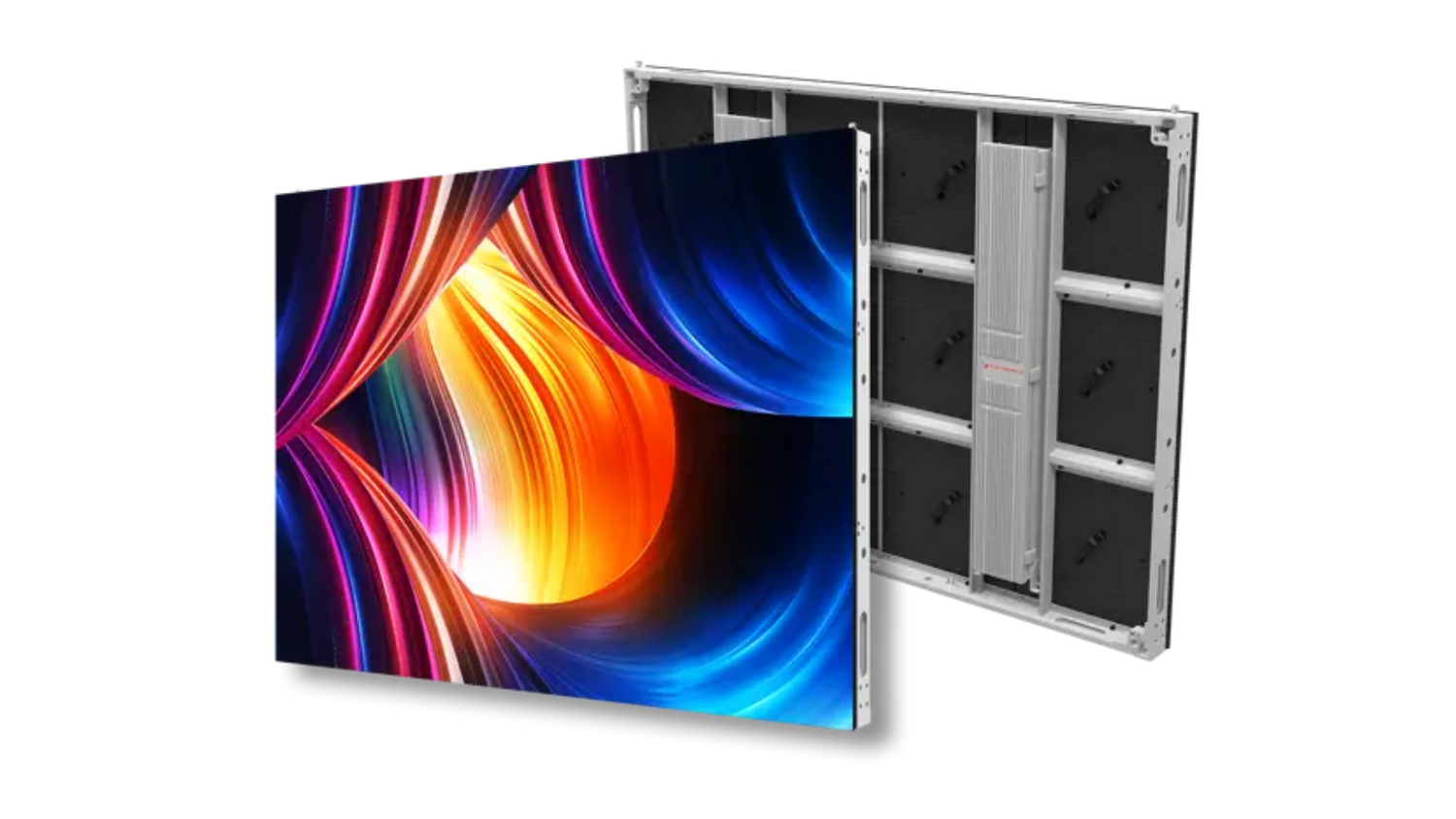

The Planar Leyard LA Series 6.0mm outdoor LED cabinet is a fixed-installation display module engineered for permanent exterior digital signage. This cabinet measures 960x640mm with a native resolution of 144x96 pixels and a 3x2 LED module configuration. Built on a lightweight, high-strength aluminum frame with an IP65 ingress protection rating, it is designed to withstand harsh weather and sustained outdoor operation. It serves integrators specifying large-format outdoor LED video walls for advertising, civic, and venue environments.

Product Description

The Leyard LA Series is Planar's outdoor fixed-installation LED platform, purpose-built for displays exposed to weather, direct sunlight, and continuous duty cycles. This particular cabinet uses a 6.0mm pixel pitch across a 960x640mm panel, delivering a 144x96 pixel canvas per cabinet that tiles into larger outdoor video walls. The aluminum cabinet construction keeps installed weight low while maintaining the rigidity required to hold tight module alignment across a multi-cabinet array. With an IP65 rating on both the cabinet and the LED modules, the display resists dust ingress and water spray from any direction, making it suitable for unsheltered building facades, billboards, and stadium perimeters. The LA Series supports fully front or rear service access, allowing technicians to perform maintenance from whichever side the installation site permits. High-brightness outdoor LED modules maintain image visibility in direct daylight, a core requirement for digital out-of-home advertising and wayfinding. Integrators sizing an outdoor LED wall can combine multiples of this 3x2 cabinet to reach the target pixel count and physical dimensions for a given site. For brightness ratings, scan configuration, and power draw specific to this SKU, contact Creation Networks to confirm. Explore the full Planar LED and video wall lineup in our Planar collection. The LA Series carries Planar's standard outdoor LED warranty coverage.

Key Features

• Outdoor IP65 rating — Both the cabinet and LED modules are sealed against dust and water ingress for reliable operation in unsheltered exterior installations.
• Aluminum cabinet construction — The lightweight, high-strength aluminum frame reduces installed load while holding module alignment across tiled arrays.
• 6.0mm pixel pitch — This pitch is matched to medium and long viewing distances typical of outdoor signage and venue displays.
• 960x640mm cabinet — Each cabinet delivers a 144x96 pixel canvas in a 3x2 LED module layout for predictable tiling math.
• Front and rear serviceability — Technicians can access modules from either side, accommodating sites with limited rear clearance.
• Weather-resistant design — The heat-resistant cabinet is built to endure extreme temperatures and sustained outdoor duty cycles.

Typical Applications

• Digital out-of-home (DOOH) advertising and billboards
• Building facade and architectural displays
• Stadium and sports venue perimeter signage
• Outdoor wayfinding and civic information displays
• Transportation hubs and exterior commercial signage

Technical Specifications

Frequently Asked Questions

Is this cabinet rated for outdoor use? Yes. The Leyard LA Series is an outdoor fixed-installation platform with an IP65 rating on both the cabinet and the LED modules, protecting against dust and water ingress.

What is the resolution of a single cabinet? Each 960x640mm cabinet provides a native resolution of 144x96 pixels using a 3x2 LED module configuration.

How many cabinets do I need for my wall? Total cabinet count depends on the target physical size and resolution of your video wall. Contact Creation Networks to confirm a layout for your site.

Can it be serviced from the front? Yes. The LA Series supports both front and rear service access, which is useful when rear clearance is limited.

What controller or processing is required? Outdoor LED walls require a compatible LED video controller and signal distribution. Contact Creation Networks to confirm the right processing for your configuration.
