Planar Leyard LA Series – 6.0mm Outdoor LED Cabinet

Product Overview

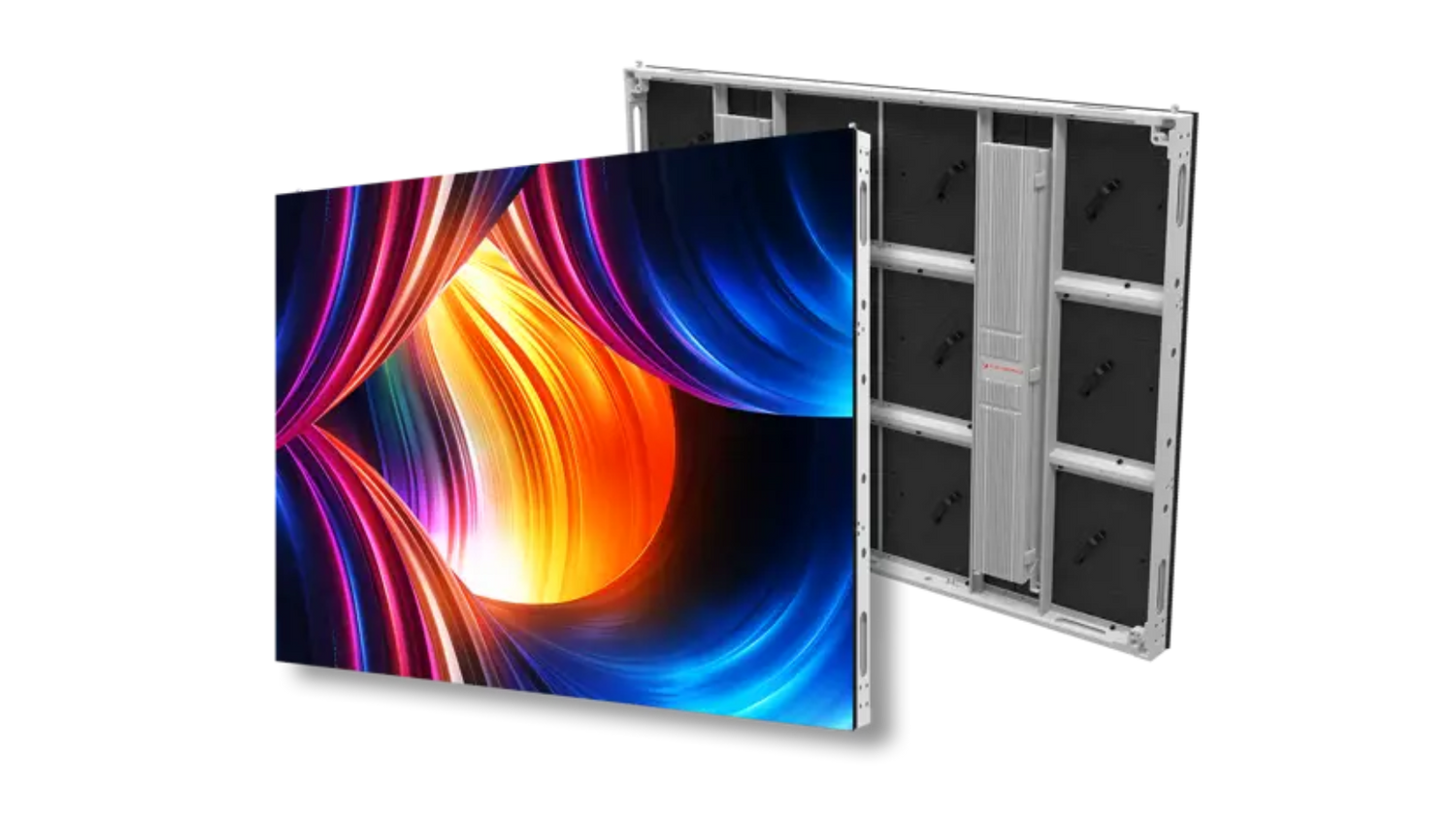

The Planar Leyard LA Series 6.0mm outdoor LED cabinet is a fixed-installation video wall panel for permanent outdoor display projects. This configuration uses a 1280x960mm cabinet with a 192x144 pixel resolution and a 4x3 LED module array. The LA Series features lightweight, high-strength aluminum construction with a heat-resistant design and an IP65 ingress protection rating on both cabinets and modules. The 6.0mm pixel pitch suits larger viewing distances typical of billboards and facade signage.

Product Description

The Leyard LA Series is Planar's outdoor fixed-installation LED platform, engineered to withstand harsh weather and extreme temperatures while staying readable in direct sunlight. This 6.0mm pixel pitch cabinet measures 1280x960mm and delivers a 192x144 pixel resolution from a 4x3 array of LED modules. The wider 6.0mm pitch is well matched to longer viewing distances, where it provides an efficient balance of resolution and coverage area for large outdoor canvases. The aluminum chassis keeps cabinet weight manageable for structural mounting, and the IP65 rating on both cabinets and modules supports resistance to water and dust in exposed installations. The LA Series supports fully front or rear service maintenance so technicians can access modules and power components based on available clearance at the site. High brightness across the LA family supports readability under bright ambient conditions. This cabinet is one tile in a larger video wall; total panel count, processing, mounting structure, and power distribution are defined by the overall wall design. For organizations planning outdoor LED projects, related Planar cabinets and infrastructure can be reviewed through the Planar collection at Creation Networks. Brightness, power draw, and weight for this configuration follow the LA Series specifications. For exact per-cabinet specifications and a complete wall design, contact Creation Networks to confirm.

Key Features

• 6.0mm Pixel Pitch — Outdoor pixel pitch suited to longer-distance viewing for billboards and facades.
• 1280x960mm Cabinet — Cabinet with 192x144 pixel resolution built from a 4x3 LED module array.
• IP65 Protection — Both cabinets and modules carry an IP65 ingress protection rating for outdoor durability.
• Aluminum Construction — Lightweight, high-strength aluminum design with heat-resistant characteristics.
• Front or Rear Service — Supports fully front or rear service maintenance to suit site access.
• High Brightness — The LA Series delivers high brightness for readability in direct sunlight.

Typical Applications

• Digital out-of-home (DOOH) advertising displays
• Outdoor billboards and roadside signage
• Building facades and architectural displays
• Stadiums and outdoor sports venues
• Transportation hubs and outdoor public spaces

Technical Specifications

Frequently Asked Questions

Is this cabinet rated for outdoor use?
Yes. The Leyard LA Series is an outdoor fixed-installation platform with an IP65 rating on both cabinets and modules.

What is the pixel pitch and resolution?
This configuration has a 6.0mm pixel pitch with 192x144 pixels per 1280x960mm cabinet.

How is it serviced?
The LA Series supports fully front or rear service maintenance depending on installation access.

What viewing distance suits 6.0mm pitch?
The 6.0mm pitch is well matched to longer viewing distances common in billboard and facade applications.

How many cabinets do I need?
Cabinet count depends on your target wall size and resolution. Contact Creation Networks to confirm a full design.
