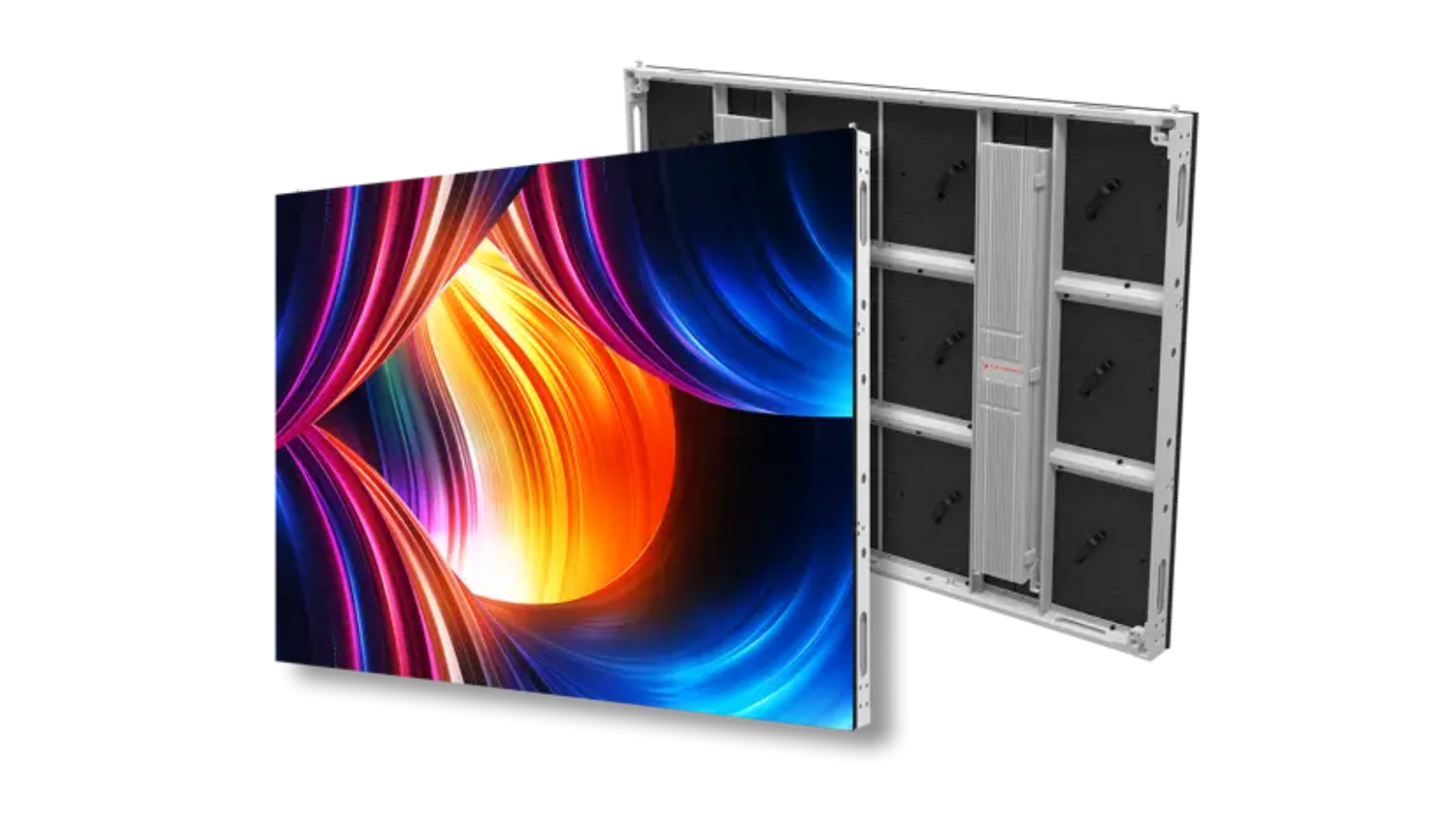

Planar Leyard LA Series 6.0mm Outdoor LED Cabinet

Product Overview

The Planar Leyard LA Series is an outdoor fixed-installation LED video wall built for permanent exterior signage and high-ambient environments. This cabinet uses a 6.0mm pixel pitch in a 1280x640mm format with a 192x96 resolution and a 4x2 LED module configuration. Its IP65-rated, high-strength aluminum construction is engineered to withstand weather, moisture, and temperature extremes. The Leyard LA Series 6.0mm outdoor LED cabinet is a strong fit for DOOH advertising, building facades, and sports venues.

Product Description

The Planar Leyard LA Series 6.0mm outdoor LED display cabinet is designed for integrators specifying durable, serviceable digital signage for exterior applications. The lightweight, thin aluminum chassis reduces structural load while maintaining the rigidity required for large-format outdoor video walls. Both the cabinet and the individual LED modules carry an IP65 ingress protection rating, making them dust-tight and resistant to water jets in demanding outdoor conditions. The heat-resistant design supports continuous operation across a wide temperature range typical of permanent outdoor signage. This 1280x640mm cabinet ships in a 4x2 module array, providing a 192x96 native resolution per cabinet for tiling into larger outdoor LED video walls. Fully front or rear service access simplifies ongoing maintenance, allowing technicians to reach power and signal components without dismounting the cabinet. The 6.0mm pixel pitch balances resolution and viewing distance for billboards, transit displays, and stadium signage where audiences view content from several meters away. Planar backs the Leyard LA Series with a 2-year standard warranty. Integrators evaluating this cabinet for a structured outdoor deployment can review the broader range on the Planar collection at Creation Networks. Because per-SKU brightness and power figures vary by configuration, contact Creation Networks to confirm exact specifications for your project.

Key Features

• 6.0mm pixel pitch — Delivers balanced outdoor resolution at typical billboard and facade viewing distances.
• IP65 ingress protection — Cabinet and modules are dust-tight and protected against water jets for reliable outdoor operation.
• High-strength aluminum construction — Lightweight, thin, and heat-resistant chassis reduces structural load while withstanding weather extremes.
• 1280x640mm cabinet, 192x96 resolution — Built with a 4x2 LED module array for flexible outdoor video wall tiling.
• Front and rear service access — Maintenance can be performed from either side without dismounting the cabinet.
• 2-year standard warranty — Backed by Planar warranty coverage for fixed outdoor installations.

Typical Applications

• Outdoor digital out-of-home (DOOH) advertising and billboards
• Building facades and architectural exterior signage
• Stadiums, arenas, and outdoor sports venues
• Transit hubs and exterior wayfinding

Technical Specifications

Frequently Asked Questions

Is the Planar Leyard LA Series rated for outdoor use?
Yes. Both the cabinets and modules carry an IP65 ingress protection rating and a heat-resistant aluminum design built to withstand weather and temperature extremes.

What is the resolution of this cabinet?
This 1280x640mm cabinet provides a 192x96 native resolution using a 4x2 LED module configuration.

Can the display be serviced without removing it from the wall?
Yes. The Leyard LA Series supports fully front or rear service maintenance, so components can be accessed in place.

What applications is the 6.0mm pixel pitch suited for?
The 6.0mm pitch is well matched to outdoor billboards, building facades, transit displays, and sports venues viewed from several meters or more.

What warranty does this product include?
The Leyard LA Series is covered by Planar's 2-year standard warranty. Contact Creation Networks to confirm coverage details for your deployment.

Can multiple cabinets be tiled into a larger video wall?
Yes. The modular 1280x640mm cabinet is designed to tile into larger outdoor LED video walls. Contact Creation Networks to confirm the configuration for your dimensions.
