Planar Leyard LA Series – 4.0mm Outdoor LED Cabinet
Product Overview

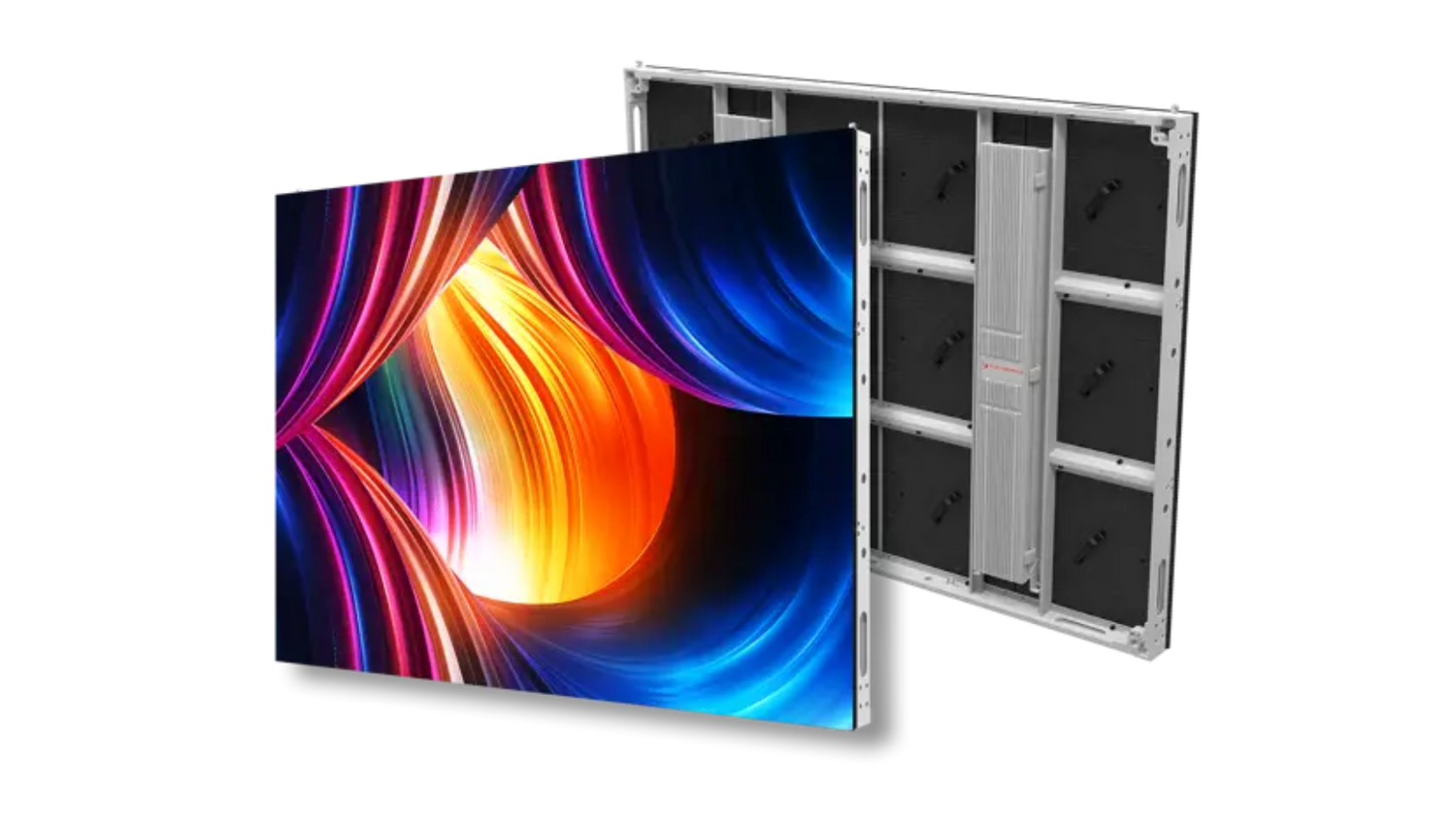

The Planar Leyard LA Series 4.0mm outdoor LED cabinet is a fixed-installation video wall panel built for permanent outdoor display applications. This configuration uses a 960x960mm cabinet with a 216x216 pixel resolution and a 3x3 LED module array. The LA Series features lightweight, high-strength aluminum construction with a heat-resistant design and an IP65 ingress protection rating on both cabinets and modules. It is intended for environments that demand weather resistance and high brightness, such as digital out-of-home advertising and building facades.
Product Description
The Leyard LA Series is Planar's outdoor fixed-installation LED platform, engineered to withstand harsh weather and extreme temperatures while maintaining image performance in direct sunlight. This 4.0mm pixel pitch cabinet measures 960x960mm and delivers a 216x216 pixel resolution per cabinet, built from a 3x3 array of LED modules. The square cabinet geometry simplifies layout planning for large outdoor canvases, and the aluminum chassis keeps weight manageable for structural mounting. With an IP65 rating on both cabinets and modules, the panels are designed to resist water and dust in exposed installations. The LA Series supports fully front or rear service maintenance, which helps technicians access modules and power components based on the available service clearance at a given site. High brightness across the LA family supports readability in bright ambient conditions typical of outdoor signage. This cabinet is one tile in a larger video wall; the total panel count, processing, mounting structure, and power distribution are determined by the overall wall design. For organizations planning outdoor LED projects, related Planar cabinets and infrastructure can be reviewed through the Planar collection at Creation Networks. Brightness, power draw, and weight values for this specific configuration follow the LA Series specifications. For exact per-cabinet specifications and a complete wall design, contact Creation Networks to confirm.
Key Features
- 4.0mm Pixel Pitch — Outdoor pixel pitch suited to medium-distance viewing in DOOH and facade applications.
- 960x960mm Cabinet — Square cabinet with 216x216 pixel resolution and a 3x3 LED module array for straightforward layout planning.
- IP65 Protection — Both cabinets and modules carry an IP65 ingress protection rating for outdoor durability.
- Aluminum Construction — Lightweight, high-strength aluminum design with heat-resistant characteristics for harsh conditions.
- Front or Rear Service — Supports fully front or rear service maintenance to suit site access constraints.
- High Brightness — The LA Series delivers high brightness for readability in direct sunlight.
Typical Applications
- Digital out-of-home (DOOH) advertising displays
- Outdoor billboards and roadside signage
- Building facades and architectural displays
- Stadiums and outdoor sports venues
- Transportation hubs and outdoor public spaces
Technical Specifications
| Series | Leyard LA Series (Outdoor) |
| Pixel Pitch | 4.0mm |
| Cabinet Size | 960 x 960mm |
| Resolution | 216 x 216 pixels per cabinet |
| Module Array | 3 x 3 LED modules |
| Protection Rating | IP65 (cabinet and module) |
| Construction | High-strength aluminum |
| Service Access | Front or rear service |
| SKU | 998-3869-00 |
| Brightness / Power / Weight | Per LA Series spec — contact Creation Networks to confirm |
Frequently Asked Questions
Is this cabinet rated for outdoor use?
Yes. The Leyard LA Series is an outdoor fixed-installation platform with an IP65 rating on both cabinets and modules.
What is the pixel pitch and resolution?
This configuration has a 4.0mm pixel pitch with 216x216 pixels per 960x960mm cabinet.
How is it serviced?
The LA Series supports fully front or rear service maintenance depending on installation access.
Can it handle direct sunlight?
Yes. The LA Series provides high brightness designed for readability in bright outdoor conditions.
How many cabinets do I need?
Cabinet count depends on your target wall size and resolution. Contact Creation Networks to confirm a full design.
