Leyard LA Series 4.0mm Outdoor LED Cabinet – 2x2

Product Overview

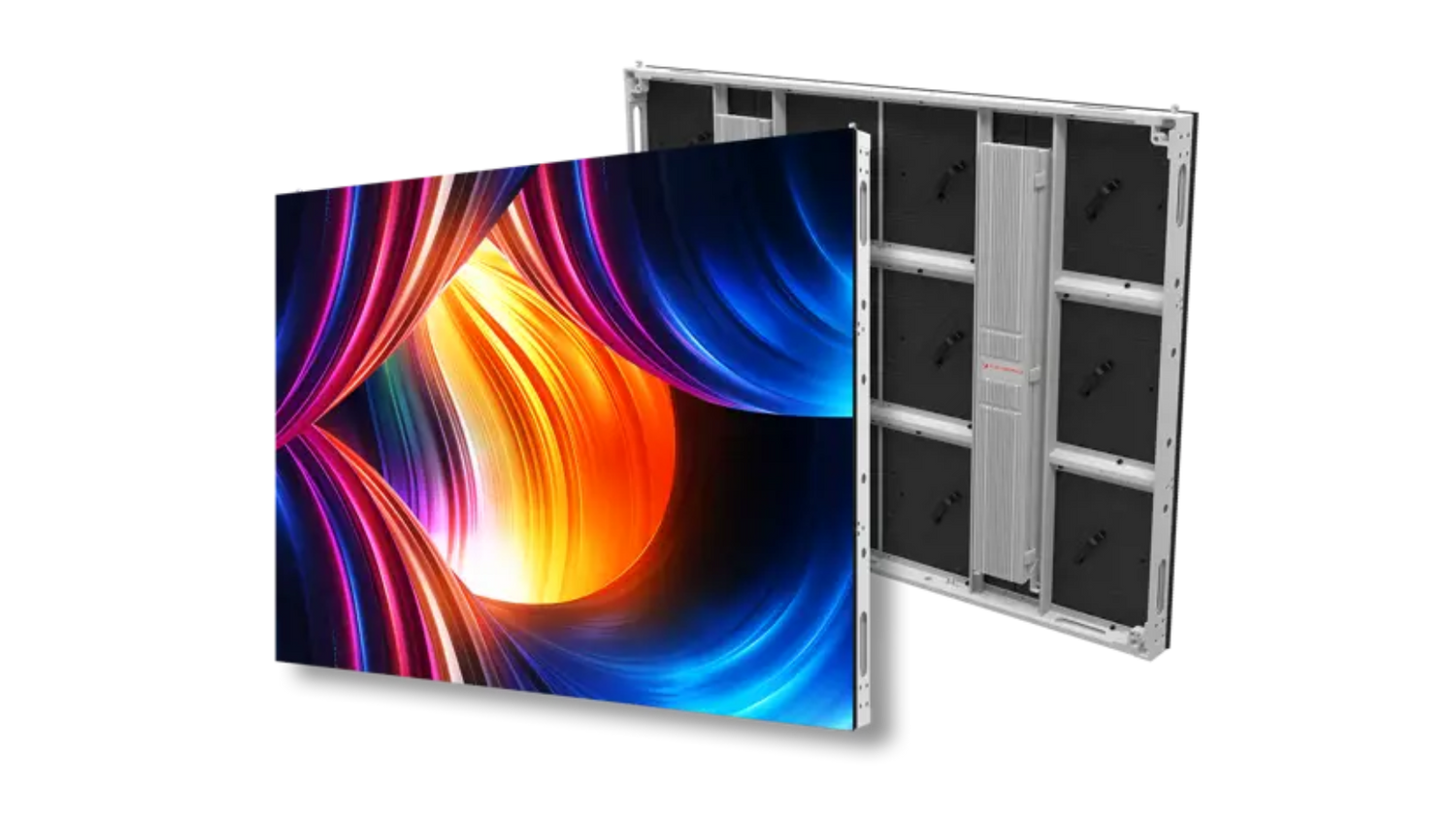

The Leyard LA Series 4.0mm outdoor LED cabinet is a fixed-installation display module engineered for permanent exterior digital signage. This cabinet measures 640x640mm with a native resolution of 144x144 pixels in a 2x2 LED module configuration. Built on a lightweight, high-strength aluminum frame with an IP65 ingress protection rating, it is designed to withstand harsh weather and extreme temperatures. It serves integrators specifying large-format outdoor LED video walls for advertising, civic, and venue environments.

Product Description

The Leyard LA Series is Planar's outdoor fixed-installation LED platform, purpose-built for displays exposed to weather, direct sunlight, and continuous duty cycles. This cabinet uses a 4.0mm pixel pitch across a 640x640mm panel, delivering a 144x144 pixel canvas per cabinet that tiles into larger outdoor video walls. The aluminum cabinet construction keeps installed weight low while maintaining the rigidity required to hold tight module alignment across a multi-cabinet array. Both the cabinet and the LED modules are waterproof with an IP65 rating, resisting dust ingress and water from any direction, which makes the display suitable for unsheltered building facades, billboards, and stadium perimeters. The heat-resistant design withstands extreme temperatures and the demands of sustained outdoor operation. The LA Series supports fully front or rear service access, letting technicians maintain the wall from whichever side the installation site permits. High-brightness outdoor modules keep content legible in daylight, a core requirement for digital out-of-home advertising and wayfinding. Integrators sizing an outdoor wall can combine multiples of this 2x2 cabinet to reach the target pixel count and physical dimensions for a site. Browse the full Planar and Leyard LED lineup in our Planar collection. For brightness, scan configuration, and power draw specific to this SKU, contact Creation Networks to confirm.

Key Features

• Outdoor IP65 rating — Both the cabinet and LED modules are sealed against dust and water ingress for unsheltered exterior installations.
• Aluminum cabinet construction — The lightweight, high-strength aluminum frame reduces installed load while holding module alignment across tiled arrays.
• 4.0mm pixel pitch — Matched to medium and long viewing distances typical of outdoor signage and venue displays.
• 640x640mm cabinet — Each cabinet delivers a 144x144 pixel canvas in a 2x2 LED module layout for predictable tiling.
• Front and rear serviceability — Technicians can access modules from either side, accommodating sites with limited rear clearance.
• Heat-resistant weatherproof design — Built to endure extreme temperatures and sustained outdoor duty cycles.

Typical Applications

• Digital out-of-home (DOOH) advertising and billboards
• Building facade and architectural displays
• Stadium and sports venue perimeter signage
• Outdoor wayfinding and civic information displays
• Transportation hubs and exterior commercial signage

Technical Specifications

Frequently Asked Questions

Is this cabinet rated for outdoor use? Yes. The Leyard LA Series is an outdoor fixed-installation platform with an IP65 rating on both the cabinet and the LED modules.

What is the resolution of a single cabinet? Each 640x640mm cabinet provides a native resolution of 144x144 pixels in a 2x2 LED module configuration.

How many cabinets do I need? Total cabinet count depends on the target physical size and resolution of your wall. Contact Creation Networks to confirm a layout for your site.

Can it be serviced from the front? Yes. The LA Series supports both front and rear service access, useful when rear clearance is limited.

What controller is required? Outdoor LED walls require a compatible LED video controller and signal distribution. Contact Creation Networks to confirm the right processing.
