Planar Leyard LA Series – Outdoor LED Cabinet 4.0mm

Product Overview

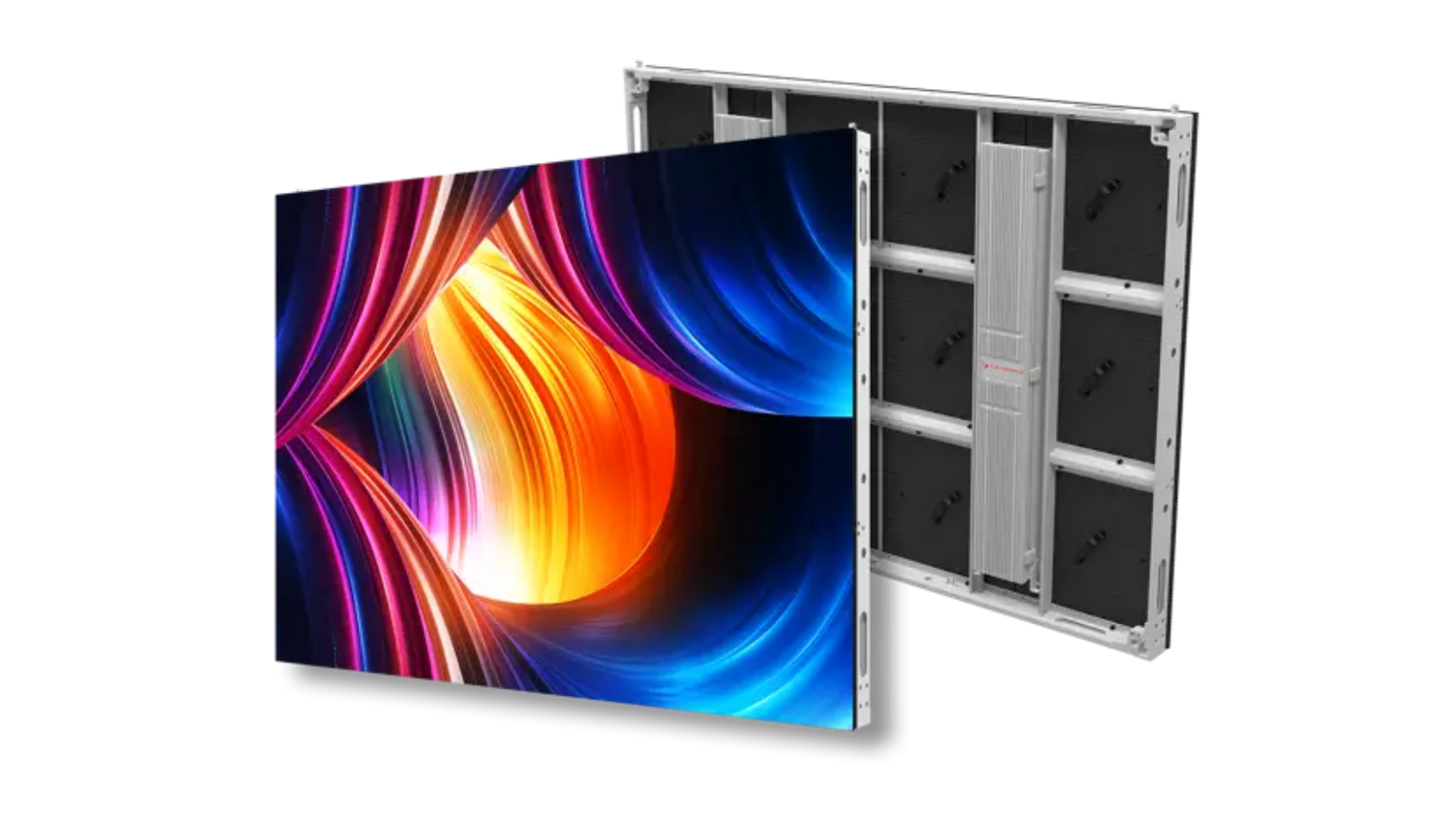

The Planar Leyard LA Series is an outdoor fixed-installation LED video wall cabinet built for permanent deployment in harsh weather and high ambient light. This cabinet features a 4.0mm pixel pitch, a 1280x960mm cabinet footprint, 288x216 pixel resolution, and a 4x3 LED module configuration. Lightweight high-strength aluminum construction and an IP65 ingress protection rating allow reliable operation across extreme temperatures and outdoor conditions. It is engineered for DOOH advertising, billboards, building facades, and sports venues where durability and serviceability matter.

Product Description

The Leyard LA Series outdoor LED cabinet combines a thin, high-strength aluminum chassis with a heat-resistant design that withstands sustained exposure to sun, rain, and temperature swings. Both the cabinet and its LED modules carry an IP65 rating, providing protection against dust ingress and water from any direction for true outdoor fixed installation. This unit is configured with a 4.0mm pixel pitch and a 1280x960mm cabinet size, delivering 288x216 pixels per cabinet across a 4x3 module layout. The modular construction supports front or rear service access, which simplifies maintenance in installations where rear access is limited. High brightness output makes content legible in direct sunlight, a key requirement for outdoor advertising and venue signage. The lightweight aluminum design reduces structural load and eases handling during installation of large video wall arrays. The LA Series is covered by Planar's 2-Year Standard LED Warranty. For array sizing, power and data planning, and processing recommendations, explore the full Planar collection at Creation Networks. Our team can confirm cabinet count, redundancy options, and mounting hardware for your site.

Key Features

• 4.0mm pixel pitch — Delivers detailed imagery suited to medium-distance outdoor viewing in advertising and venue applications.
• IP65 ingress protection — Cabinet and modules are rated against dust and water for permanent outdoor installation.
• Lightweight aluminum construction — High-strength, thin chassis reduces structural load and simplifies handling.
• Heat-resistant design — Built to withstand extreme temperatures and sustained outdoor exposure.
• Front or rear service access — Modular maintenance supports installations with limited rear clearance.
• High brightness output — Maintains content legibility in direct sunlight for DOOH and outdoor signage.
• 4x3 module configuration — 1280x960mm cabinet with 288x216 pixel resolution for consistent array tiling.
• 2-Year Standard LED Warranty — Backed by Planar's standard LED video wall warranty coverage.

Typical Applications

• DOOH advertising and billboards
• Building facade and architectural displays
• Stadium and sports venue signage
• Outdoor retail and commercial signage
• Transportation hubs and wayfinding
• Civic and public space displays

Technical Specifications

Brightness rating, power draw, and weight vary by configuration and array design; contact Creation Networks to confirm.

Frequently Asked Questions

Is this cabinet rated for permanent outdoor use? Yes. Both the cabinet and modules carry an IP65 rating and a heat-resistant aluminum design for outdoor fixed installation.

What is the pixel pitch of this unit? This cabinet is configured with a 4.0mm pixel pitch, suited to medium-distance outdoor viewing.

Can it be serviced from the front? Yes. The LA Series supports both front and rear service access for flexible maintenance.

How many cabinets do I need for my wall? Cabinet count depends on target dimensions and resolution; contact Creation Networks for array sizing assistance.

What warranty is included? The LA Series is covered by Planar's 2-Year Standard LED Warranty.

Does the cabinet include a video processor? Processing is specified separately based on the array. Contact Creation Networks to confirm the processing and power configuration for SKU 998-3867-00.
