Planar Leyard CDI 2.9mm Indoor LED Cabinet

Product Overview

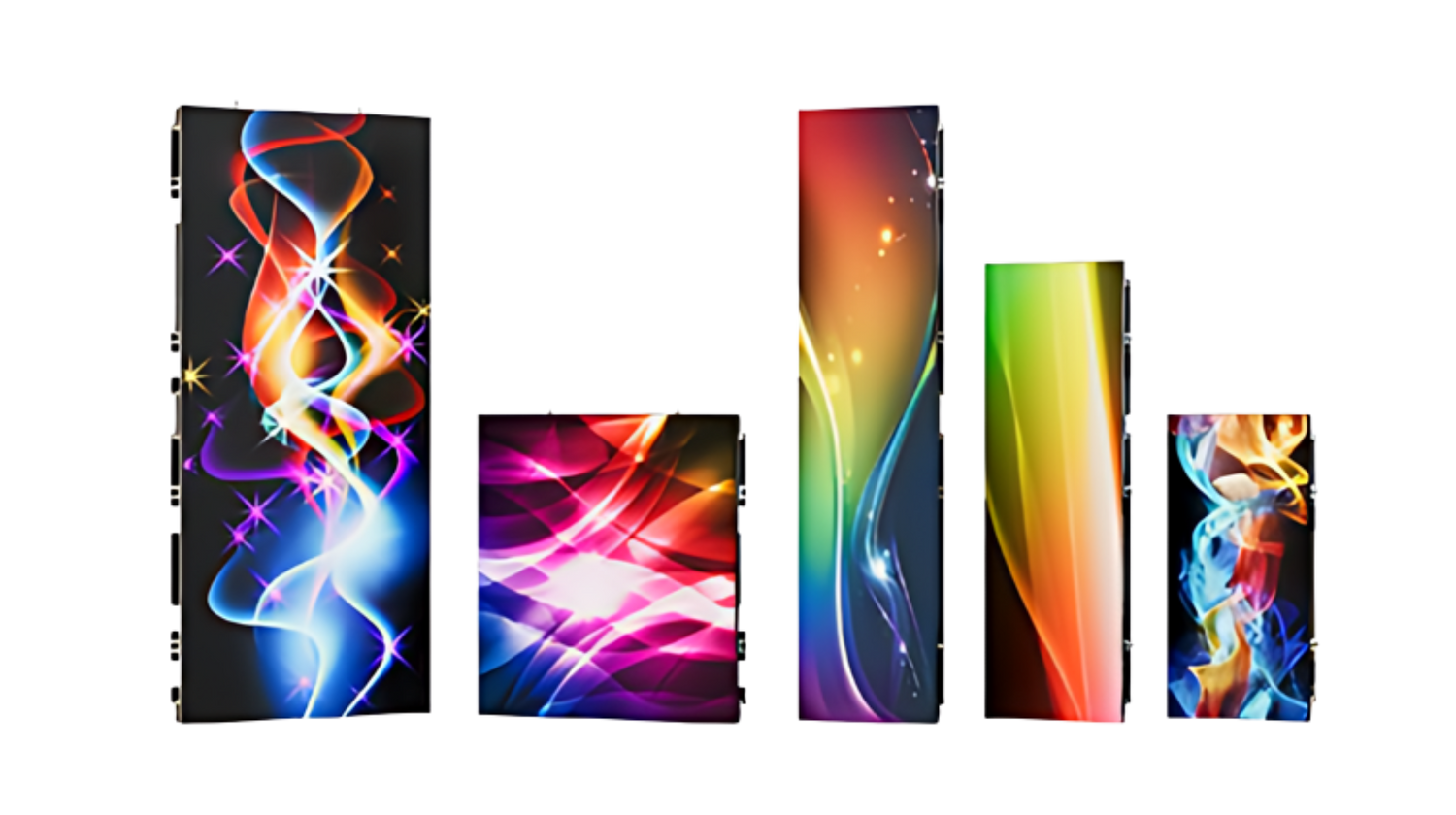

The Planar Leyard CDI Series 2.9mm pitch indoor LED cabinet is a Commercial Design Indoor display building block measuring 500 x 250mm with a native resolution of 168 x 84 pixels. The CDI Series is a versatile indoor LED platform built around modular cabinets and multiple pixel pitch options to suit a wide range of fixed installations. This 2.9mm configuration offers a value-oriented pitch for general-purpose indoor video walls viewed at moderate distances. It supports flat, curved, and geometric layouts for flexible, creative installations.

Product Description

The Leyard CDI Series is Planar's Commercial Design Indoor LED line, engineered to meet diverse visual needs through a modular cabinet design and a choice of pixel pitches. This 2.9mm cabinet provides a native 168 x 84 pixel resolution across its 500 x 250mm footprint, making total wall resolution straightforward to plan as cabinets are tiled. The CDI Series supports concave and convex configurations for curved displays, right-angle arrangements for geometric designs, and 90-degree cabinet rotation for versatile layouts. Installation is equally flexible, with support for wall-mounting, hanging, stacking, and ceiling mounting to suit varied environments. Energy-saving technology reduces power consumption when the screen displays black content, helping conserve energy during idle periods. As a cabinet-level component, total wall size, processing, mounting hardware, and power distribution should be specified per project. For the full range of Planar indoor and outdoor LED systems, browse the Planar collection. Planar protects this LED video wall solution under a 2-Year Standard Warranty. Configuration values beyond those published for the series should be confirmed against project requirements; contact Creation Networks to confirm.

Key Features

• 2.9mm pixel pitch — A value-oriented indoor pitch for general-purpose video walls at moderate viewing distances.
• 500 x 250mm cabinet — A modular footprint simplifies layout planning and resolution scaling.
• 168 x 84 native resolution — Each cabinet contributes a known pixel count for predictable wall sizing.
• Curved and geometric layouts — Supports concave, convex, right-angle, and 90-degree rotated configurations.
• Flexible mounting — Wall-mount, hang, stack, or ceiling-mount to fit varied environments.
• Energy-saving technology — Reduces power consumption when the screen displays black content.
• Commercial Design Indoor platform — Built for versatile fixed indoor installations.
• 2-Year Standard Warranty — Backed by Planar's standard coverage for indoor LED video wall products.

Typical Applications

• Corporate lobbies and reception video walls
• Retail and showroom displays
• Conference rooms and meeting spaces
• Curved and geometric feature walls
• Broadcast and presentation backdrops
• Hospitality and event environments

Technical Specifications

Frequently Asked Questions

What is the resolution of a single cabinet?
Each 500 x 250mm cabinet provides 168 x 84 pixels at 2.9mm pitch.

Can the CDI Series form curved walls?
Yes. It supports concave and convex curves, right angles, and 90-degree cabinet rotation.

What mounting methods are supported?
Wall-mounting, hanging, stacking, and ceiling mounting are all supported.

Is this for indoor or outdoor use?
The CDI Series is designed for indoor installations.

Does it include a controller or mount?
This listing is for the cabinet. Processing, mounting, and power are specified separately; contact Creation Networks to confirm.

What warranty applies?
This LED video wall solution is covered by Planar's 2-Year Standard Warranty.
