Planar CLI3.9 Flex – 3.9mm Flexible LED Module
Product Overview

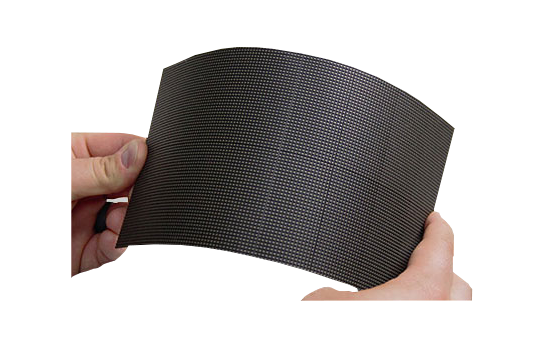

The Planar CLI3.9 Flex is a 3.9mm pixel-pitch flexible LED module measuring 250 x 125mm, designed to form curved direct-view LED surfaces. Its flexible substrate allows the module to be shaped into convex or concave curves, enabling creative and architectural display geometries. The module ships as a standalone tile without a cabinet or supporting structure, giving integrators freedom to mount it within custom framing. It is intended for indoor creative LED installations where curved or wrapped surfaces are required.
Product Description
This flexible LED module is part of Planar's CLI creative LED line, built specifically for non-flat display surfaces. The 250 x 125mm form factor and 3.9mm pitch give integrators a building block that can be tiled and curved to follow columns, coves, and other shaped architectural elements. Because the module bends into both convex and concave profiles, it supports a wide variety of curved layouts from a single component type. The product is supplied without a cabinet or mounting structure, so a custom or specified support system is required to complete an installation. This approach lets designers integrate the LED surface directly into bespoke millwork or framing. As a creative LED component, it should be matched with compatible CLI system electronics, power, and data infrastructure. For curve radius limits, supporting structure requirements, and module quantities for a given design, contact Creation Networks to confirm. Browse the full Planar creative and direct-view LED range in the Planar collection.
Key Features
- Flexible substrate — Bends into convex and concave curves to follow shaped architectural surfaces.
- 3.9mm pixel pitch — Suited to creative indoor LED applications at moderate viewing distances.
- 250 x 125mm module — Compact tile format for flexible layout and curved tiling.
- No cabinet or structure included — Ships as a module for integration into custom framing or millwork.
- CLI creative LED series — Designed as part of Planar's creative LED system for shaped displays.
Technical Specifications
| Manufacturer | Planar |
| Series | CLI (Creative LED), Flex |
| Pixel Pitch | 3.9 mm |
| Module Size | 250 x 125 mm |
| Curve Support | Convex and concave |
| Cabinet / Structure | Not included |
| SKU / Part Number | 998-1503-00 |
