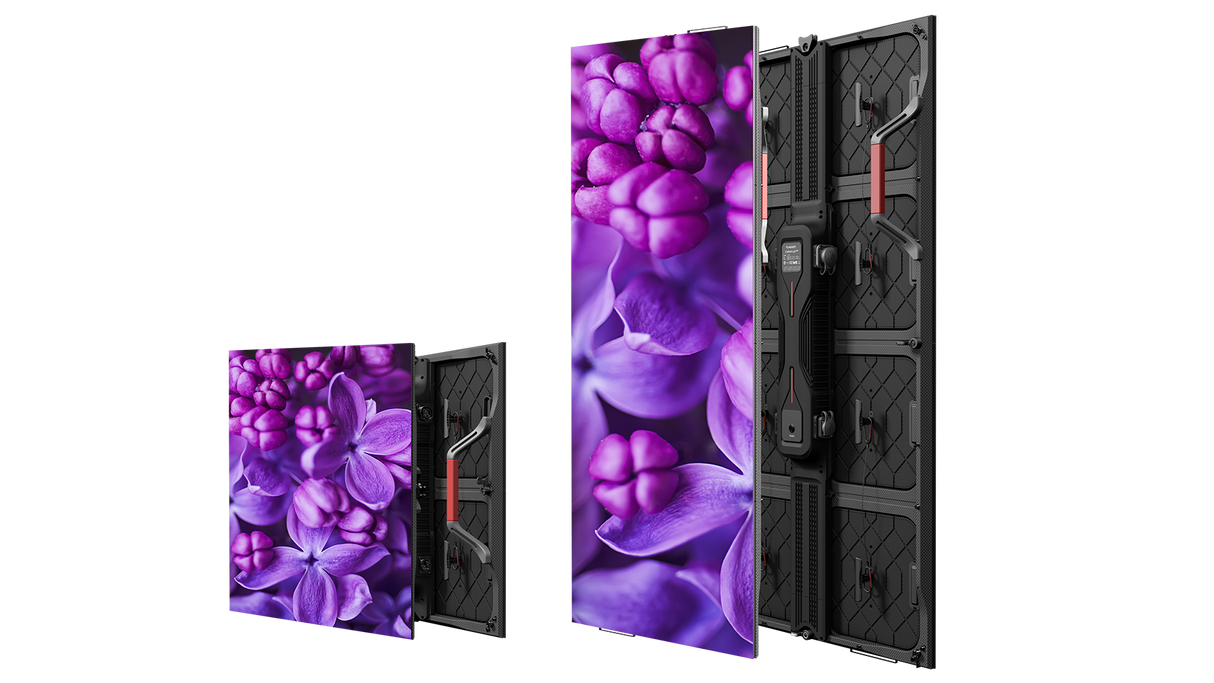

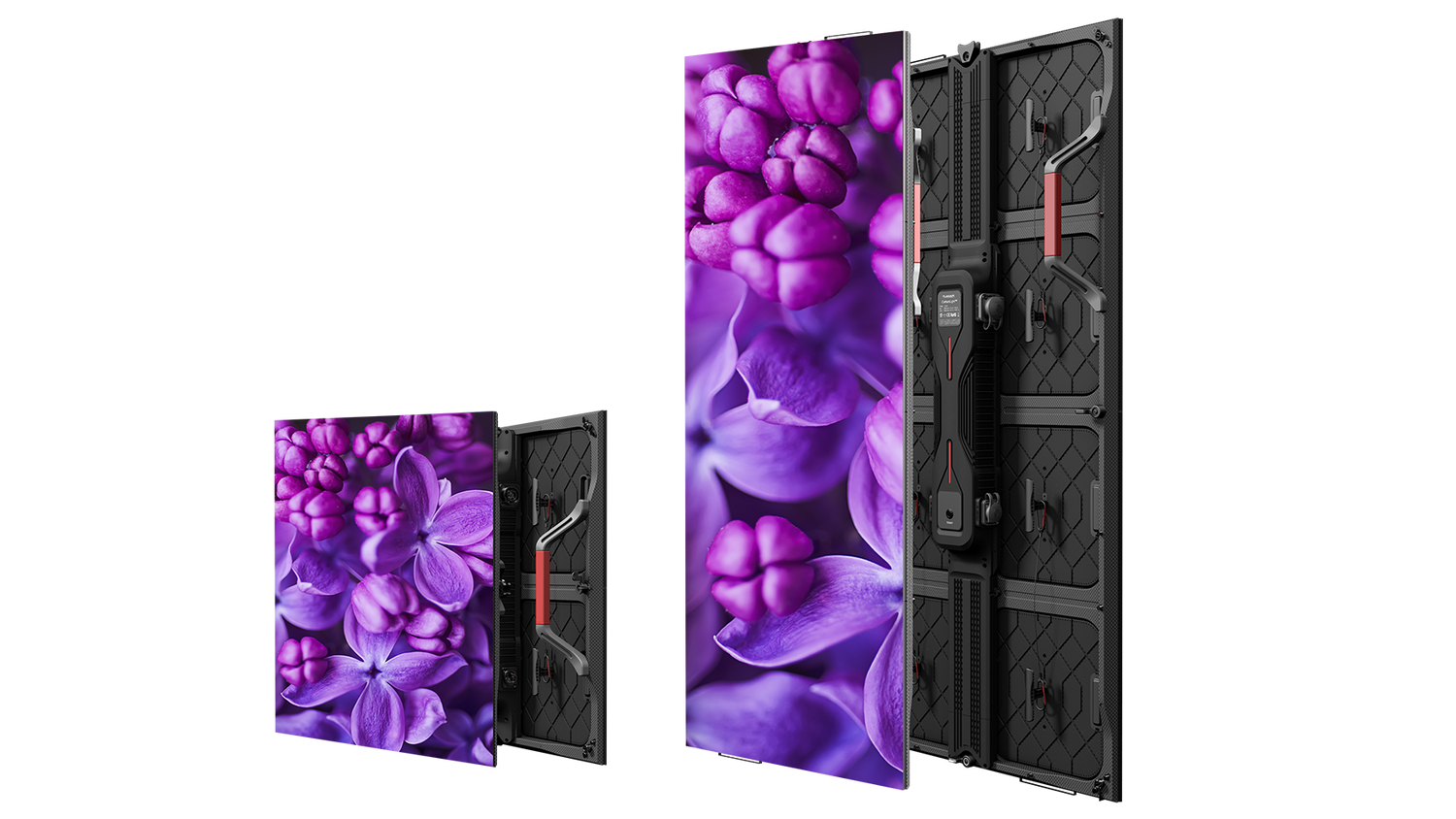

Planar CarbonLight Series 3.9mm Indoor LED Module

About the Planar CarbonLight Series

The Planar CarbonLight LED Displays family is comprised of versatile solutions to fit a variety of eye-catching, creative applications from hanging signs and flooring to smoothly curved domes and camera-ready video walls for virtual production. They share a patented carbon fiber construction that makes them uniquely lightweight, thin and strong. Their refined mechanical construction and innovative features enable fast installations, particularly valuable for staging events.

Product Overview

The Planar CarbonLight Indoor Series 3.9mm LED module is a 250x250mm display tile rated for 1000 nits with an 8-scan driving scheme. This indoor LED module provides a 3.9mm pixel pitch well suited to larger video walls viewed at moderate distances. The 250x250mm format supports flexible, scalable array sizing for commercial interiors. It is a core component of the Planar CarbonLight indoor direct-view LED platform.

Product Description

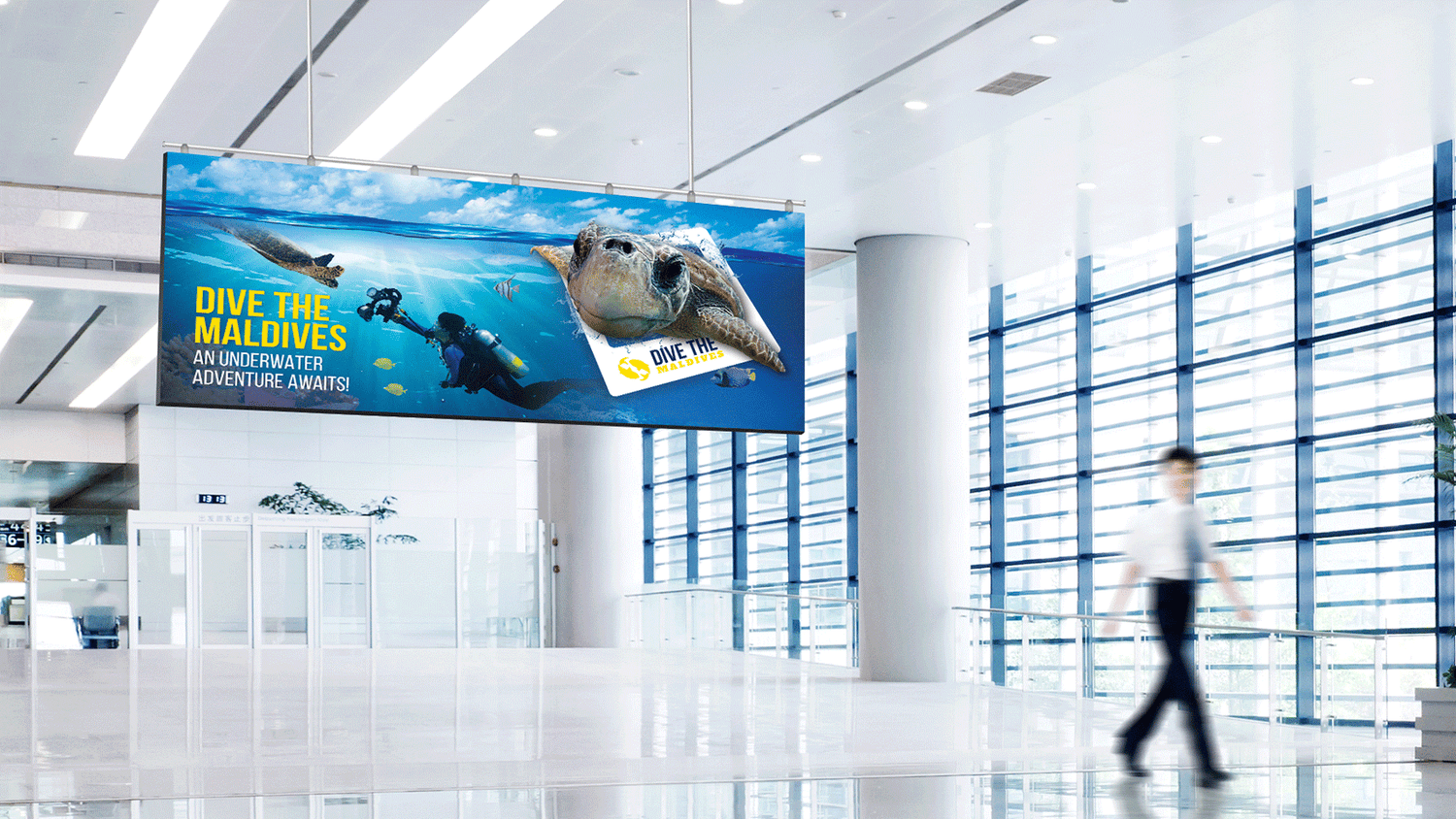

This Planar CarbonLight Indoor 3.9mm LED module serves as a building block for direct-view video wall installations where viewers sit at moderate distances, such as larger lobbies, auditoriums, and signage walls. The 250x250mm module footprint allows integrators to scale displays in precise increments to fit the available space and resolution requirements. A 3.9mm pixel pitch offers an efficient balance of image detail and cost for medium-to-large format applications. The 1000-nit brightness rating supports clear viewing in interior spaces with controlled to moderate ambient light, and the 8-scan driving scheme governs pixel-row refresh. As a modular tile, the module is intended for deployment within the CarbonLight cabinet, mounting, and processing infrastructure that make up a complete system. Pixel pitch, module dimensions, brightness, and scan rate are confirmed from the manufacturer specification. Full electrical and processing requirements depend on the system configuration, so contact Creation Networks to confirm the right setup for your installation. For related LED components, browse the full Planar collection. Our team can assist with array layout, processing, and spare-part planning for CarbonLight deployments.

Key Features

• 3.9mm Pixel Pitch — The pitch balances image detail and value for medium-to-large format indoor video walls.
• 1000-Nit Brightness — The brightness rating supports clear images in interior spaces with controlled to moderate ambient light.
• 8-Scan Driving — The 8-scan scheme governs pixel-row refresh for the module.
• 250x250mm Format — The standardized square module enables precise, scalable video wall sizing.
• CarbonLight Compatibility — The module integrates with the Planar CarbonLight indoor LED system infrastructure.

Technical Specifications
