Planar CarbonLight Series 2.6mm Indoor LED Module

About the Planar CarbonLight Series

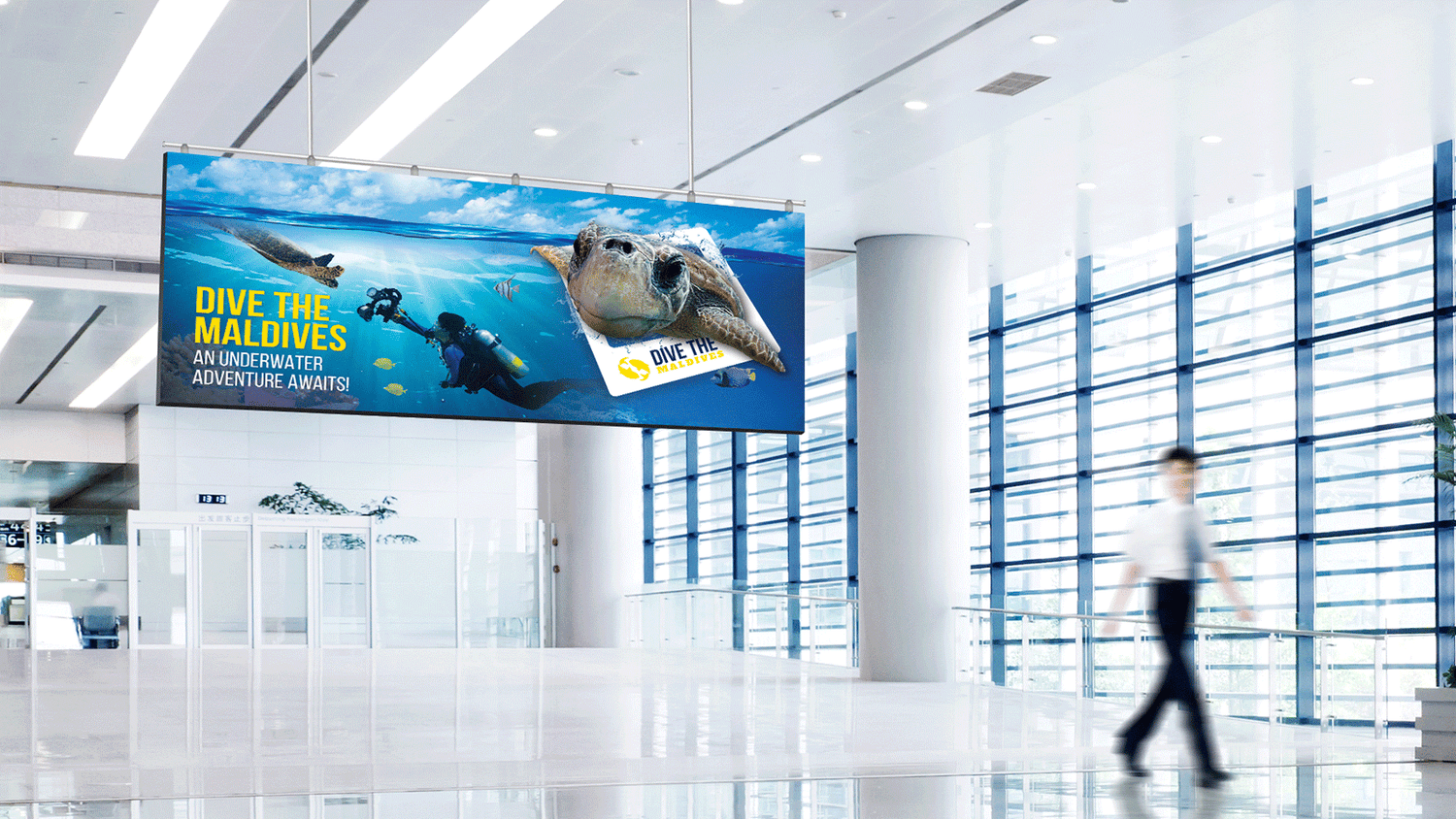

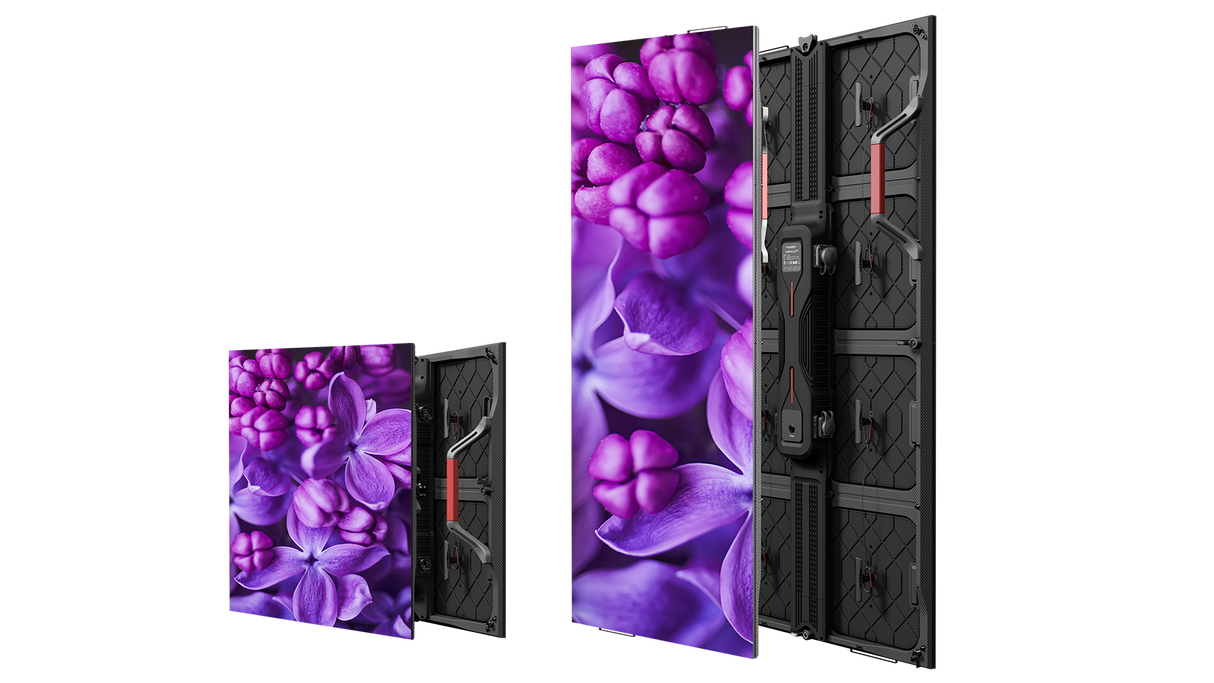

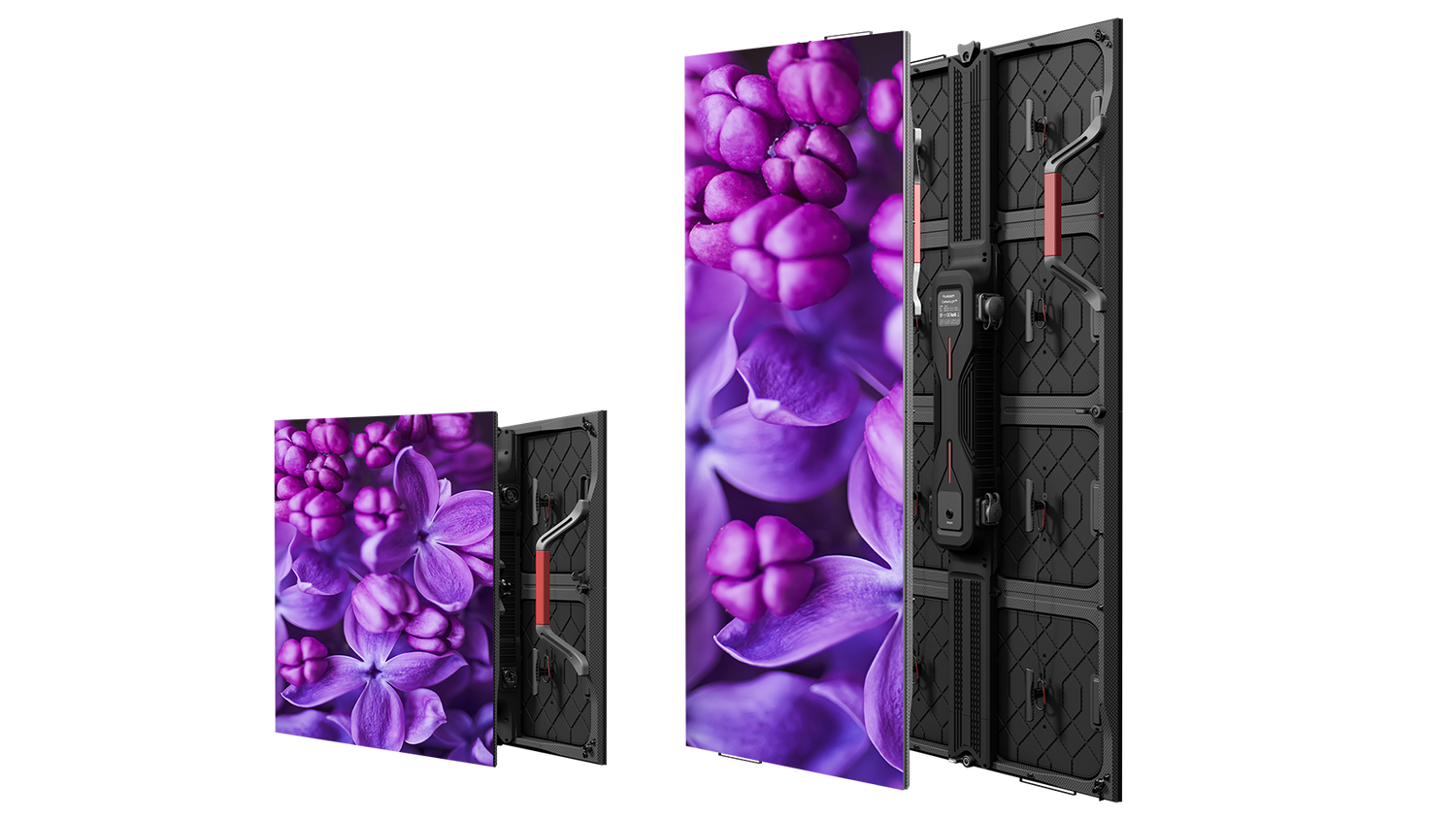

The Planar CarbonLight LED Displays family is comprised of versatile solutions to fit a variety of eye-catching, creative applications from hanging signs and flooring to smoothly curved domes and camera-ready video walls for virtual production. They share a patented carbon fiber construction that makes them uniquely lightweight, thin and strong. Their refined mechanical construction and innovative features enable fast installations, particularly valuable for staging events.

Product Overview

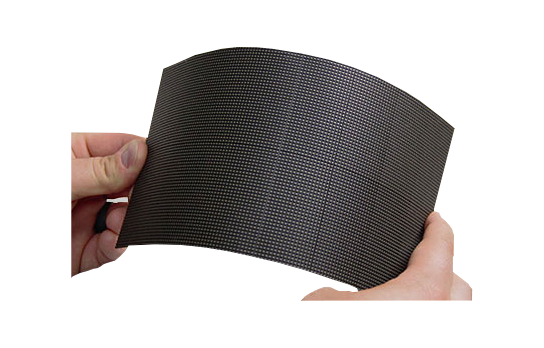

The Planar CarbonLight Indoor Series 2.6mm LED module is a 250x250mm display tile rated for 1000 nits with a 16-scan driving scheme. This indoor LED module delivers a 2.6mm pixel pitch suited to fine-pitch video walls viewed at close to mid-range distances. The 250x250mm format supports flexible, scalable array sizing for commercial interiors. It is a core component of the Planar CarbonLight indoor direct-view LED platform.

Product Description

This Planar CarbonLight Indoor 2.6mm LED module is a building block for fine-pitch video wall installations in corporate, broadcast, and signage environments. The 250x250mm module footprint lets integrators size displays in precise increments to match wall space and resolution targets. A 2.6mm pixel pitch positions the module for indoor applications where viewers stand within a few meters of the screen. The 1000-nit brightness rating supports clear imagery in interior spaces with controlled to moderate ambient lighting, and the 16-scan driving scheme governs how the module refreshes its pixel rows. As a modular tile, it is intended for deployment within the CarbonLight cabinet, mounting, and processing infrastructure that form a complete system. Pixel pitch, module dimensions, brightness, and scan rate are confirmed from the manufacturer specification. Full electrical and processing requirements depend on the system configuration, so contact Creation Networks to confirm the right setup for your installation. For related fine-pitch LED components, browse the full Planar collection. Our team can assist with array layout, processing, and spare-part planning for CarbonLight deployments.

Key Features

• 2.6mm Pixel Pitch — The fine pitch supports detailed imagery for close and mid-range indoor viewing distances.
• 1000-Nit Brightness — The brightness rating delivers clear images in interior spaces with controlled to moderate ambient light.
• 16-Scan Driving — The 16-scan scheme governs pixel-row refresh for stable image reproduction.
• 250x250mm Format — The standardized square module enables precise, scalable video wall sizing.
• CarbonLight Compatibility — The module integrates with the Planar CarbonLight indoor LED system infrastructure.

Technical Specifications
