Planar CarbonLight CLI 1.9mm Indoor LED Cabinet

Product Overview

The Planar CarbonLight CLI 1.9mm indoor LED cabinet is a carbon-fiber-framed video wall panel built for fixed and temporary indoor installations. It uses a 500x500mm cabinet with front-service modules, a 16-scan drive configuration, and a single power supply on a 100-240V AC, 50/60Hz input. Rated at 1000 nits, it suits indoor environments where high brightness and fine pixel pitch are required. The carbon fiber construction keeps the cabinet exceptionally lightweight while supporting hanging or stacked array installations.

Product Description

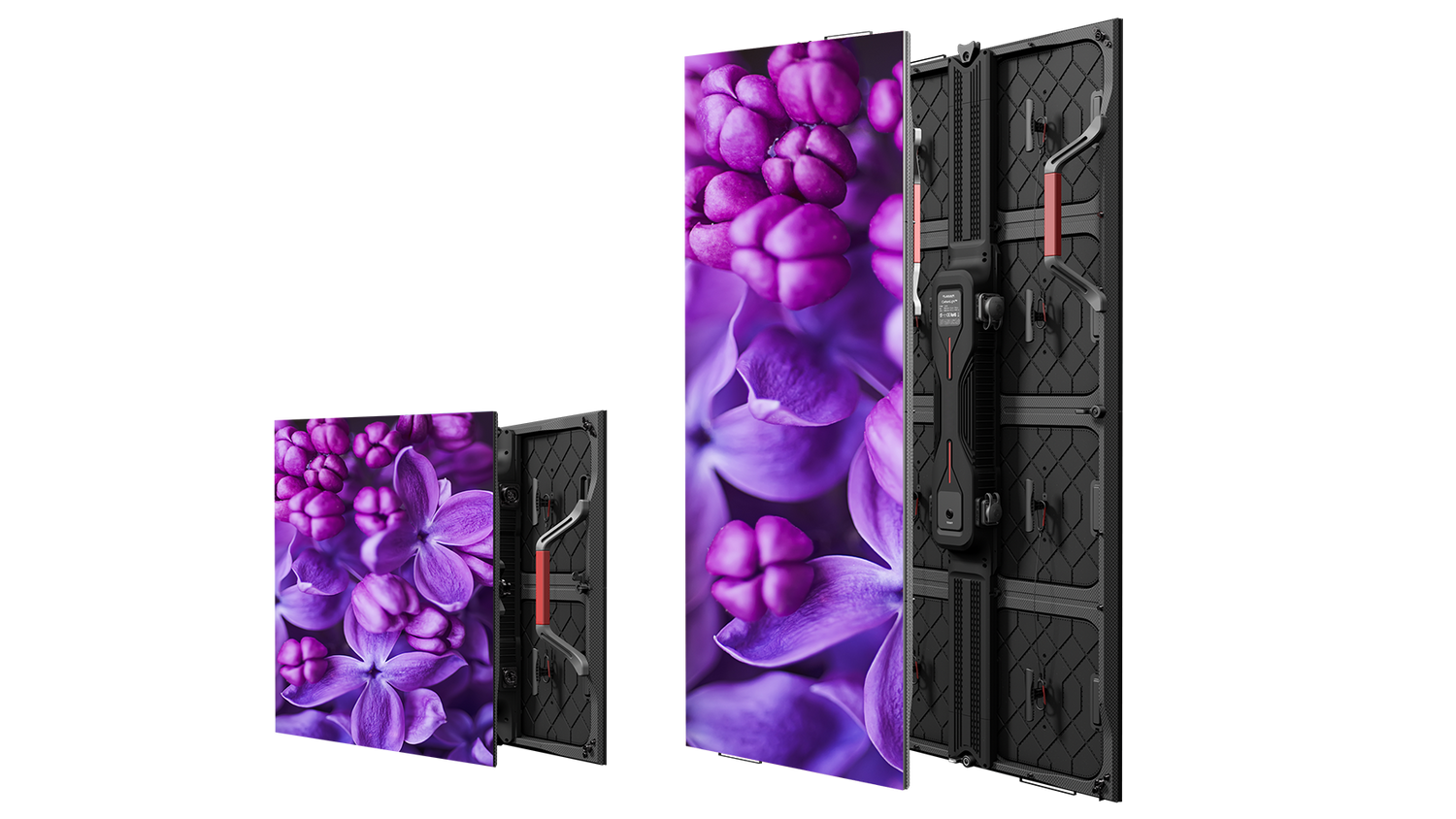

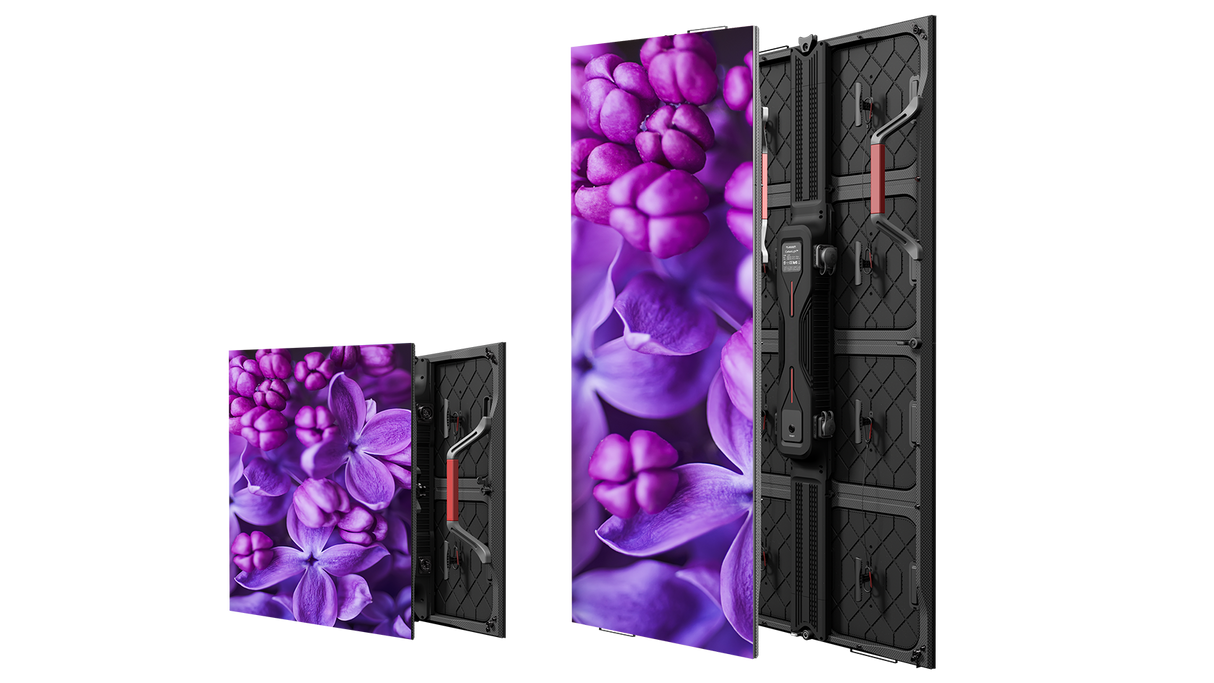

Planar CarbonLight CLI is a line of indoor LED video wall displays distinguished by advanced carbon fiber frames that make each cabinet lightweight, thin, and strong. This 1.9mm pixel pitch model is built on a 500x500mm cabinet with front-accessible service modules, allowing technicians to maintain the wall from the viewing side when rear access is restricted. The display drives at 16 scan with a rated brightness of 1000 nits, providing the output needed for bright indoor lobbies, broadcast sets, and corporate spaces. A single power supply per cabinet accepts a wide 100-240V AC, 50/60Hz input, simplifying deployment across regions and venues. CarbonLight CLI cabinets are available in 500x500mm and 500x1000mm sizes across multiple pixel pitches, and their high-strength carbon fiber construction supports hanging or stacking installations. The lightweight frame reduces installed load and speeds setup, which is valuable for both permanent fixed walls and temporary event builds. The 1.9mm pitch places this model in the fine-pitch range suited to closer viewing distances typical of indoor applications. This product is supplied without a mount, so the appropriate mounting hardware is specified separately for the installation method. Browse the full CarbonLight and Planar LED range in our Planar collection. For module resolution, weight, and refresh rate specific to this SKU, contact Creation Networks to confirm.

Key Features

• 1.9mm pixel pitch — Fine pitch suited to the closer viewing distances of indoor lobby, broadcast, and corporate environments.
• Carbon fiber construction — The patented carbon fiber frame is lightweight, thin, and strong enough to support hanging or stacked arrays.
• 500x500mm cabinet — A square cabinet footprint that tiles predictably into larger indoor video walls.
• Front-service modules — Modules are serviced from the front, enabling maintenance where rear access is limited.
• 1000 nit brightness — High indoor brightness keeps content legible in well-lit interior spaces.
• 16-scan drive — The cabinet operates with a 16-scan configuration for its rated performance.
• Single power supply, 100-240V AC — A single wide-input power supply per cabinet simplifies regional and venue deployment.

Typical Applications

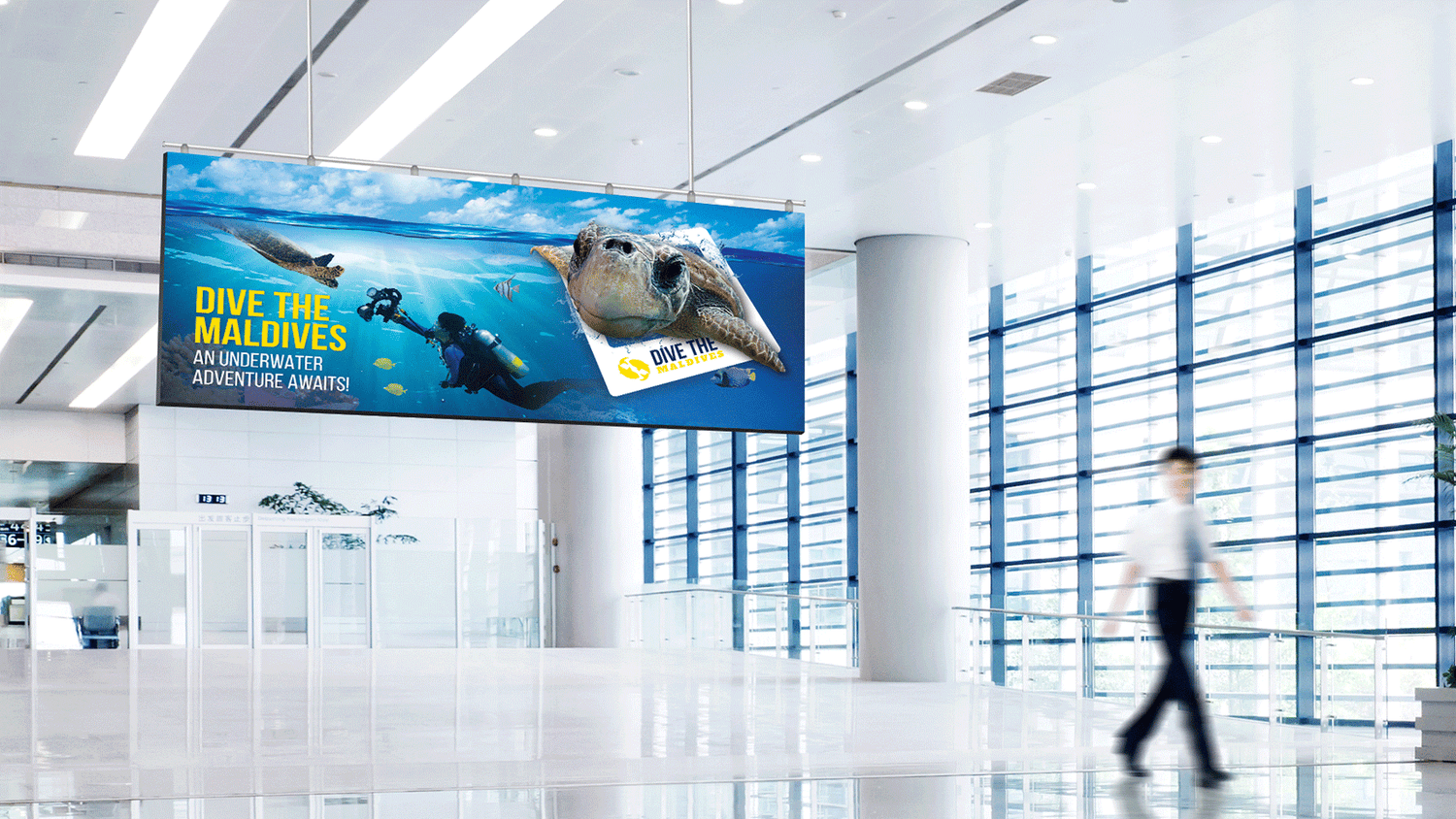

• Corporate lobbies and reception video walls
• Broadcast and on-camera studio backdrops
• Indoor fixed digital signage
• Temporary event and staging installations
• Control rooms and collaboration spaces

Technical Specifications

Frequently Asked Questions

Is this cabinet for indoor or outdoor use? It is an indoor display. The CarbonLight CLI Series is built for indoor fixed and temporary installations.

Can it be serviced from the front? Yes. This cabinet uses front-service modules, so technicians can maintain it from the viewing side when rear access is limited.

Why is carbon fiber used? Carbon fiber makes the cabinet lightweight, thin, and strong, which reduces installed weight and supports hanging or stacked array installations.

Does it include a mount? No. This cabinet ships without a mount, so the appropriate mounting hardware is ordered separately. Contact Creation Networks to confirm the right option.

What power input does it use? Each cabinet has a single power supply accepting 100-240V AC at 50/60Hz.
