Planar ALF Series 2.6mm – Indoor LED Display

Product Overview

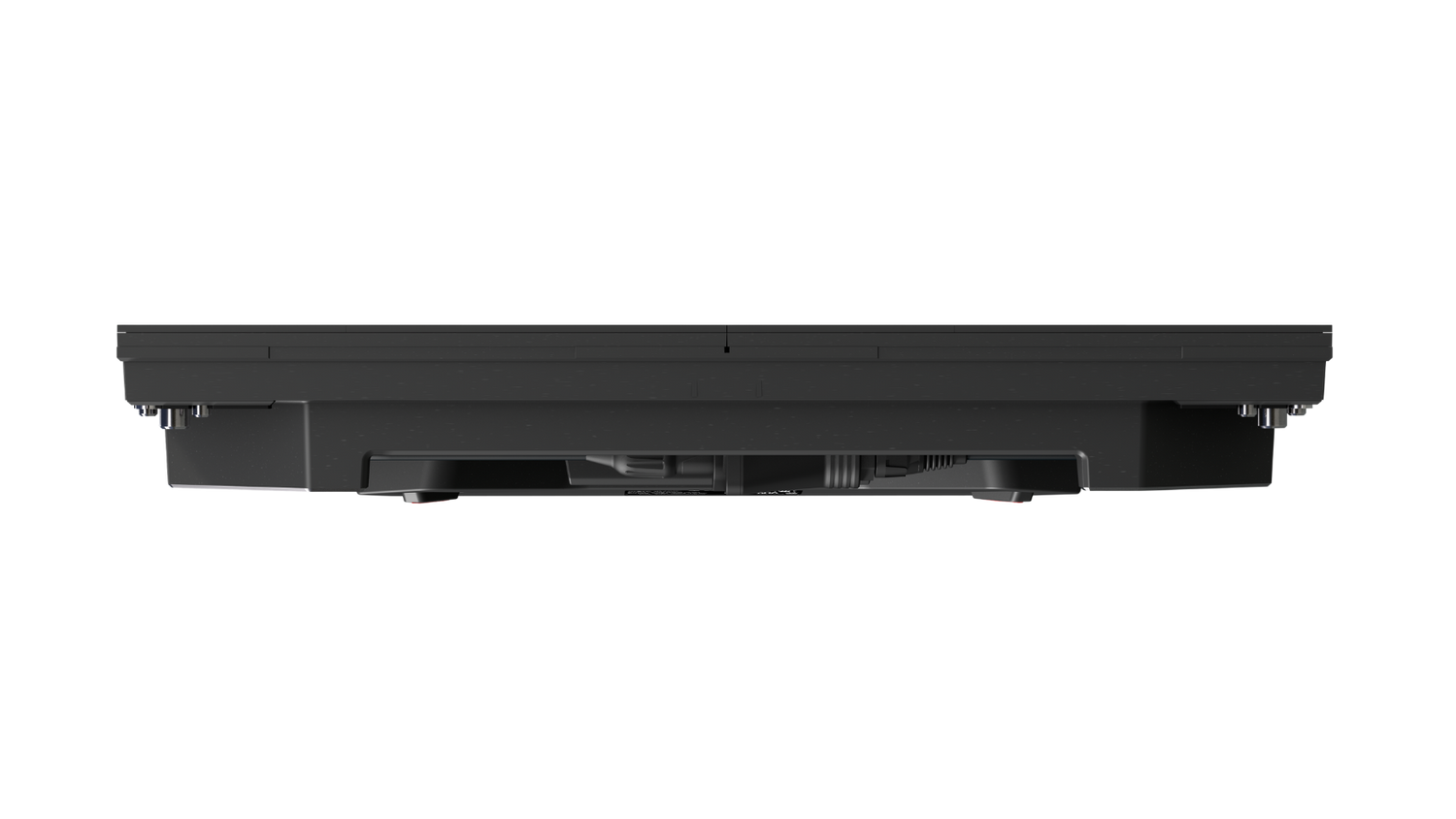

The Planar ALF Series 2.6mm is an LED video wall cabinet designed for fast installation and front maintenance, with optional dual power and signal redundancy. This 500 x 500mm aluminum cabinet uses a 2x2 module array and ships with a ColorLight i9 receiver card and a single power supply. It accepts 100-240VAC, 50/60Hz input. SKU 998-4703-00 is supplied without a mount, as a single-cabinet configuration.

Product Description

The Planar ALF Series is a quick-install LED video wall platform aimed at integrators who need fast deployment and accessible service. This 2.6mm model is built on a 500 x 500mm aluminum cabinet using a 2x2 array of LED modules, a standardized square format that simplifies array layout and spares planning. The series is engineered for fast installation and front and top maintenance, and it offers optional dual power and signal redundancy for installations that require additional reliability. A high grayscale chip and high refresh rate, supporting up to 240Hz, deliver clean motion handling for video and camera-facing content. A black crystal matte surface reduces reflections, helping the display hold contrast in well-lit rooms. The 2.6mm pixel pitch is well matched to mid-range viewing in conference rooms, boardrooms, and commercial meeting spaces. This cabinet ships with a ColorLight i9 receiver card and a single power supply, and accepts a wide 100-240VAC, 50/60Hz input for flexible electrical environments. The unit is supplied without a mount, so mounting hardware is specified separately to match the structure and orientation of the installation. The ALF Series is backed by a 2-year standard warranty. Review related Planar options on the Creation Networks Planar collection. Creation Networks supplies this cabinet as a draft commercial configuration; contact our team to confirm array sizing, mounting, redundancy, and processing for your project.

Key Features

• 2.6mm pixel pitch — Matched to mid-range viewing in conference and meeting environments.
• 500 x 500mm aluminum cabinet — Standardized square format simplifies layout and spares planning.
• 2x2 module array — Four LED modules per cabinet support straightforward service.
• Fast installation — Designed for quick deployment with front and top maintenance access.
• Optional dual redundancy — Optional dual power and signal redundancy for higher-reliability installs.
• Up to 240Hz refresh — High grayscale chip and high refresh rate support clean motion and camera content.
• Black crystal matte surface — Reduces reflections to hold contrast in well-lit rooms.
• ColorLight i9 receiver card — Integrated receiver card with single power supply and 100-240VAC input.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• All-hands room
• Broadcast studio
• Auditorium

Technical Specifications

Frequently Asked Questions

What pixel pitch is this ALF Series cabinet?
It uses a 2.6mm pixel pitch suited to mid-range viewing in meeting spaces.

Does it include a mount?
No. This configuration ships without a mount; mounting hardware is specified separately.

What refresh rate does it support?
The ALF Series supports up to 240Hz, suited to video and camera-facing content.

Is power redundancy available?
Optional dual power and signal redundancy is available. Contact Creation Networks to confirm.

What receiver card and input does it use?
It ships with a ColorLight i9 receiver card and accepts 100-240VAC, 50/60Hz input.

Does the price include mounting and processing?
Mounting and video processing are configured per project. Contact Creation Networks to confirm a complete bill of materials.
