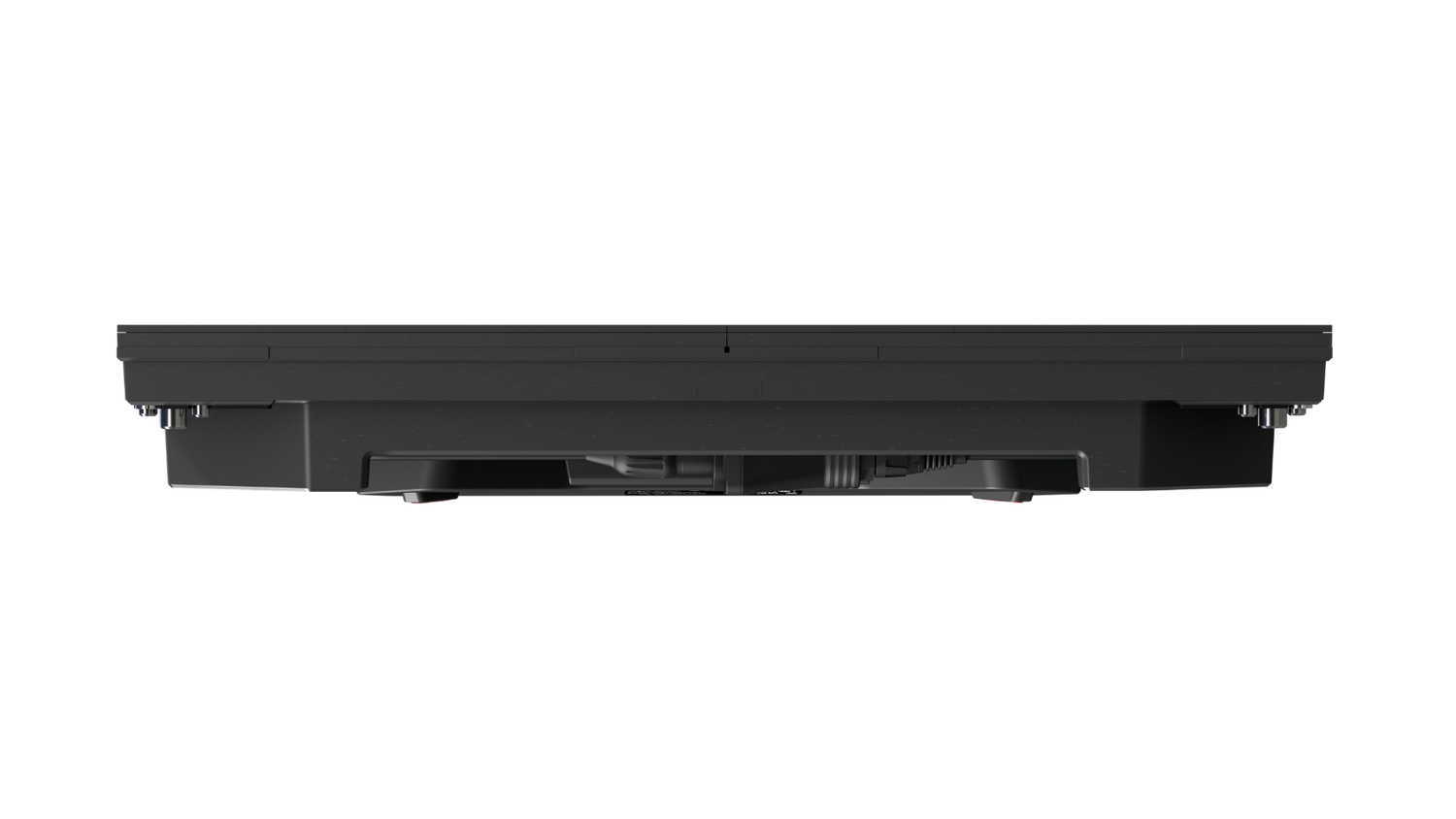

Leyard ALF 1.9mm LED Video Floor Cabinet

Product Overview

The Leyard ALF 1.9mm LED video floor cabinet is a walkable, high-performance LED flooring panel built for durability and visual quality. It is constructed on a 500x500mm aluminum cabinet with edge protection, a 2x2 module array, a ColorLight i9 receiver card, and a single power supply on a 100-240V AC, 50/60Hz input. The ALF Series is engineered for fast installation with front and top service access. This product is supplied without a mount.

Product Description

The Leyard ALF Series is a line of high-performance LED video flooring that combines structural durability with display quality, designed for interactive floors, stage decks, and immersive installations where the audience walks directly on the display. This 1.9mm pixel pitch model uses a 500x500mm aluminum cabinet with edge protection and a 2x2 module array, driven by a ColorLight i9 receiver card. The aluminum design supports more than 1,000 pounds per display, providing the load capacity required for foot traffic, equipment, and crowds. A single power supply per cabinet accepts a wide 100-240V AC, 50/60Hz input, simplifying deployment across venues and regions. The series supports a high refresh rate up to 240Hz along with a high grayscale chip, which keeps motion smooth and color accurate when the floor is captured on camera. A black crystal matte surface reduces reflections for higher perceived contrast under stage and venue lighting. The modular design with front and top service access lets technicians maintain individual modules in place without lifting the entire floor, and optional dual power and signal redundancy is available for installations that demand high reliability. This product ships without a mount, and the ALF Series is protected by the Planar 2-Year Standard LED Warranty. Browse the full Planar and Leyard LED lineup in our Planar collection. For brightness, module resolution, and weight specific to this SKU, contact Creation Networks to confirm.

Key Features

• 1.9mm pixel pitch — Fine pitch suited to close viewing of walkable floor content in interactive and stage applications.
• Walkable load capacity — The aluminum design supports more than 1,000 pounds per display for foot traffic and equipment.
• Aluminum cabinet with edge protection — A 500x500mm cabinet built to endure the mechanical stress of a video floor.
• ColorLight i9 receiver card — Drives the panel within a ColorLight processing ecosystem.
• Up to 240Hz refresh — High refresh rate and a high grayscale chip keep motion smooth and color accurate on camera.
• Black crystal matte surface — Reduces reflections for higher perceived contrast under venue lighting.
• Front and top service — Modular maintenance is performed in place without lifting the whole floor.
• Optional redundancy — Optional dual power and signal redundancy supports high-reliability installations.

Typical Applications

• Interactive LED floors and experiential installations
• Stage decks for concerts and live events
• Broadcast and virtual production floor surfaces
• Retail and exhibition immersive displays
• Museums and branded experience spaces

Technical Specifications

Frequently Asked Questions

Is this product a video floor? Yes. The ALF Series is high-performance LED flooring designed to be walked on in interactive, stage, and immersive installations.

How much weight does it support? The aluminum design supports more than 1,000 pounds per display, accommodating foot traffic and equipment.

Can it be maintained in place? Yes. The modular design offers front and top service access, so individual modules are serviced without lifting the whole floor.

Does it support redundancy? Optional dual power and signal redundancy is available for installations that require high reliability.

What warranty does it carry? The ALF Series is protected by the Planar 2-Year Standard LED Warranty.
