Planar ALF 1.9mm LED Floor Module
Product Overview

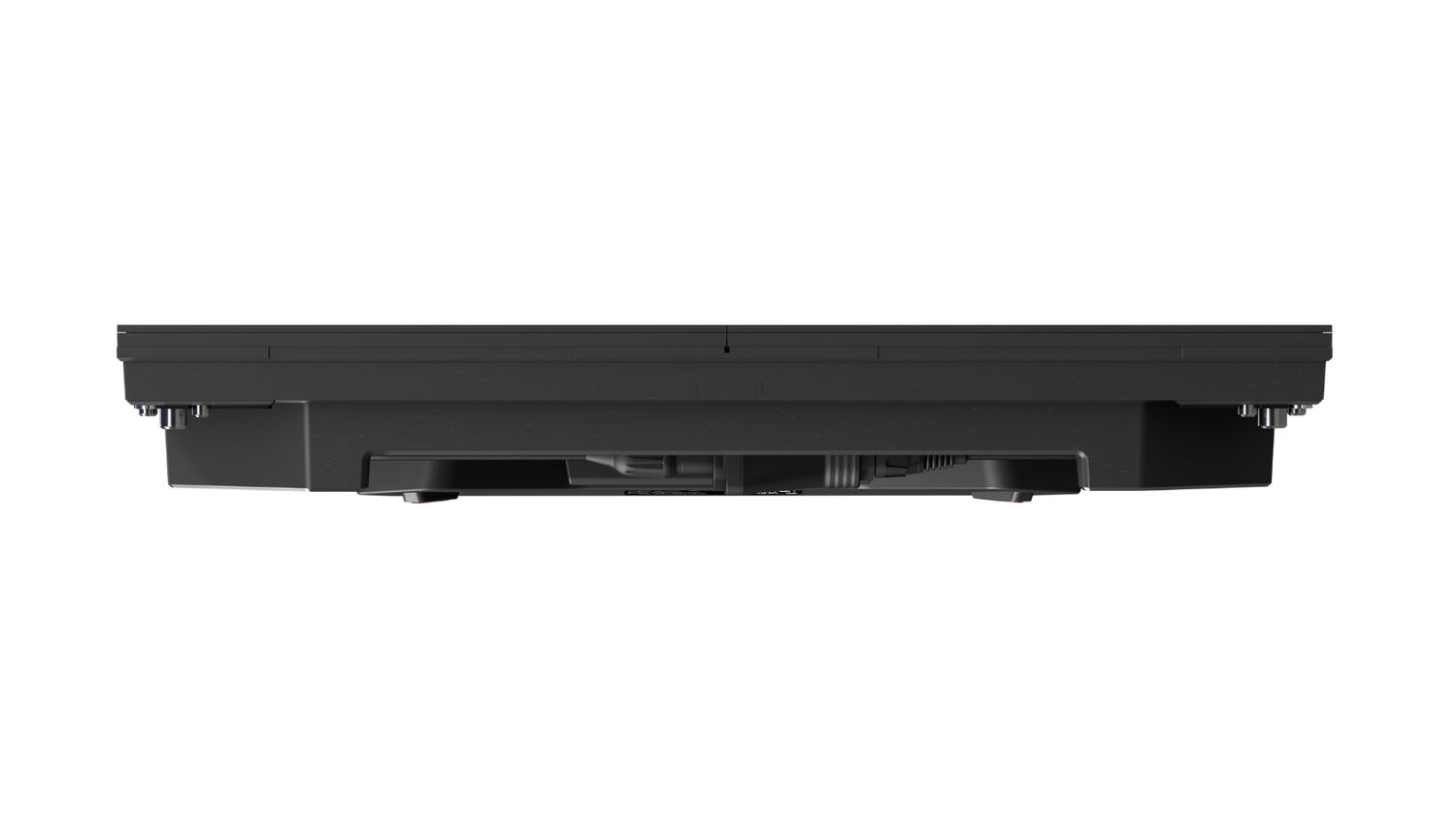

The Planar Leyard ALF Series 1.9mm pitch LED floor module is a 250 x 250mm display component engineered for durable, walkable LED flooring installations. The ALF Series combines durability, reliability, and high visual quality for interactive floor applications in events, retail, and experiential spaces. This module is Colorlight compatible, integrating with Colorlight processing ecosystems. At a 1.9mm pixel pitch, it delivers detailed imagery at the close viewing distances inherent to floor displays.
Product Description
The Leyard ALF Series is Planar's LED flooring line, built to withstand foot traffic while delivering high-quality visuals underfoot. This 1.9mm pitch module measures 250 x 250mm and is Colorlight compatible, allowing integration with Colorlight control systems as noted in the product configuration. The series employs a high-grayscale chip and a high refresh rate, supporting up to 240Hz for clean visual performance suited to camera capture and live environments. A black crystal matte surface reduces reflections, delivering higher contrast and optimized visuals under venue lighting. Designed for fast installation with front and top maintenance access, the ALF Series also offers optional dual power and signal redundancy for added reliability in demanding deployments. As a module-level component, total floor area, processing, structure, and power should be specified per project, and load-bearing and safety requirements should be reviewed for the installation. For the full range of Planar LED display systems, browse the Planar collection. Per-installation values such as load rating and total module count depend on your configuration; contact Creation Networks to confirm.
Key Features
- 1.9mm pixel pitch — Fine spacing delivers detailed imagery at the close viewing distances of floor displays.
- 250 x 250mm floor module — A standardized format simplifies floor layout and area planning.
- Colorlight compatible — Integrates with Colorlight control and processing systems.
- High refresh rate — Supports up to 240Hz for clean capture in camera and live environments.
- High-grayscale chip — Supports accurate tonal reproduction for high visual quality.
- Black crystal matte surface — Reduces reflections for higher contrast under venue lighting.
- Front and top maintenance — Accessible service supports fast installation and upkeep.
- Optional redundancy — Dual power and signal redundancy options add reliability in demanding deployments.
Typical Applications
- Interactive LED flooring for events
- Retail and showroom floor displays
- Experiential and immersive installations
- Broadcast and studio floor surfaces
- Trade shows and exhibits
- Entertainment and stage flooring
Technical Specifications
| Series | Planar Leyard ALF Series (LED flooring) |
| Component Type | LED floor module |
| Pixel Pitch | 1.9mm |
| Module Size | 250 x 250mm |
| Control Compatibility | Colorlight compatible |
| Refresh Rate | Up to 240Hz |
| Surface | Black crystal matte, anti-reflective |
| Maintenance | Front and top access |
| Redundancy | Optional dual power and signal |
| SKU | 926-0917-00 |
Frequently Asked Questions
Is the ALF Series designed to be walked on?
Yes. It is LED flooring built for durability under foot traffic. Review load-bearing requirements for your install.
Is this module Colorlight compatible?
Yes. This configuration is Colorlight compatible for integration with Colorlight control systems.
What refresh rate does it support?
The series supports up to 240Hz for clean capture in camera and live environments.
How is it maintained?
It offers front and top maintenance access for fast installation and service.
Does it support redundancy?
Yes. Optional dual power and signal redundancy are available for demanding deployments.
What else is required for a complete floor?
Total module count, processing, structure, and power are specified per project. Contact Creation Networks to confirm.
