Planar ALF Series 1.5mm Indoor LED Cabinet

Product Overview

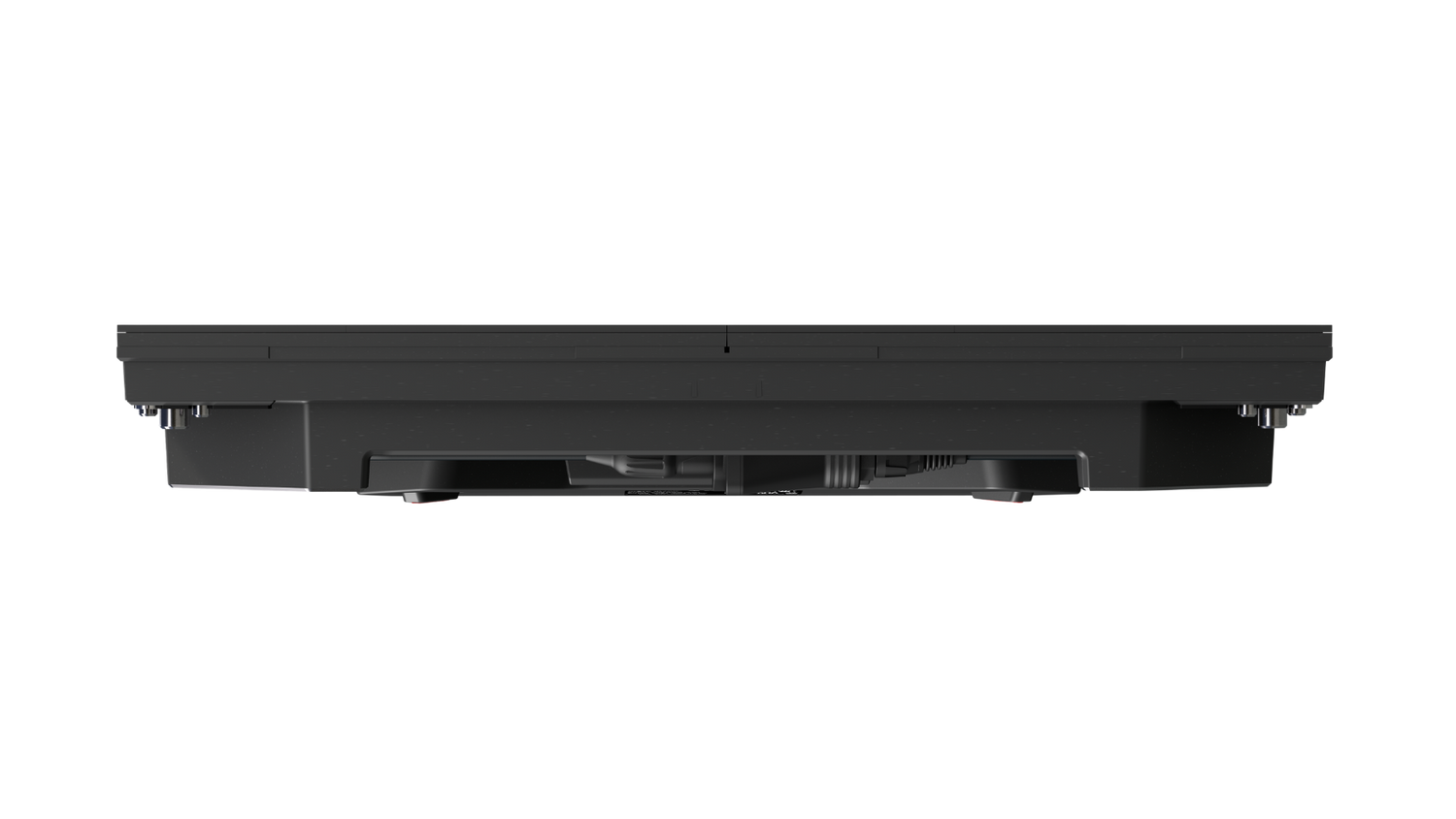

The Planar ALF Series is an indoor fine-pitch LED video wall family built for high-performance fixed installations. This cabinet features a 1.5mm pixel pitch in a 500x500mm aluminum cabinet with a 2x2 module array and a Colorlight i9 receiver card. A single power supply accepts 100-240VAC, 50/60Hz input, and the cabinet ships with no mount. The ALF Series 1.5mm indoor LED cabinet pairs a high refresh rate with a low-reflection surface for demanding broadcast and corporate environments.

Product Description

The Planar ALF Series 1.5mm indoor LED cabinet is designed for integrators building detailed, color-accurate video walls in broadcast studios, corporate experience centers, and premium retail spaces. The series uses a high-grayscale chip and high refresh rate, supporting up to 240Hz for stable on-camera performance and smooth motion rendering. A black crystal matte surface reduces reflections, delivering higher perceived contrast and a cleaner image under studio and ambient lighting. The fine 1.5mm pixel pitch produces a tight image suited to close viewing distances common in control rooms and lobbies. This configuration is built in a 500x500mm aluminum cabinet with a 2x2 module array and is supplied with a Colorlight i9 receiver card that sets processor compatibility. A single power supply with a 100-240VAC, 50/60Hz input simplifies power distribution across a tiled array, and optional dual power and signal redundancy is available within the series for installations that require fault tolerance. The ALF Series is engineered for fast installation with front and top maintenance access, so modules and electronics can be serviced in place. The cabinet ships with no mount, allowing integrators to specify mounting hardware per room. Integrators evaluating fine-pitch indoor options can review the broader range on the Planar collection at Creation Networks. Because per-SKU brightness and power figures vary by configuration, contact Creation Networks to confirm exact specifications for your project.

Key Features

• 1.5mm pixel pitch — Fine pitch produces a detailed image for close indoor viewing distances.
• Up to 240Hz refresh rate — High-grayscale chip and high refresh support stable on-camera performance and smooth motion.
• Black crystal matte surface — Reduces reflections for higher perceived contrast and optimized visuals.
• 500x500mm aluminum cabinet — 2x2 module array in a rigid aluminum chassis for fixed installations.
• Colorlight i9 receiver card — Cabinet is supplied with a Colorlight i9 Rx card for processor compatibility.
• Front and top maintenance — Serviceable in place for fast installation and upkeep.
• Optional power and signal redundancy — Dual power and signal options available within the series for added reliability.
• 2-year standard warranty — Backed by Planar warranty coverage.

Typical Applications

• Broadcast studios and on-camera backdrops
• Corporate experience centers and lobbies
• Control rooms and command centers
• Premium retail and showroom video walls

Technical Specifications

Frequently Asked Questions

What refresh rate does the ALF Series support?
It uses a high-grayscale chip and high refresh rate supporting up to 240Hz for stable on-camera performance and smooth motion.

What is the black crystal matte surface?
It is a low-reflection surface that reduces glare to deliver higher perceived contrast and optimized visuals.

Can this cabinet be serviced in place?
Yes. The ALF Series supports front and top maintenance access for fast installation and upkeep.

Is redundancy available?
Optional dual power and signal redundancy is available within the ALF Series. Contact Creation Networks to confirm the configuration for your project.

Which receiver card is included?
This configuration ships with a Colorlight i9 receiver card. Contact Creation Networks to confirm processor compatibility.

What warranty applies to this cabinet?
Planar provides a 2-year standard warranty. Contact Creation Networks to confirm coverage for your project.
