Planar 3x3 VM55MX-M Video Wall - VMC55MXM9
Product Overview

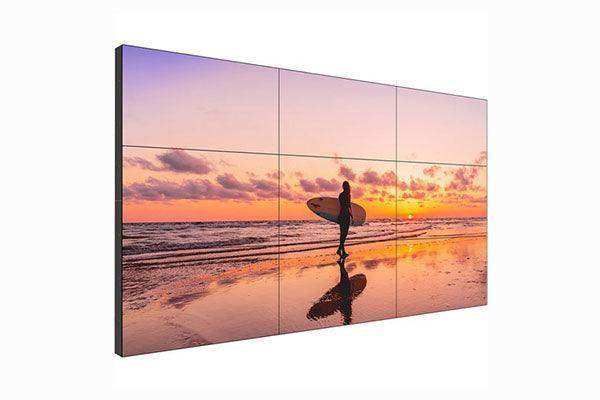

The Planar VM Complete VMC55MXM9 is a 3x3 LCD video wall system built from nine 55" VM55MX-M commercial-grade panels in landscape orientation, producing a 164" diagonal display surface. This Planar LCD video wall system achieves a tiled bezel width of just 0.88mm, delivering a near-seamless image plane at 700 nits brightness — well suited for retail environments, hospitality lobbies, and corporate reception areas where ambient light demands high panel output. The VMC55MXM9 package includes displays, mounts, and trim hardware, simplifying procurement for integrators building commercial display installations.
Product Description
The Planar VMC55MXM9 uses nine VM55MX-M 55" LCD panels with a 20,000:1 dynamic contrast ratio and 700 nit brightness rating, arranged in a 3x3 grid that produces an 80.4" tall by 11.9' wide display wall. The 0.88mm tiled bezel width minimizes visual interruption between panels, approaching the seamless appearance of direct-view LED at a lower per-unit cost. Each panel is ENERGY STAR certified, and the system is manufactured in the United States.
The VM55MX-M panels are purpose-built for video wall deployment, featuring the mechanical precision required for consistent gap alignment across all nine tiles. The included EasyAxis or equivalent mounting system allows for precise panel positioning and leveling during installation. Trim components finish the perimeter for a polished, professional appearance. At 164" diagonal, this system competes directly with large-format LED video walls while retaining the cost and image quality advantages of high-brightness LCD technology for content viewed at longer distances.
Key Features
- 3x3 Configuration — Nine 55" panels producing a 164" diagonal display wall.
- 0.88mm Tiled Bezel Width — Near-seamless tile joins for minimal visual interruption.
- 700 Nit Brightness — High output suitable for ambient light environments including retail and hospitality.
- 20,000:1 Dynamic Contrast Ratio — Deep blacks and vibrant highlights for mixed content.
- ENERGY STAR Certified — Meets energy efficiency requirements for commercial installations.
- USA Manufactured — Country of origin: United States.
- Displays, Mounts, and Trim Included — Complete hardware package for installation readiness.
- LCD Technology — Proven image uniformity and color stability across panels.
- 80.4" Height x 11.9' Width — Wide-format layout for lobby, retail, and large conference rooms.
- 3.7" Install Depth — Low-profile wall installation.
Typical Applications
- Retail flagship stores and showrooms requiring high ambient-light brightness
- Hotel lobbies and resort reception areas
- Corporate headquarters reception and main lobby displays
- Sports venues and stadium club-level areas
- Casino and entertainment venue digital signage walls
- University student centers and commons areas
Technical Specifications
| Specification | Detail |
|---|---|
| Model | VMC55MXM9 |
| Configuration | 3x3 (nine 55" panels) |
| Screen Size (Diagonal) | 164" |
| Display Type | LCD |
| Tiled Bezel Width | 0.88mm (34.6 mil) |
| Brightness | 700 nits |
| Dynamic Contrast Ratio | 20,000:1 |
| Height | 80.4" |
| Width | 11.9 ft |
| Depth | 3.7" |
| Color | Black |
| ENERGY STAR | Yes |
| Country of Origin | United States |
| Includes | Displays, mounts, trim |
Competitor Comparison
| Criteria | Planar VMC55MXM9 | Samsung IA Series 3x3 | LG LSCB Series 3x3 | Hikvision DS-D Series |
|---|---|---|---|---|
| Bezel Width | 0.88mm | ~1.7mm typical | ~1.7mm typical | ~3.5mm typical |
| Brightness | 700 nits | 500–700 nits | 500 nits | 350–500 nits |
| ENERGY STAR | Yes | Select models | Select models | No |
| Country of Origin | USA | South Korea/China | South Korea/China | China |
| Bundle Includes Trim | Yes | Extra cost | Extra cost | Extra cost |
| Dynamic Contrast | 20,000:1 | Up to 10,000:1 | Up to 5,000:1 | Up to 4,000:1 |
| TAA Compliance | Yes (US-made) | Select models | Select models | No |
| Warranty | Planar commercial | Samsung standard | LG standard | Hikvision standard |
Frequently Asked Questions
- Does this package include a video controller?
- The VMC55MXM9 includes displays, mounts, and trim. A video wall controller is not bundled in this SKU. Contact Creation Networks for compatible controller options.
- What is the visible gap between panels?
- The tiled bezel width is 0.88mm, making the seams between panels nearly imperceptible from typical viewing distances of 10 feet or more.
- Is this system suitable for 24/7 commercial operation?
- The VM55MX-M panels are commercial-grade displays designed for continuous operation in demanding environments.
- Can the panels be oriented in portrait mode?
- The VMC55MXM9 is configured in landscape orientation. Portrait orientation may be possible with alternate mounting hardware; consult Creation Networks for configuration options.
- What inputs do the panels support?
- Input specifications vary by video controller pairing. The VM55MX-M panels include standard commercial display inputs. Contact Creation Networks for a full I/O specification.
