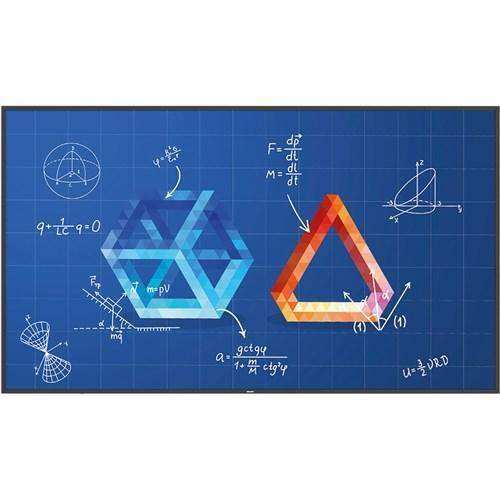

Philips 86BDL3552T/00 – 86" T-Line Interactive Classroom Display

Product Overview

The Philips 86BDL3552T/00 is an 86-inch T-Line 4K UHD interactive classroom display designed for K-12 and higher-education learning spaces as well as corporate training rooms. Its 20-point heat-enhanced infrared touch panel, anti-glare toughened glass, and integrated Android SoC let teachers annotate, whiteboard, and cast wirelessly without a dedicated PC. Rated for 18/7 commercial operation, it is built for heavy daily use across an academic schedule. For AV integrators, the OPS slot, RS232 serial control, and LAN-based CMND management simplify campus-wide deployment.

Product Description

Education technology buyers comparing interactive flat panel installations will find the 86BDL3552T delivers a 3840 x 2160 LED-backlit LCD panel at 350 cd/m2 brightness with a 500,000:1 dynamic contrast ratio — sized so an entire classroom can read fine text from the back row. The 20-point infrared touch system is HID compliant, so touch works plug-and-play with Windows, macOS, and Chrome devices, and the toughened anti-glare glass is engineered to withstand constant student interaction.

The integrated Android SoC runs native and web apps directly on the display, including built-in whiteboard mode, so a classroom can start a lesson without booting an external computer. When a managed Windows image is required, the OPS slot accepts a full slot-in PC — power and signal are handled internally with no external cabling. Connectivity includes four HDMI 2.0 inputs plus DisplayPort, DVI-I, USB-C, and multiple USB ports for room cameras and peripherals.

Wireless screen sharing supports multiple connected devices with four simultaneous feeds on screen, using the existing campus Wi-Fi or optional CastTo HDMI dongles for guest presenters who cannot join the secured network. For district-wide AV integration, IT teams can monitor and control the entire fleet over LAN with Philips CMND & Control, while RS232 and RJ45 ports tie into room control processors. Browse companion sizes — 65-inch and 75-inch T-Line models — in the Philips collection at Creation Networks.

Key Features

• 20-point HE IR multi-touch — Heat-enhanced infrared touch with HID compliance supports simultaneous multi-student writing with no driver installation.
• 86-inch 4K UHD panel — 3840 x 2160 resolution at 350 cd/m2 keeps lesson content sharp and legible across full-size classrooms.
• Anti-glare toughened glass — Hardened, glare-reducing glass stands up to heavy daily classroom usage and bright ambient light.
• Android SoC built in — Runs whiteboard, casting, and education apps natively, eliminating the cost of an external media player in many rooms.
• Built-in whiteboard mode — Turns the display into a multi-user canvas with capture, print, and file-sharing of board content.
• Wireless screen sharing — Connects multiple devices with up to four feeds on screen at once over Wi-Fi or optional CastTo dongles.
• OPS slot for embedded PC — Add a slot-in Windows OPS PC or Philips CRD50 Android module without external cabling or power supplies.
• CMND & Control fleet management — Monitor status, switch inputs, and maintain one display or one hundred over the local network.
• 18/7 commercial duty rating — Engineered for extended school-day and training-room operation, unlike consumer TVs.

Typical Applications

• Training room
• Conference room
• Multi-purpose room
• House of worship
• Government space
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Does this display work with our existing classroom PCs and Chromeboxes?
Yes. The touch panel is HID compliant, so 20-point touch works plug-and-play over USB with Windows, macOS, and Chrome OS sources — no drivers required.

Can we embed a Windows PC inside the display?
Yes. The OPS slot accepts a standard slot-in OPS PC or the Philips CRD50 Android module, with internal power and signal connections so no external cabling is needed.

How do IT teams manage these displays across a campus?
Philips CMND & Control runs over the LAN to monitor display status, switch inputs, and maintain firmware fleet-wide; RS232 and RJ45 also integrate with room control systems for scheduled power and input switching.

Is wireless casting available for guest presenters?
Yes. Wireless screen sharing works over the existing Wi-Fi network, and optional CastTo HDMI dongles allow visitors to cast directly without joining the secured network.

Is it rated for all-day school use?
Yes. The 86BDL3552T carries an 18/7 commercial operating rating with anti-glare toughened glass designed for heavy daily touch interaction.

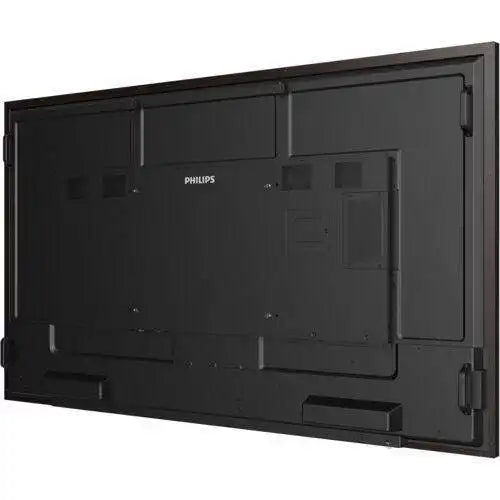

What mounting hardware does it use?
The display uses a standard VESA 600 x 400 mm pattern, compatible with common heavy-duty wall mounts and mobile carts for interactive panels of this size.
