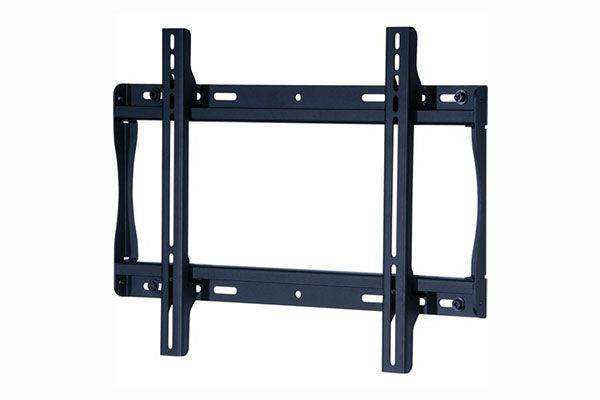

SF640P – Peerless-AV SmartMount Universal Flat Wall Mount for 32–50" Displays (Phillips Head)
The Peerless-AV SF640P is a low-profile universal flat wall mount for 32–50" displays, rated to 150 lb, featuring horizontal and vertical post-installation adjustment and a Hook-and-Hang single-person installation system. Hardware is installed using a standard Phillips screwdriver.
Product Description
The SF640P SmartMount Universal Flat Wall Mount brings together installation practicality and a finished low-profile appearance suited to boardrooms, digital signage environments, and hospitality applications. Its ultra-slim design holds the display just 1.3" from the wall surface, which is appropriate for spaces where a flush, architectural look is required without the complexity of a full recessed installation.
Post-installation adjustment is a meaningful advantage of the SF640P. Up to 6" of horizontal lateral shift allows the display to be centered on the wall after mounting without disturbing the fasteners, and vertical fine-tuning accommodates minor alignment corrections. The Hook-and-Hang system and Easy-Glide adaptor brackets simplify the hang to a one-person process, reducing installation time and the need for additional crew on site.
The SF640P mounts to one or two wood studs, concrete, cinder block, or metal studs (with optional accessory), covering the range of wall construction types found in commercial AV projects. The open wall plate design preserves access to wall cavity runs for power and low-voltage cabling. UL listed and tested to four times its stated load capacity, the SF640P meets the structural expectations of professional AV installations. Phillips head fasteners on this model are installed with a standard screwdriver; the SF640 variant uses security fasteners for tamper resistance.
Key Features
- Supports 32–50" displays with a rated weight capacity of 150 lb (68.2 kg).
- Ultra-slim profile holds the display 1.3" from the wall for a low-profile, finished appearance.
- Up to 6" (152 mm) of horizontal lateral shift allows post-installation display centering.
- Vertical adjustment of 0.3" (6 mm) per bracket for post-installation leveling fine-tuning.
- Hook-and-Hang system with Easy-Glide adaptors allows single-person installation.
- Compatible with VESA mounting-hole patterns from 400 x 400 mm to 450 x 405 mm.
- Mounts to wood studs (single or double), concrete, cinder block, or metal studs (accessory required).
- Open wall plate design maintains access to wall cavity for power and cable management.
- UL listed; tested to four times the stated load capacity.
- Phillips head fasteners installed with a standard screwdriver (security fastener variant: SF640).
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | SF640P |
| Supported Screen Sizes | 32–50" (81.3–127.0 cm) |
| Weight Capacity | 150 lb (68.2 kg) |
| VESA Mounting-Hole Pattern | 400 x 400 to 450 x 405 mm |
| Distance from Wall | 1.3" (3.3 cm) |
| Lateral Shift | 6.0" (15.2 cm) |
| Vertical Adjustment | 0.3" (0.6 cm) |
| Orientation | Landscape |
| Fastener Type | Phillips head (standard screwdriver) |
| Mount Dimensions | 21.7 x 10.7 x 1.6" (55.1 x 27.2 x 4.1 cm) |
| Package Weight | 5.4 lb |
| Box Dimensions (LxWxH) | 21.5 x 11 x 11" |
| Certifications | UL listed, RoHS |
