Peerless-AV PA762-UNMH – Hospitality Articulating Wall Mount 39-90in

What is the Peerless-AV PA762-UNMH hospitality articulating wall mount?

The Peerless-AV PA762-UNMH is a full-motion articulating wall mount for 39" to 90" displays, built for hospitality and guest-facing installs where fast, one-person installation matters. It extends up to 21.32" from the wall and retracts to 3.00", giving guest room and common area displays a wide range of viewing angles from a single mount. The PA762-UNMH is rated to 150 lb and supports a broad range of VESA patterns from 200 x 100mm up to 400 x 400mm, covering most commercial displays hotel and multi-dwelling projects specify at this size range.

What does the Peerless-AV PA762-UNMH do?

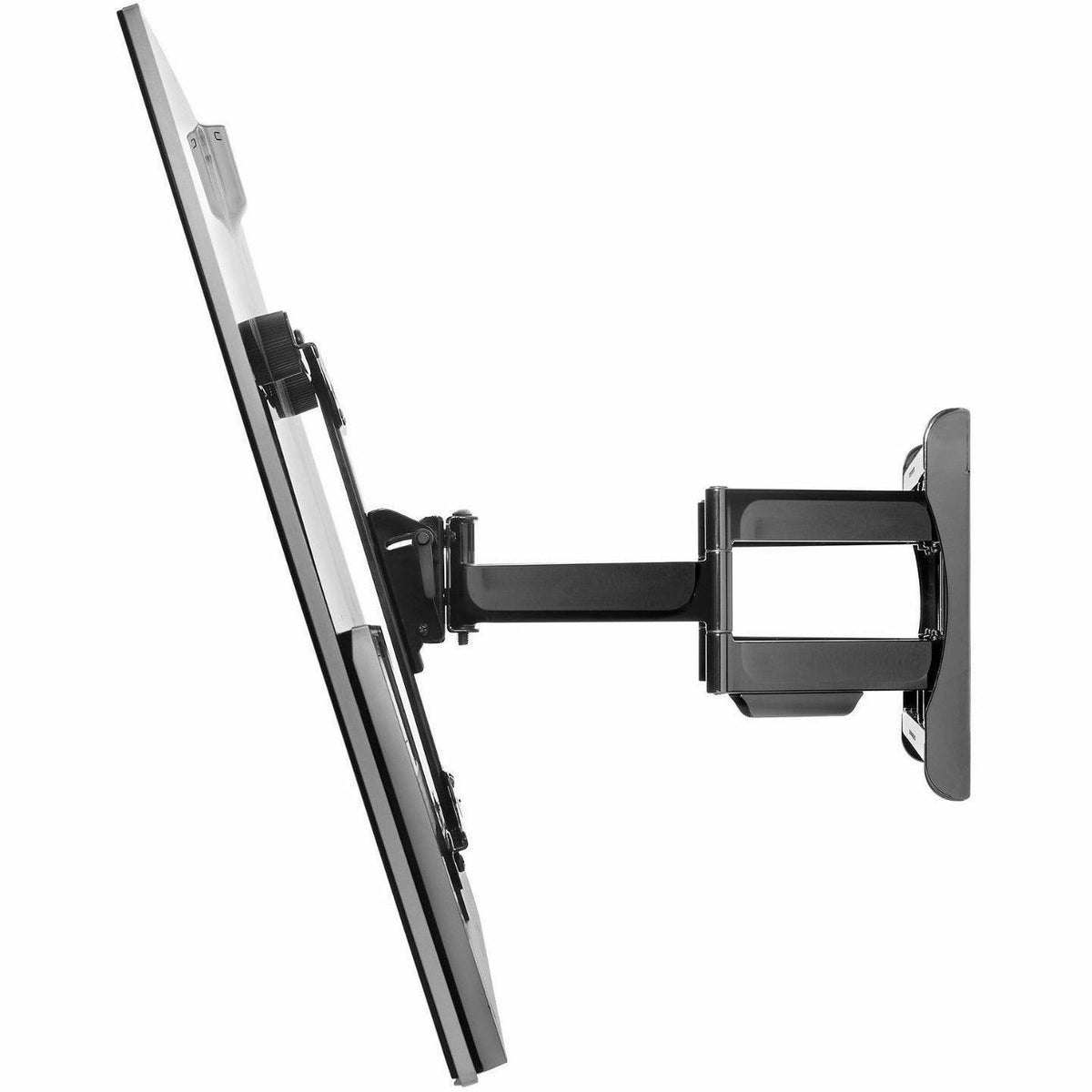

The PA762-UNMH's articulating arm extends the display up to 21.32" from the wall and pivots up to 90°, with -5° to 15° of tilt and ±45° of swivel for positioning the screen toward a bed, sofa, or common area seating that isn't centered on the wall — a frequent layout constraint in hotel guest rooms and hospitality common areas. The Hook-and-Hang installation system lets one technician lift the display onto the wall plate and engage it before final adjustment, which matters on hospitality projects where dozens or hundreds of identical mounts need to be installed on a tight schedule. A ratcheting handle locks the tilt angle securely once set, and 5° of post-installation roll levels the display on walls that aren't perfectly plumb. The I-shaped adaptor plate design keeps the display's rear inputs accessible rather than covered by the mount body, and integrated cable management routes HDMI and power cabling along the arm for a clean guest-facing appearance. High-gloss black finish matches the aesthetic hospitality projects typically specify. The mount is UL Listed, RoHS certified, TAA compliant, and VESA compatible, covering the certification requirements common to hospitality and multi-property procurement standards.

Key Features

• 21.32" extension with 90° pivot — positions the display toward guest seating or beds that aren't centered on the wall.
• Hook-and-Hang one-person installation — speeds up deployment across high-volume hospitality projects with many identical rooms.
• -5° to 15° tilt with ratcheting handle lock — secures the display angle once set.
• ±45° swivel and 5° post-install roll — fine-tunes positioning and levels the display after mounting.
• 150 lb weight capacity — rated for large-format 39"-90" hospitality displays.
• I-shaped adaptor plate — keeps rear display connections accessible.

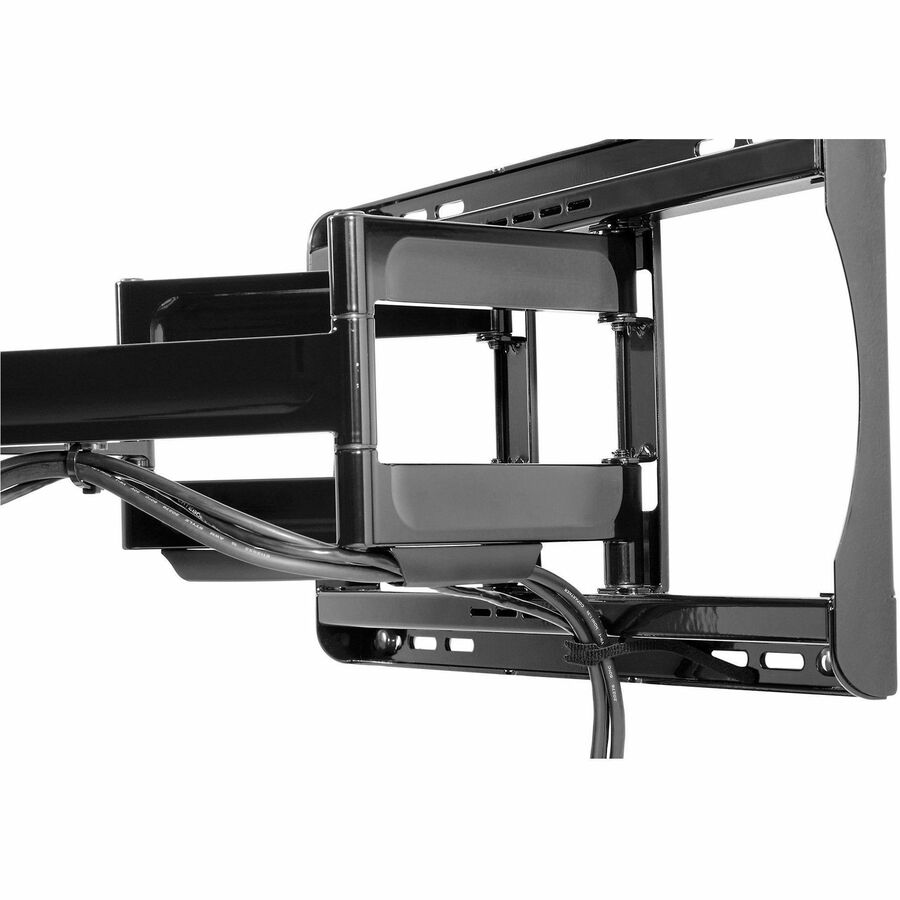

• Integrated cable management — routes cabling along the arm for a clean guest room appearance.
• UL Listed, RoHS, TAA compliant — meets standard hospitality procurement certification requirements.

Typical Applications

• Hospitality spaces
• Multi-purpose rooms
• Commercial meeting spaces
• Training rooms

Technical Specifications

Frequently Asked Questions

Why choose the PA762-UNMH over a standard articulating mount for a hospitality project?
Its Hook-and-Hang installation system and ratcheting tilt lock are designed for high-volume, repeatable installs across many identical guest rooms, which speeds up hospitality-scale deployments compared to a mount designed for one-off commercial installs.

What display sizes and VESA patterns does it support?
39" to 90" displays up to 150 lb, with VESA compatibility across patterns from 200 x 100mm to 400 x 400mm.

How far does the display extend and swivel?
Up to 21.32" from the wall with up to 90° of pivot and ±45° of swivel, allowing the display to be angled toward beds or seating not centered on the wall.

Can one technician install this mount alone?
Yes, the Hook-and-Hang system is designed for one-person installation, which is a key requirement on large hospitality rollouts.

Does the mount block access to display inputs?
No, the I-shaped adaptor plate keeps rear inputs accessible after installation.

What certifications does the PA762-UNMH carry?
It is UL Listed, RoHS certified, TAA compliant, and VESA compatible.

Can Creation Networks supply and install these mounts across a multi-property hospitality rollout?
Yes, Creation Networks handles nationwide procurement and installation for multi-property AV rollouts, including hospitality guest room and common area display deployments. See the HA746-STB for a companion hospitality mount with an integrated set-top box enclosure.
