Peerless-AV DS-LEDM-A27 – Modular dvLED Wall Mount for Absen Acclaim Plus/Pro
Peerless-AV DS-LEDM-A27 – Modular dvLED Wall Mount for Absen Acclaim Plus/Pro is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Peerless-AV DS-LEDM-A27 – Modular dvLED Wall Mount for Absen Acclai...
DS-LEDM-A27 – Modular dvLED Wall Mount for Absen Acclaim Plus/Pro Series

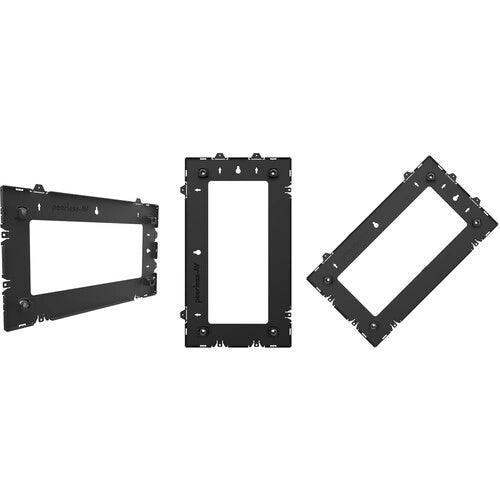

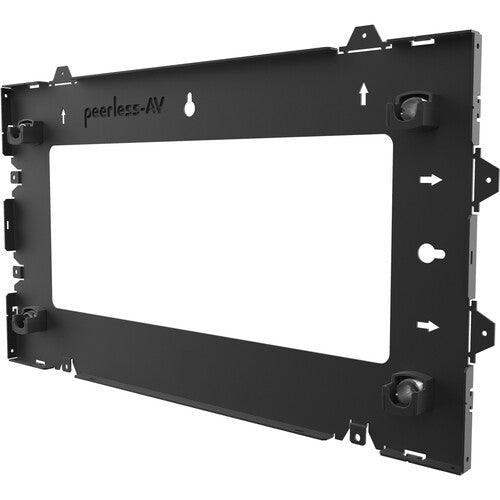

The Peerless-AV DS-LEDM-A27 is a 1:1 modular direct-view LED wall mount from the SEAMLESS Connect Series, designed exclusively for Absen Acclaim Plus and Acclaim Pro displays, with support for landscape, portrait, or 45-degree angle configurations and front- and rear-accessible depth adjustment.
Product Description
Direct-view LED video wall installations present structural and alignment challenges that standard flat panel mounts are not designed to address. The DS-LEDM-A27 is purpose-built for the Absen Acclaim Plus and Acclaim Pro dvLED series, with a 1:1 modular architecture that means each mount corresponds to a single display tile. This allows integrators to stock a single SKU and deploy it in any layout—landscape, portrait, or 45-degree diagonal—reducing pre-project inventory planning complexity.
Depth adjustment is accessible from both the front and back of the mount, allowing micro-corrections to the display plane after tiles are hung. The string alignment feature provides a reference line for vertical plane alignment across multiple tiles, a critical step in achieving a flat, artifact-free video wall surface. Interface bobbins are included for careful, controlled placement of display tiles onto the mount during installation.
Fold-away tabs provide precision display alignment during positioning and fold flush when not in use. Fixing points allow multiple mounts to be connected and hung simultaneously as a group, speeding up large-format video wall builds. The steel frame with powder coat finish provides long-term structural integrity, and Peerless-AV's SEAMLESS dvLED Video Wall Integration Program provides product support from initial planning through commissioning.
Key Features
- 1:1 modular mount designed exclusively for Absen Acclaim Plus and Acclaim Pro dvLED display tiles.
- Single SKU supports landscape, portrait, and 45-degree angle configurations, reducing inventory requirements.
- Depth adjustment accessible from both front and back of the mount for precise post-installation plane correction.
- String alignment feature provides a vertical reference for multi-tile plane alignment across the video wall.
- Included interface bobbins allow controlled, damage-free placement of display tiles during installation.
- Fold-away alignment tabs provide precision positioning reference and retract flush when not needed.
- Fixing points allow multiple mount units to be connected and hung simultaneously as an assembly.
- Powder coat steel frame construction; supported by Peerless-AV SEAMLESS dvLED Integration Program.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | DS-LEDM-A27 |
| Manufacturer | Peerless-AV |
| Product Series | SEAMLESS Connect |
| Compatible Display | Absen Acclaim Plus Series, Absen Acclaim Pro Series |
| Mount Configuration | Landscape, Portrait, or 45-degree angle |
| Dimensions (W × H × D) | 24.60" × 14.09" × 1.88"–2.23" (625 × 358 × 48–57 mm) |
| Product Weight | 4.8 lb (2.2 kg) |
| Load Capacity | 88 lb (40 kg) |
| Finish | Powder Coat |
| Color | Black |
| Package Size (W × H × D) | 28.00" × 17.00" × 2.00" (711 × 432 × 51 mm) |
| Package Ship Weight | 6.4 lb (2.9 kg) |
| Package Contents | Mount, mounting hardware, depth adjustment key |
| UPC | 735029339441 |
| Country of Origin | United States |
| Warranty | Lifetime (1 year per product data) |
