Peerless-AV MOD-FCS2KIT300-B – Dual-Pole Floor-to-Ceiling Mount Kit

Product Overview

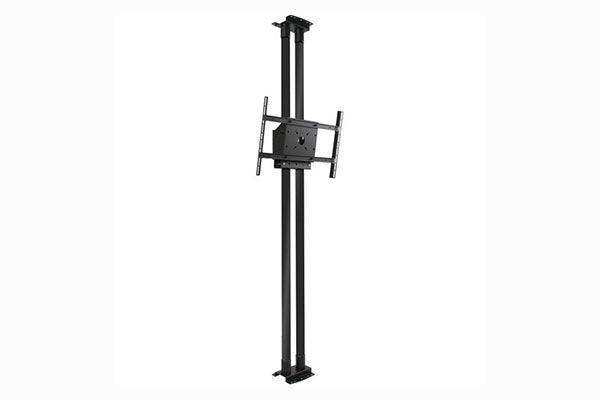

The Peerless-AV MOD-FCS2KIT300-B is a dual-pole floor-to-ceiling display mount kit for commercial flat panels from 46" to 90". Built on the Modular Series 2" pole system, it anchors to both the floor and the ceiling to support a single large display in the middle of a room without relying on a wall. The poles cut to length on the job site, so the mount adapts to the exact ceiling height of the space. It is suited to open-floor digital signage in retail, transportation, and commercial meeting environments.

Product Description

The MOD-FCS2KIT300-B is a complete floor-to-ceiling kit designed to remove the guesswork from a free-span installation. It is engineered around a 2" (50mm) diameter pole that can be cut to length in the field, making it suitable both for new construction and for upgrading existing installations. The flat floor and ceiling plates secure to wood or concrete surfaces for a stable, safe anchor at both ends. The display mount tilts +20/-5 degrees to set the viewing angle once the display is in place.

As a dual-pole floor-to-ceiling display mount, this kit ships with everything needed for the structure: two flat ceiling/floor plates, two 118" (3m) extension poles, a single display mount, a display stacking clamp, and a large universal adaptor. The powder-coat black finish suits commercial interiors where the structure is visible to the public. Integrators specifying free-standing or suspended signage can compare this kit with related Modular Series structures in the Peerless-AV collection at Creation Networks.

Key Features

• Floor-to-Ceiling Span — Anchors to both the floor and ceiling to support a display in open floor space without a wall.
• 46" to 90" Display Support — Accommodates large commercial flat-panel displays across this size range.
• Cut-to-Length Poles — The 2" (50mm) poles can be trimmed on site to match the exact ceiling height.
• +20/-5 Degree Tilt — The display mount tilts forward and back to set the optimal viewing angle.
• Secure Plate Anchoring — Flat floor and ceiling plates fasten to wood or concrete for a stable installation at both ends.
• Complete Kit — Includes two flat plates, two 118" extension poles, a display mount, a stacking clamp, and a large universal adaptor.
• Commercial Finish — Powder-coat black construction suits visible installations in public commercial spaces.

Typical Applications

• Retail floors and showrooms requiring mid-space signage
• Transportation hubs and transit information areas
• Commercial meeting spaces and multi-purpose rooms
• Hospitality lobbies and open-plan reception areas
• Corporate all-hands rooms and large training rooms

Technical Specifications

Frequently Asked Questions

What display sizes does this kit support?
The MOD-FCS2KIT300-B supports flat-panel displays from 46" to 90".

How does a floor-to-ceiling mount install?
The dual poles anchor to both the floor and ceiling using flat plates fastened to wood or concrete, supporting a display in open floor space without a wall.

Can the poles be shortened to fit my ceiling height?
Yes. The 2" (50mm) poles are designed to be cut to length on the job site to match the ceiling height.

Can the display be angled after installation?
Yes. The display mount tilts +20/-5 degrees to set the viewing angle.

What comes in the kit?
The kit includes two flat ceiling/floor plates, two 118" (3m) extension poles, a single display mount, a display stacking clamp, and a large universal adaptor.

Is it suitable for new and existing installations?
Yes. The cut-to-length pole design makes it suitable for both new construction and upgrades to existing spaces.
