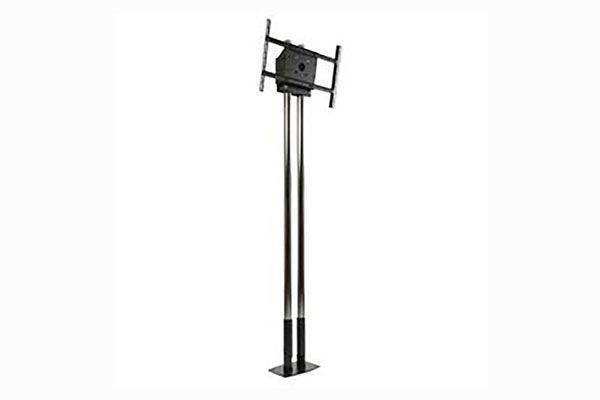

Peerless-AV MOD-FPP2KIT200 – Dual Pole Free-Standing Display Mount

Product Overview

The Peerless-AV MOD-FPP2KIT200 is a dual pole free-standing display mount kit for large-format flat panels from 46" to 90". Part of the Modular Mount Series, it pairs a heavy-duty pedestal floor plate with two 78" zinc-plated poles to support a single display up to 211 lb (96 kg). The kit ships with every core component an AV integrator needs to build a floor-mounted signage pedestal, with poles that cut to length on site.

Product Description

This dual pole floor mount is built for commercial deployments where displays need a freestanding footprint rather than a wall, such as showrooms, lobbies, and digital signage installations. The heavy-duty pedestal floor plate bolts to wood or concrete floors for stability and security, and the dual 2" (50 mm) diameter poles add rigidity behind heavier and larger panels. The included large universal adaptor supports VESA mounting patterns up to 600 x 400 mm, and a quick-connect hook-on display mount tilts from +20 to -5 degrees and locks at every 5-degree increment. Integrated cable management runs power and signal through the poles with open access at both ends. The modular design also lets integrators stack a second display or build back-to-back configurations using Peerless-AV accessories, supporting a maximum system load of 411 lb (192 kg). The poles can be cut to length on the job site for new builds or retrofits. Browse the full Peerless-AV collection at Creation Networks for related mounting hardware.

Key Features

• Dual Pole Free-Standing Design — Two 2" (50 mm) zinc-plated poles on a pedestal floor plate add stability for large, heavy displays.
• 211 lb Per-Display Capacity — Supports a single display up to 211 lb (96 kg), with a 411 lb (192 kg) maximum system load in multi-display builds.
• Universal Display Adaptor — Fits 46" to 90" displays with VESA mounting patterns up to 600 x 400 mm.
• Quick Connect Tilt — Hook-on display mount tilts from +20 to -5 degrees and locks at every 5-degree increment.
• Cut-to-Length Poles — The 78" extension poles can be trimmed on site to set the exact display height.
• Integrated Cable Management — Cabling routes through the poles with open access at both ends for clean installation.
• Modular Expansion — Additional displays can be stacked or mounted back-to-back using Peerless-AV accessories.

Typical Applications

• Retail showrooms and display floors
• Corporate lobbies and reception areas
• Trade shows and exhibition spaces
• Transportation and wayfinding signage
• Multi-purpose and commercial meeting spaces

Technical Specifications

Frequently Asked Questions

What display sizes and weights does the MOD-FPP2KIT200 support?
It supports 46" to 90" displays up to 211 lb (96 kg) per display.

What is included in the kit?
The kit includes a pedestal floor plate, two 78" extension poles, a single display mount, a display stacking clamp, a large universal adaptor, plus mounting hardware and instructions.

Can the poles be shortened?
Yes. The 2" (50 mm) diameter poles can be cut to length on the job site to set the exact display height.

Can I mount more than one display?
Yes. The modular design supports stacked or back-to-back configurations using Peerless-AV accessories, with a maximum system load of 411 lb (192 kg).

How does the mount attach to the floor?
The heavy-duty pedestal floor plate bolts to wood or concrete floors for stability and security.

What VESA patterns are supported?
The included universal adaptor supports VESA mounting patterns up to 600 x 400 mm.

What warranty is included?
Peerless-AV provides a limited 5-year warranty.
