Peerless-AV SUA771PU – Ultra Slim Articulating Wall Mount

Product Overview

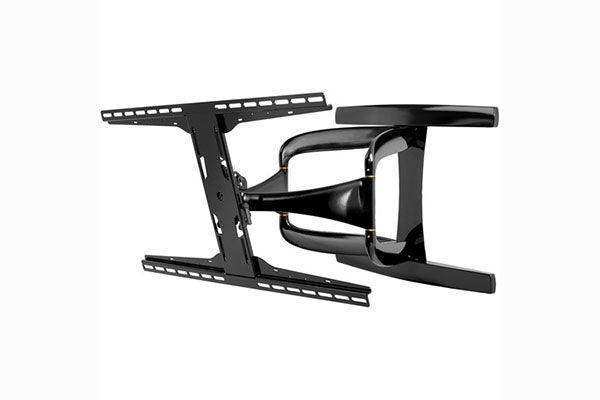

The Peerless-AV SUA771PU is a DesignerSeries universal ultra slim articulating wall mount built for thin commercial displays from 42" to 90". Its dual-arm design holds large screens firmly in landscape or portrait while keeping the display close to the wall, making it a strong choice for boardrooms, conference rooms, and digital signage. The mount carries up to 125 lb and adjusts with One-Touch tilt, swivel, and post-installation leveling. An I-shaped adaptor plate keeps connections and cables accessible behind the display.

Product Description

The SUA771PU is one of the slimmest articulating wall arm mounts available, designed specifically for ultra-thin displays where the screen must sit tight to the wall yet still extend and pivot for viewing and service. Its dual-arm construction is rigid enough to hold larger displays steady in any position, landscape or portrait, while the arms extend up to 24.85" (631mm) from the wall and retract to just 1.85" (47mm). The One-Touch tilt mechanism allows +15/-5 degrees of adjustment without tools, and the mount adds plus or minus 5 degrees of roll for fast post-installation leveling plus up to plus or minus 0.5" (13mm) of vertical adjustment. The I-shaped adaptor plate makes it easy to reach the back of the display, hides hardware, and includes internal cable management for a clean install. With universal compatibility for mounting patterns from 200 x 100 to 800 x 400mm, it fits a wide range of commercial panels. Browse comparable articulating wall mounts in the Peerless-AV collection on Creation Networks.

Key Features

• Ultra Slim Profile — The mount keeps thin displays close to the wall while still allowing the arms to extend and articulate.
• Dual-Arm Construction — Two arms hold large displays firmly in landscape or portrait without sag.
• 125 lb Load Capacity — Supports ultra-thin displays from 42" to 90" weighing up to 125 lb.
• One-Touch Tilt — Provides +15/-5 degrees of tilt adjustment without the use of tools.
• Post-Installation Leveling — Plus or minus 5 degrees of roll and up to plus or minus 0.5" (13mm) of vertical adjustment fine-tune the display after mounting.
• Wide Extension Range — Arms extend up to 24.85" (631mm) and retract to 1.85" (47mm) from the wall.
• I-Shaped Adaptor Plate — Keeps rear connections accessible, hides hardware, and routes cables through internal cable management.
• Universal VESA Compatibility — Fits mounting patterns from 200 x 100 to 800 x 400mm.

Typical Applications

• Boardrooms and conference rooms
• Huddle rooms and training rooms
• Corporate lobbies and digital signage
• House of worship and auditorium displays
• Retail and hospitality environments

Technical Specifications

Frequently Asked Questions

What displays does the SUA771PU support?
It is designed for 42" to 90" ultra-thin displays weighing up to 125 lb, with VESA patterns from 200 x 100 to 800 x 400mm.

Can it mount a display in portrait?
Yes. The dual-arm design holds displays firmly in landscape or portrait orientation.

How far does it extend from the wall?
The arms extend up to 24.85" (631mm) for viewing and service and retract to 1.85" (47mm) for an ultra-slim parked position.

Does it adjust without tools?
Yes. The One-Touch tilt provides +15/-5 degrees and the plus or minus 5 degrees of roll allow tool-free leveling after installation.

How are cables managed?
The I-shaped adaptor plate keeps rear connections accessible and routes cables through internal cable management for a clean appearance.

What warranty is included?
The SUA771PU is backed by a Peerless-AV limited 5-year warranty.
