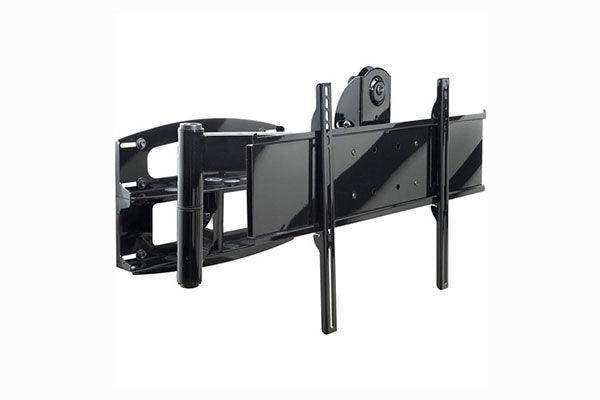

Peerless-AV PLA60 Articulating Arm Wall Mount for 37"-65" Displays

PLA60 – Peerless-AV Articulating Arm Wall Mount for 37"–65" Flat Panel Displays

The Peerless-AV PLA60 articulating arm wall mount delivers a flexible, all-steel mounting solution for flat panel displays ranging from 37" to 65", making it an ideal choice for commercial AV installations that demand reliable positioning and clean aesthetics.

Product Description

The PLA60 is engineered to handle displays up to 95" and support weights up to 175 lb, making it one of the most capable articulating arms in the Peerless-AV lineup. Its all-steel construction provides the structural integrity required for permanent commercial installations, while the self-lubricating bushings allow the arm to extend and retract with minimal friction over years of daily use.

Three pivot points deliver up to 180° of swivel, giving integrators and end users a full range of display positioning without the need for secondary hardware. Five adjustable horizontal arm positions at 2.6" (66mm) centers allow lateral placement adjustments after initial installation, accommodating a wide variety of wall layouts and display configurations.

Adjustable tilt of +10°/-5° and 7° of roll for post-installation leveling ensure the display can be dialed in precisely even when wall surfaces are imperfect. Cable management is handled by an included mesh cord sheath and cable ties that keep wiring organized and protected along the arm length.

Key Features

• All-steel construction supports displays up to 175 lb, providing the structural strength required for permanent commercial and hospitality installations.
• Self-lubricating bushings allow the arm to extend and retract smoothly, reducing wear and maintaining consistent action over the life of the installation.
• Three pivot points with up to 180° swivel enable versatile display positioning across a wide arc without additional hardware.
• Five horizontal arm positions at 2.6" (66mm) centers allow lateral display placement adjustments to suit varied wall configurations.
• Universal mounting interface accommodates displays with hole patterns up to 730 x 433mm (28.75"W x 17.05"H), covering the majority of commercial flat panel formats.
• Adjustable tilt of +10°/-5° and 7° of roll for post-installation leveling enable precise display alignment after mounting.
• Arm extends up to 32.37" (822mm) from the wall, providing the reach needed to position displays over counters, furniture, or angled surfaces.
• Included mesh cord sheath and cable ties route cables neatly along the arm, maintaining a professional appearance in customer-facing environments.

Typical Applications

The PLA60 is well suited for corporate lobbies, hotel guest rooms, executive boardrooms, and public information display installations where the ability to reposition a display after initial mounting adds long-term value. Its reach and swivel range also make it appropriate for digital signage deployments in retail and hospitality environments where viewing angles must serve audiences from multiple directions.

Technical Specifications

Frequently Asked Questions

What is the maximum display size the PLA60 can support?

The PLA60 is rated for displays from 37" to 65", but its structural capacity supports screens up to 95" and loads up to 175 lb when the display's mounting pattern falls within the supported VESA range of 730 x 433mm.

Can the display be repositioned after the mount is installed?

Yes. The PLA60 provides five horizontal arm positions at 2.6" centers for lateral adjustment, up to 180° swivel across three pivot points, +10°/-5° tilt, and 7° of roll — all adjustable after the mount has been secured to the wall.

Is the PLA60 appropriate for professional commercial installations?

The PLA60 is built for demanding commercial environments including hotel rooms, corporate boardrooms, lobbies, and public display areas. Its all-steel construction and self-lubricating bushings are designed for durability in high-use settings.
