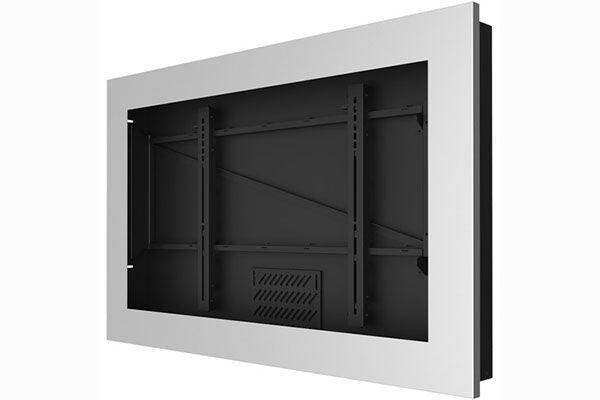

Peerless-AV KIL755-S – 55" Landscape In-Wall Kiosk

Product Overview

The Peerless-AV KIL755-S is a landscape in-wall kiosk enclosure that recesses a 55" display into a standard wood-stud wall for a near-flush digital signage presentation. With a finished profile of less than 1" from the wall, it delivers a minimalist large-format signage look that integrates cleanly into new construction or retrofit walls. This commercial-grade in-wall kiosk ships pre-assembled with extending mount arms, a removable front cover, and a thermostat-controlled fan, giving integrators a serviceable, low-profile platform for high-end digital signage.

Product Description

The KIL755-S is intended for premium environments where the display should appear built into the wall rather than mounted on it. The enclosure installs within standard wood-stud wall framing and accommodates ultra-thin 55" displays up to 3.10" (78mm) thick, while the finished face extends only about 1" (25mm) from the wall to meet Americans with Disabilities Act clearance requirements. A powerful, thermostat-controlled fan pulls air into the enclosure to keep the display and any integrated media player within their normal operating temperature range during extended signage runtime.

Service access is built in: a removable front cover and pull-out, extending mount arms let a technician reach the display and internal components without dismantling the wall, and eight-way micro adjustment positions the screen for flush window alignment. The enclosure supports VESA patterns from 200 x 200 up to 400 x 600mm and a range of aesthetic options including glass or acrylic, custom colors, and vinyl wraps. This unit is finished in silver. For comparable signage and mounting hardware, browse the full Peerless-AV collection at Creation Networks.

Key Features

• In-Wall Low-Profile Design — The enclosure extends only about 1" (25mm) from the wall to meet Americans with Disabilities Act clearance requirements while fitting within standard wood-stud walls.
• Fits 55" Ultra-Thin Displays — Accommodates landscape 55" displays up to 3.10" (78mm) thick.
• Thermostat-Controlled Fan — A powerful fan pulls air into the enclosure to keep the display and electronics properly cooled.
• Removable Front Cover — The front cover lifts off for direct access to the display and internal components during maintenance.
• Extending Pull-Out Mount Arms — Mount arms extend outward to ease installation and servicing of the display.
• Eight-Way Micro Adjustment — Vertical, horizontal, and depth adjustment quickly positions the display for flush window alignment.
• VESA 200 x 200 to 400 x 600mm — A wide mounting-pattern range supports most commercial signage displays up to 75 lb (34 kg).
• Customizable Aesthetics — Supports glass or acrylic, custom colors, and vinyl wraps to match the environment or promote a brand.
• Pre-Assembled — The kiosk ships pre-assembled to simplify installation of the complete solution.

Typical Applications

• Hospitality lobbies and hotels
• Retail stores and showrooms
• Corporate and commercial meeting spaces
• Entertainment venues
• Transportation hubs and wayfinding points
• Education and healthcare facilities

Technical Specifications

Frequently Asked Questions

What display does the KIL755-S fit?
It is built for 55" landscape ultra-thin displays up to 3.10" (78mm) thick, weighing up to 75 lb, using VESA patterns from 200 x 200 up to 400 x 600mm.

Does it mount into the wall?
Yes. The enclosure installs within standard wood-stud wall framing so the display sits near-flush, with the finished face extending only about 1" (25mm) from the wall.

Is it ADA compliant?
Yes. The roughly 1" (25mm) wall standoff meets Americans with Disabilities Act clearance requirements.

How is the display kept cool?
A thermostat-controlled fan pulls air into the enclosure to keep the display and any integrated electronics within their normal operating range.

How are the display and components serviced?
A removable front cover and extending pull-out mount arms provide access to the display and internal components without dismantling the wall.

Can the kiosk be customized?
It supports glass or acrylic, custom colors, and vinyl wraps; this model ships in a silver finish.

What warranty is included?
Peerless-AV provides 5 years on metal components and 1 year on electronic components.
