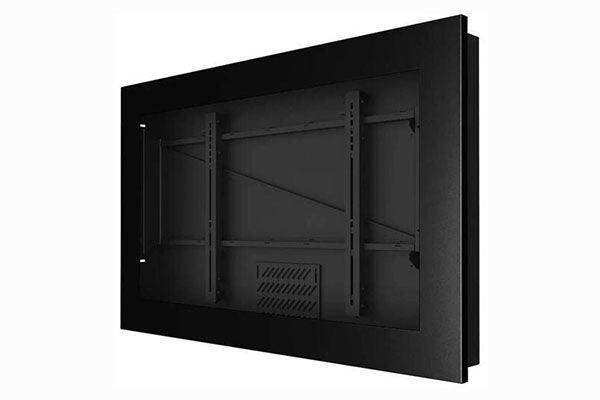

Peerless-AV KIL748 – 48" Landscape In-Wall Kiosk Enclosure

Product Overview

The Peerless-AV KIL748 is a 48-inch landscape in-wall kiosk enclosure designed for permanent commercial digital signage installations in retail environments, corporate lobbies, transportation hubs, and hospitality venues. This ADA-compliant landscape kiosk enclosure ships pre-assembled to reduce on-site labor, and its 1-inch low-profile wall extension makes it one of the slimmest in-wall digital signage enclosures available for integrators specifying tight-clearance installations. Purpose-built for commercial AV system designers seeking a landscape interactive kiosk solution with integrated display support and ventilation management.

Product Description

The KIL748 in-wall landscape kiosk enclosure from Peerless-AV accommodates flat panel displays up to 48 inches in a landscape orientation, fitting within standard wood stud wall construction. The enclosure extends just 1 inch (25mm) from the wall surface, satisfying ADA protrusion requirements for accessible public spaces. Thermostat-controlled circulation fans actively manage heat buildup inside the enclosure, protecting the display and any co-located media player or peripheral equipment from thermal stress during extended operating hours.

The pullout mount and removable front cover give technicians direct access to the display and internal components without requiring tools for disassembly, simplifying both routine maintenance and content hardware swaps. An eight-way tool-less display adjustment system allows installers to position the panel flush within the kiosk window for a polished, professional finish. VESA compatibility spans 200×200mm up to 400×600mm, covering the mounting patterns of most commercial displays in the 40-to-50-inch range.

Aesthetic flexibility is a design priority: the enclosure supports glass or acrylic front panels, multiple powder-coat color options, and vinyl wrap finishes to match brand environments or blend with architectural interiors. Custom sizing is available for projects where standard display dimensions do not apply. The KIL748 carries a 5-year limited warranty and RoHS environmental certification, reflecting Peerless-AV's commitment to product longevity and responsible manufacturing.

Key Features

• Pre-Assembled Construction — Ships ready to install, reducing on-site labor time for integrators and facilities teams.
• ADA-Compliant 1" Wall Projection — Extends only 25mm from the wall surface, meeting Americans with Disabilities Act protrusion standards for public spaces.
• Thermostat-Controlled Circulation Fans — Actively regulates internal enclosure temperature to protect the display and peripheral electronics during continuous operation.
• Eight-Way Tool-Less Display Adjustment — Allows precise positioning of the display within the kiosk window for a flush, finished appearance without specialty tools.
• Pullout Mount with Removable Front Cover — Provides fast access to the display and internal components for maintenance or hardware changes, improving total cost of ownership.
• VESA 200×200 to 400×600mm Compatibility — Supports a broad range of commercial flat panel displays commonly specified for digital signage applications.
• Accommodates Displays up to 3.10" (78mm) Deep — Fits within standard wood stud wall framing without requiring special wall reinforcement in most installations.
• Customizable Aesthetics — Available with glass/acrylic fronts, multiple color finishes, and vinyl wrap options to align with brand or interior design specifications.
• Custom Sizing Available — Non-standard display sizes can be accommodated through Peerless-AV's custom fabrication program.
• 5-Year Limited Warranty — Backed by Peerless-AV's industry-standard commercial warranty for long-term project confidence.

Typical Applications

• Retail digital signage and interactive product displays
• Corporate lobby wayfinding and information kiosks
• Transportation hub flight and schedule information displays
• Hospitality check-in and concierge information stations
• Government and municipal public information terminals
• Healthcare facility wayfinding and patient information kiosks
• Multi-purpose room digital directories

Technical Specifications

Frequently Asked Questions

Q: Does the KIL748 ship pre-assembled or as a kit requiring field assembly?

A: The KIL748 ships pre-assembled. The pullout mount and structural frame arrive ready to install into a standard wood stud rough opening, reducing on-site labor and the potential for misassembly during installation.

Q: Is the KIL748 ADA compliant for installations in publicly accessible areas?

A: Yes. The KIL748 extends only 1 inch (25mm) from the finished wall surface, meeting the Americans with Disabilities Act protrusion requirements for wall-mounted objects in accessible circulation paths.

Q: What display brands and models are compatible with the KIL748?

A: The KIL748 is display-agnostic and supports any flat panel with VESA mounting holes between 200×200mm and 400×600mm, a screen size up to 48 inches, and a depth no greater than 3.10 inches (78mm). Most major commercial display manufacturers in this size class are compatible.

Q: Can a media player or other peripheral be housed inside the enclosure alongside the display?

A: Yes. The enclosure is designed to accommodate a media player, signal distribution equipment, or other small-form-factor electronics alongside the display. The thermostat-controlled fans help manage the additional heat load these components generate.

Q: How does a technician access the display for service or hardware changes after installation?

A: The front cover is removable and the mount pulls out from the wall, providing direct access to the display and internal components. This eliminates the need to open the wall or remove the entire enclosure for routine maintenance.

Q: Is custom sizing available for non-standard display dimensions?

A: Yes. Peerless-AV offers custom fabrication for projects requiring enclosure dimensions outside the standard KIL748 specification. Contact Creation Networks at creationnetworks.net/pages/contact to discuss custom sizing requirements.

Q: What finish and front panel options are available?

A: The standard finish is gloss black. The enclosure supports glass or acrylic front panels and can be finished in alternative powder-coat colors or vinyl wraps to match a specific brand palette or architectural environment.

Q: What is the warranty coverage on the KIL748?

A: Peerless-AV provides a 5-year limited warranty on the KIL748 enclosure. This covers manufacturing defects in the enclosure structure, mount mechanism, and integrated fan system under normal commercial use conditions.
