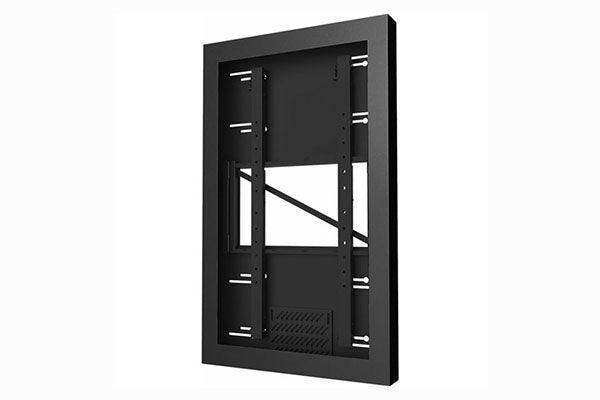

Peerless-AV KIP640 – 40-inch Portrait Wall Kiosk Enclosure

Product Overview

The Peerless-AV KIP640 is a portrait wall kiosk enclosure built to turn a 40" commercial display into a finished digital signage station. Designed for indoor environments, this wall-mounted digital signage kiosk holds an ultra-thin display along with the media player, cabling, and thermal management hardware needed for a complete deployment. Its ADA-compliant 3.97" profile lets integrators add interactive wayfinding, advertising, and informational signage to corridors and lobbies without obstructing foot traffic.

Product Description

The KIP640 wall kiosk enclosure accepts most 40" displays up to 2" (50mm) thick and mounts them in portrait orientation behind a hinged, locking front frame. Eight-way tool-less adjustment lets the installer position the display flush within the kiosk window, while thermostat-controlled circulation fans maintain proper airflow around the panel and any internal electronics. The hinged locking frame and pull-out mount give technicians fast access to the display and media player for maintenance without removing the enclosure from the wall.

This commercial digital signage enclosure supports a wide range of finishing options, including custom colors, vinyl wraps, and glass or acrylic fronts, so the kiosk can match a brand standard or interior design scheme. It is well suited to high-traffic public spaces where a clean, secure presentation is required. Integrators specifying multiple units can compare related portrait and in-wall models in the Peerless-AV collection at Creation Networks.

Key Features

• Portrait Wall Kiosk Design — Houses most 40" displays up to 2" (50mm) thick in portrait orientation for digital signage, advertising, and interactive wayfinding.
• ADA-Compliant Profile — Extends just 3.97" (101mm) from the wall to meet Americans with Disabilities Act clearance requirements in public corridors.
• Eight-Way Tool-Less Adjustment — Positions the display flush within the kiosk window for precise alignment without tools.
• Thermostat-Controlled Cooling — Circulation fans regulate temperature inside the enclosure to protect the display and media player.
• Hinged Locking Frame — Secures the display against tampering while hinging open for fast installation and service access.
• VESA Compatibility — Accommodates mounting patterns from 200 x 200mm up to 600 x 400mm for broad display compatibility.
• Brandable Finishing — Supports custom colors, vinyl wraps, and glass or acrylic fronts to match any environment.

Typical Applications

• Retail and shopping center digital signage
• Hospitality lobbies and guest information displays
• Corporate lobbies and reception areas
• Education campus wayfinding and announcements
• Healthcare facility directories and check-in
• Transportation hubs and entertainment venues

Technical Specifications

Frequently Asked Questions

What size display does the KIP640 support?
The KIP640 is designed for most 40" commercial displays up to 2" (50mm) thick, mounted in portrait orientation.

Does the enclosure meet ADA requirements?
Yes. The low-profile design extends only 3.97" (101mm) from the wall, which meets Americans with Disabilities Act clearance requirements for public corridors.

Can it house a media player and other electronics?
Yes. The enclosure has internal space for a media player, cabling, and thermal management hardware, and includes thermostat-controlled fans to maintain airflow.

How is the display secured and accessed?
A hinged locking frame and pull-out mount secure the display against tampering while allowing technicians fast access for installation and maintenance.

What VESA patterns are compatible?
The KIP640 accommodates mounting patterns from 200 x 200mm up to 600 x 400mm.

Can the kiosk be customized to match our branding?
Yes. It supports custom colors, vinyl wraps, and glass or acrylic fronts to align with brand or interior design standards.

What warranty is included?
Peerless-AV backs the KIP640 with a 5-year warranty on metal components and a 1-year warranty on electronic components.
