Peerless-AV MOD-FPSKIT100 – 1M Modular Flat Panel Ceiling Mount Kit (Zinc)

MOD-FPSKIT100 – 1M Modular Flat Panel Ceiling Mount Kit (Zinc)

The Peerless-AV MOD-FPSKIT100 is a complete modular ceiling mount kit for commercial flat panel displays from 32 to 60 inches, providing integrators with a configurable, single-person installation solution with a 39-inch (1 m) zinc-plated drop.

Product Description

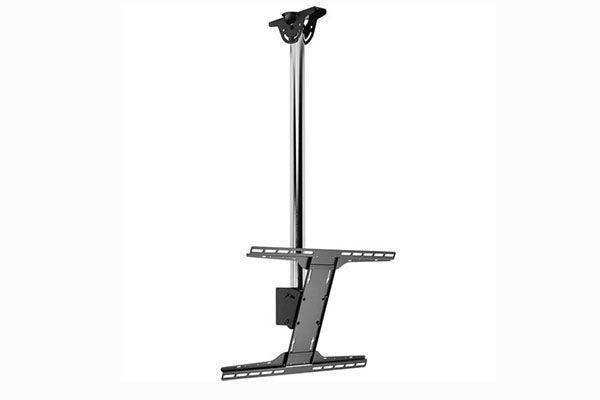

The MOD-FPSKIT100 was developed in response to installer feedback calling for a ceiling mount system that reduces SKU count without sacrificing flexibility. It ships as a complete kit containing a cathedral ceiling plate, a 39-inch zinc-plated extension pole, a single display flat panel mount, and a large universal adaptor—everything needed to hang a flat panel display from the ceiling in a single purchase.

The flat panel mount itself uses a quick-connect hook-on design with tilt adjustment from +20° to −5° that locks at 5° increments, enabling the installer to precisely set the viewing angle once and have it remain fixed. The universal adaptor supports displays up to 75 inches with VESA patterns up to 600×400 mm, covering the majority of commercial panels available today. Integrated cable management runs through the pole with open access at both ends for straightforward wiring during installation.

Because it is built on the Modular Series platform, the MOD-FPSKIT100 can be expanded or reconfigured with additional Peerless-AV Modular Series components. Integrators can swap the pole for a longer or shorter drop, add accessories, or repurpose individual components across other projects, maximizing value from a single product family.

Key Features

• Complete ceiling mount kit — Includes cathedral ceiling plate, 39" zinc pole, flat panel mount, and large universal adaptor—no supplementary accessories required for a standard installation.
• Supports displays 32–60" with VESA up to 600×400 mm — The large universal adaptor accommodates commercial panels with VESA mounting patterns up to 600×400 mm and up to 75" in size.
• Quick-connect hook-on design — Allows a single installer to hang the display without assistance; the hook-on mechanism provides a secure preliminary attachment before final fastening.
• Tilt adjustment +20° to −5° in 5° increments — Display angle locks precisely at each increment, preventing drift over time and ensuring the viewing angle set during commissioning is maintained.
• Adjustable cathedral ceiling plate (±60°) — Accommodates vaulted, sloped, or angled ceilings without custom fabrication or shimming.
• Integrated internal cable management — Cables route through the pole with open access at both ends, simplifying wiring and producing a clean finished installation.
• Modular expandability — Compatible with the full range of Peerless-AV Modular Series accessories for custom configurations, extended drops, or alternative ceiling attachment methods.
• Installs to wood joist, concrete, or truss/pipe — Works with standard ceiling structures; a U-bolt adapter accessory (MOD-AUB, sold separately) enables truss and pipe installations.

Typical Applications

The MOD-FPSKIT100 is well-suited for hanging commercial displays in conference rooms, classrooms, hotel lobbies, retail environments, and healthcare waiting areas where a 39-inch ceiling drop is appropriate. Its one-person installation design and modular architecture make it a preferred choice for AV integrators managing high-volume rollout projects across multiple locations.

Technical Specifications

Frequently Asked Questions

Can the MOD-FPSKIT100 be installed by one person?

Yes. The kit is specifically designed for single-person installation. The quick-connect hook-on feature allows the installer to safely hang the display on the mount before securing the final fasteners.

What if I need a longer or shorter drop than 39 inches?

The Modular Series platform allows you to swap in a different length extension pole. Other Peerless-AV Modular Series poles are available at creationnetworks.net to match your specific ceiling height requirement.

Does the kit include hardware for concrete ceiling installation?

The kit supports wood joist and concrete installations using the supplied hardware. Truss and pipe installations require the optional MOD-AUB u-bolt adapter, sold separately.
