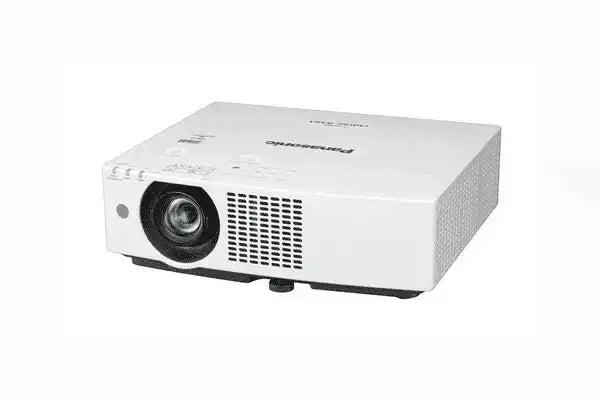

Panasonic PT-VMW61U7 6,200 lm WXGA Laser LCD Projector / Digital Link / 4K Signal Input

Product Overview

The Panasonic PT-VMW61U7 is a 6,200-lumen WXGA laser 3LCD projector for meeting spaces and classrooms that need bright, legible images with the lights on. It combines a laser light source, Digital Link single-cable signal extension, and 4K signal input, making it a strong fit for conference room and lecture-hall AV systems. Built-in 1.6x optical zoom and lens shift give integrators placement flexibility, while support for Crestron Connected, Extron, AMX, and PJLink simplifies control-system integration. It supports 360-degree installation for permanent commercial deployments.

Product Description

The PT-VMW61U7 delivers WXGA (1,280 x 800) resolution with a 3,000,000:1 contrast ratio from a 3-chip LCD laser engine, producing vivid color and deep blacks suitable for data and video. Daylight View Basic uses an ambient-light sensor to optimize halftone color and brightness in lit rooms, and 6-point screen correction with V/H lens shift (+44% to 0% vertical, ±20% horizontal) and 1.6x zoom allows projection onto angled surfaces and off-axis screens. Digital Link carries video, audio, and control over a single cable for clean rack-to-projector runs, and the reusable ECO Filter is rated to roughly 20,000 hours of typical use. For a WUXGA-resolution alternative, compare the Panasonic PT-VMZ61U7; for a lower-brightness WXGA sibling, see the Panasonic PT-VMW51U7; and for a budget WUXGA model without Digital Link, the Panasonic PT-VMZ51SU7.

Key Features

• 6,200-Lumen Laser Light Source — Bright enough for fully lit conference rooms and classrooms.
• WXGA 3LCD Engine — Native 1,280 x 800 resolution with a 3,000,000:1 contrast ratio.
• Digital Link — Carries video, audio, and control over a single cable for clean installation runs.
• 4K Signal Input — Accepts 4K source signals for compatibility with modern playback devices.
• 1.6x Zoom and Lens Shift — 1.09–1.77:1 throw with +44% vertical and ±20% horizontal shift for flexible placement.
• Daylight View Basic — Ambient-light sensing that optimizes image clarity in bright rooms.
• Control-System Support — Works with Crestron Connected, Extron, AMX DD, and PJLink.
• Reusable ECO Filter — Low-maintenance filter rated to about 20,000 hours of typical use.
• 360-Degree Installation — Free orientation with 0.5W standby for permanent commercial mounting.
• Built-In 10W Speaker and Mic Input — Onboard audio with microphone input for presentation rooms.

Typical Applications

• Conference room — Bright WXGA presentations with single-cable Digital Link runs.
• Training room — Legible content in lit instructional spaces with mic input for the presenter.
• Multi-purpose room — 360-degree installation and 6-point correction for non-standard mounting.
• House of worship — Low-maintenance laser operation with control-system integration.
• Commercial meeting space — Crestron/Extron/AMX integration for managed AV environments.

Technical Specifications

Specifications sourced from Panasonic / vendor data. Exact lumen center/peak rating method, native aspect handling, input/output connector counts, light-source life hours, dimensions, and weight require manual review against the current Panasonic PT-VMW61U7 spec sheet.

Frequently Asked Questions

What resolution is the PT-VMW61U7? It is a WXGA (1,280 x 800) projector that also accepts a 4K signal input. For native WUXGA (1,920 x 1,200), consider the PT-VMZ61U7 linked above.

Does it support single-cable installation? Yes. Digital Link carries video, audio, and control over one cable, simplifying rack-to-projector runs in fixed installations.

Which control systems does it work with? It supports Crestron Connected, Extron, AMX DD, and PJLink for integration into managed AV environments.

How much maintenance does it require? The laser light source and reusable ECO Filter are designed for low maintenance, with the filter rated to roughly 20,000 hours of typical use. Confirm service intervals for your duty cycle.

Can it be mounted at an angle or on the ceiling? Yes. It supports free 360-degree installation, and 6-point correction plus lens shift help align off-axis or angled projection.

Is warranty and support available through Creation Networks? Yes. This is a genuine Panasonic commercial projector; contact Creation Networks for warranty terms, stock, and integration support.
