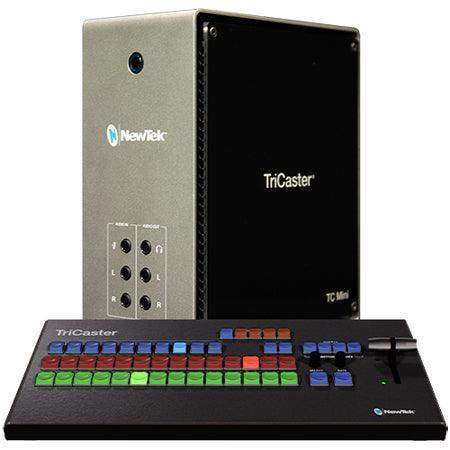

Vizrt TCMXHDMIB TriCaster Mini X HDMI Bundle

Product Overview

The Vizrt TriCaster Mini X HDMI Bundle is a complete HDMI-based live production kit that packages the TriCaster Mini X HDMI chassis with essential accessories for immediate deployment. Designed for broadcast engineers, AV integrators, and live production directors working in HDMI-native environments, the Mini X accepts four HDMI inputs and up to eight NDI sources simultaneously, producing output up to 4K. The bundle format ensures all necessary peripherals are included at purchase, reducing configuration time and procurement steps for production teams deploying across multiple venues or installations.

Product Description

The TriCaster Mini X HDMI Bundle (SKU: TCMXHDMIB) builds on the base Mini X HDMI platform with an accessory kit configured for immediate live production deployment. The Mini X chassis accepts four HDMI video inputs at resolutions up to DCI 4K at 25/29.97fps and 1080p at up to 59.94fps, plus eight concurrent NDI IP video sources over standard Gigabit Ethernet. Four mini DisplayPort outputs — each bundled with HDMI adapters — drive monitoring, multiview, and program feeds simultaneously. Processing latency of 1 to 1.5 frames maintains tight synchronization across sources and outputs. The integrated software handles live switching, chroma keying (LiveMatte), virtual sets (30+ included), real-time graphics, multi-channel audio mixing, streaming, and recording within a single interface. Live Link renders web pages as live sources directly in the production, eliminating third-party browser capture tools. USB-C and five USB-A 3.2 ports extend connectivity for external storage, audio devices, and peripherals. The compact, fanless-compatible desktop design deploys in boardrooms, broadcast studios, house of worship applications, and field production environments without requiring rack mounting.

Key Features

• 4x HDMI Video Inputs — Accepts HDMI cameras and devices directly at resolutions up to DCI 4K 29.97fps and 1080p 59.94fps.
• 8x NDI IP Video Inputs — Simultaneously handles NDI-enabled cameras, software encoders, and converters over standard network infrastructure.
• 4x Mini DisplayPort Outputs with HDMI Adapters — Drives program, preview, and multiview monitoring simultaneously; adapters included for standard HDMI display connectivity.
• 4K Processing Resolution — Internal processing at DCI 4K with 4:4:4 YCbCr color for high-fidelity video compositing and switching.
• 1 to 1.5 Frame Latency — Low processing latency maintains synchronization across all sources and outputs in live production environments.
• LiveMatte Chroma Key — Integrated chroma and luma keying on all source channels and M/E buses for virtual set compositing without external hardware.
• 30+ Live Virtual Sets — Broadcast-quality 3D virtual environments with real-time reflections and animated transitions included out of the box.
• Live Link Web Integration — Renders web pages as live production sources for training content, lower-thirds data, and HTML graphics without third-party capture.
• Multi-Channel Audio Mixer — 96kHz audio processing with 1/4" TRS analog I/O, HDMI embedded audio, headphone monitoring, and DSP tools.
• Bundle Accessories Included — Keyboard, mouse, and four mini DisplayPort-to-HDMI adapters included for immediate deployment.
• Wi-Fi Connectivity — Built-in Wi-Fi for network connectivity in environments without direct Ethernet access.
• Desktop Form Factor — Compact portable chassis for boardroom, field, and installation deployments without rack mounting.

Typical Applications

• Broadcast studio
• House of worship
• Boardroom
• Conference room
• Training room
• Auditorium
• Multi-purpose room
• Campus athletics

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is included in the TriCaster Mini X HDMI Bundle?

The bundle includes the TriCaster Mini X HDMI chassis, keyboard, mouse, four mini DisplayPort-to-HDMI output adapters, and a power cable. All components required for immediate operation are included.

Does the Mini X HDMI support 4K output?

The Mini X processes internally at DCI 4K resolution and supports 4K switching and media playback. HDMI input accepts DCI 4K at 25/29.97fps. Output via mini DisplayPort (with included HDMI adapters) carries the program feed to connected displays and monitors.

Can the Mini X HDMI accept SDI cameras?

No. The Mini X HDMI accepts HDMI inputs only on the physical chassis. SDI cameras require an external SDI-to-HDMI or SDI-to-NDI converter such as the Vizrt Spark Plus series before connecting to the Mini X.

How many simultaneous sources can the Mini X HDMI handle?

The Mini X accepts four HDMI inputs and eight NDI sources simultaneously for a total of 12 concurrent sources in the production switcher.

What streaming platforms are supported?

The Mini X supports streaming to YouTube Live, Facebook Live, Twitch, and any RTMP-compatible streaming platform.

What warranty does the bundle include?

The TriCaster Mini X HDMI Bundle includes a 1-year limited manufacturer warranty from Vizrt on all components.
