Vizrt NC2I/O Studio I/O Module - FG-003244-R001

Product Overview

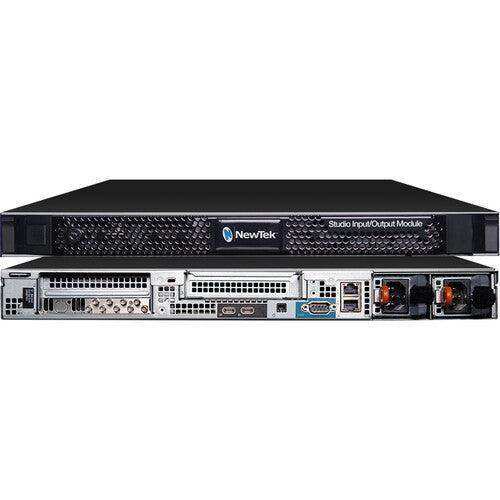

The Vizrt NC2 I/O Studio I/O Module (FG-003244-R001) is a professional 1 RU rack-mounted video and audio I/O module providing up to 8 channels of dynamic SDI I/O with NDI 5 support, 10 Gigabit Ethernet connectivity, and multi-format signal conversion in a single rack unit. Designed for broadcast studios and system integrators building high-density IP video infrastructure, the NC2 I/O supports configurations ranging from 8x 3G-SDI channels up to 2x 12G-SDI with 4x 3G-SDI, with each channel independently configurable for resolutions up to 2160p60. A racking kit is included.

Product Description

The NC2 I/O Studio Module functions as a high-performance SDI-to-NDI and NDI-to-SDI gateway for broadcast facilities transitioning to or building out IP production workflows. Its 10 Gigabit Ethernet connection provides sufficient bandwidth for multiple concurrent 4K NDI streams, and NDI 5 support ensures compatibility with the latest NDI features and protocol improvements. Each of the up to 8 I/O channels is independently configurable, supporting SD, HD, 3G-SDI, 6G-SDI, and UHD 12G-SDI with quad-link grouping — giving engineers the flexibility to match the module's channel configuration to the actual signal mix in their facility. Beyond signal conversion, the NC2 I/O includes a built-in video server with extensive file format support for media playback and recording on any channel, a unified multiviewer interface with selectable layouts and professional video scopes for in-rack monitoring, and audio I/O via Dante, AES-67, and ASIO/WDM software drivers. The racking kit supports industry-standard 19" racks with depth from 620mm to 905mm (front-to-back rail). For broadcast engineers deploying TriCaster, 3Play, or other NDI production systems in permanent facilities, the NC2 I/O provides a clean, high-channel-density interface between the IP network and the SDI signal chain — consolidating functions that would otherwise require multiple separate devices.

Key Features

• Up to 8 Channels of Dynamic SDI I/O — Configurable as 8x 3G-SDI, 2x 12G-SDI + 4x 3G-SDI, or mixed configurations per facility requirements.
• NDI 5 Support — Compatible with all NDI 5 features and the latest NDI protocol standards.
• 10 Gigabit Ethernet — High-bandwidth network connection supporting multiple concurrent 4K NDI streams.
• Per-Channel Independent Configuration — Each channel independently set for resolution up to 2160p60, format, and I/O direction.
• 12G-SDI Support with Quad-Link — Handles 12G-SDI signals and quad-link grouping for UHD 4K SDI sources.
• Built-In Video Server — Media file playback and recording on any channel with broad file format support.
• Integrated Multiviewer with Scopes — Selectable multiviewer layouts and professional video scopes for in-rack signal monitoring.
• Dante, AES-67, and ASIO/WDM Audio — Multiple professional audio I/O protocols for integration with broadcast audio infrastructure.
• 1 RU Rack-Mount with Racking Kit Included — 1 RU chassis with racking kit supporting 19" racks from 620mm to 905mm depth.

Typical Applications

• Broadcast studio SDI-to-NDI gateway and I/O infrastructure
• Permanent TriCaster and 3Play facility installations requiring high-density I/O
• Mobile production trucks with mixed SDI/IP signal chains
• Regional broadcast facilities building IP-based production infrastructure
• Sports production facilities with high channel count requirements

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What SDI channel configurations are supported by the NC2 I/O?

The NC2 I/O can be configured as 8x 3G-SDI, 2x 12G-SDI with 4x 3G-SDI, or mixed configurations in between. Each channel is independently configurable.

Does the NC2 I/O require a 10GbE switch?

The unit's network connection is 10 Gigabit Ethernet. For full multi-channel 4K NDI performance, a 10GbE network switch at the rack is recommended.

Is the racking kit included?

Yes. The FG-003244-R001 includes a racking kit compatible with 19" racks from 620mm to 905mm depth (front-to-back rail).

What audio protocols does the NC2 I/O support?

The module supports Dante, AES-67, and ASIO/WDM software audio drivers, providing broad compatibility with professional broadcast audio infrastructure.

Can the NC2 I/O handle media playback as well as live signal conversion?

Yes. The built-in video server supports media file playback and recording on any channel, in addition to live SDI/NDI signal conversion, reducing the number of separate devices required in the signal chain.

Is the NC2 I/O compatible with TriCaster and 3Play systems?

Yes. NDI 5 support ensures direct compatibility with TriCaster and 3Play systems, and the module can serve as a high-density SDI I/O expansion for any NDI-based production infrastructure.
