Netgear M4350-24X8F8V 24-Port 10G/Multi-Gig PoE++ Fully Managed AV Switch with 8x SFP+ and 8x 25G - XSM4340V-100NES

Product Overview

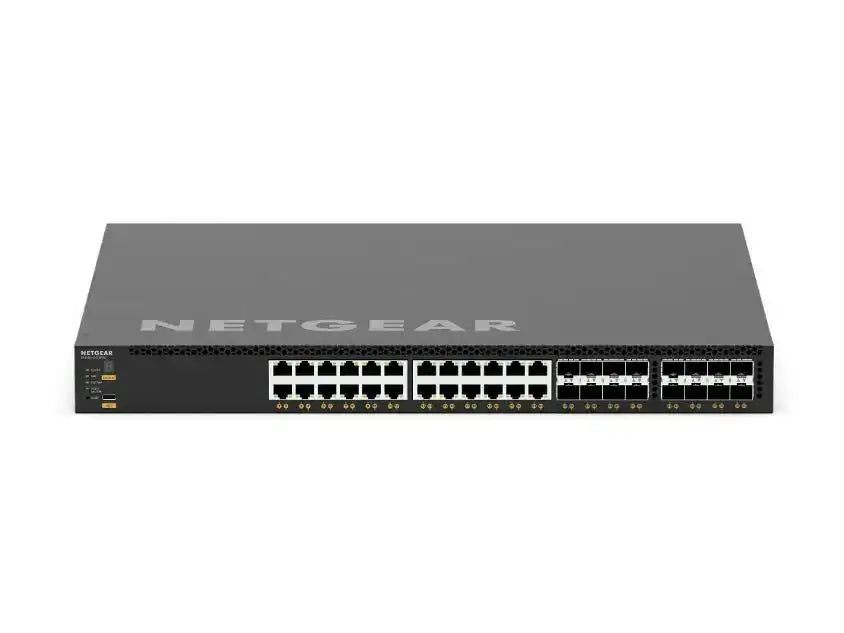

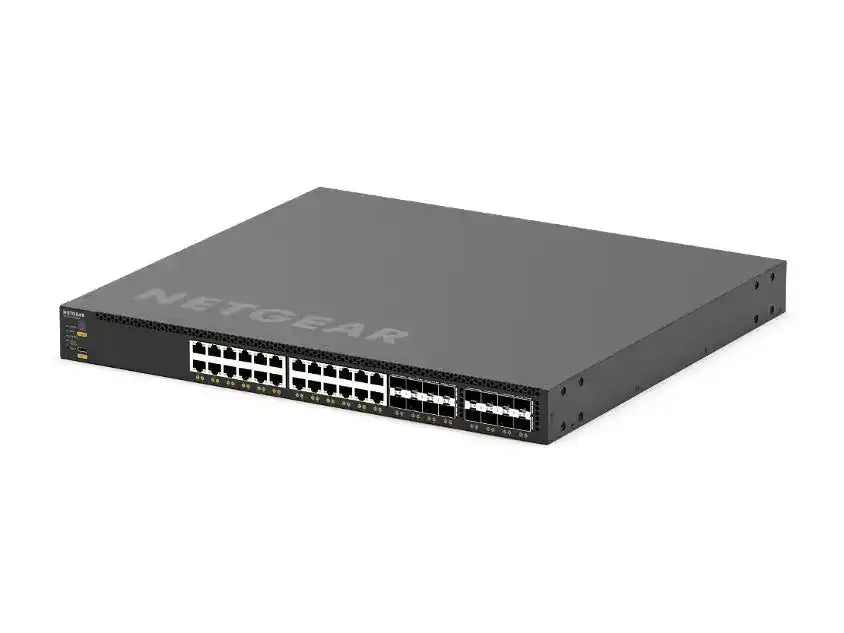

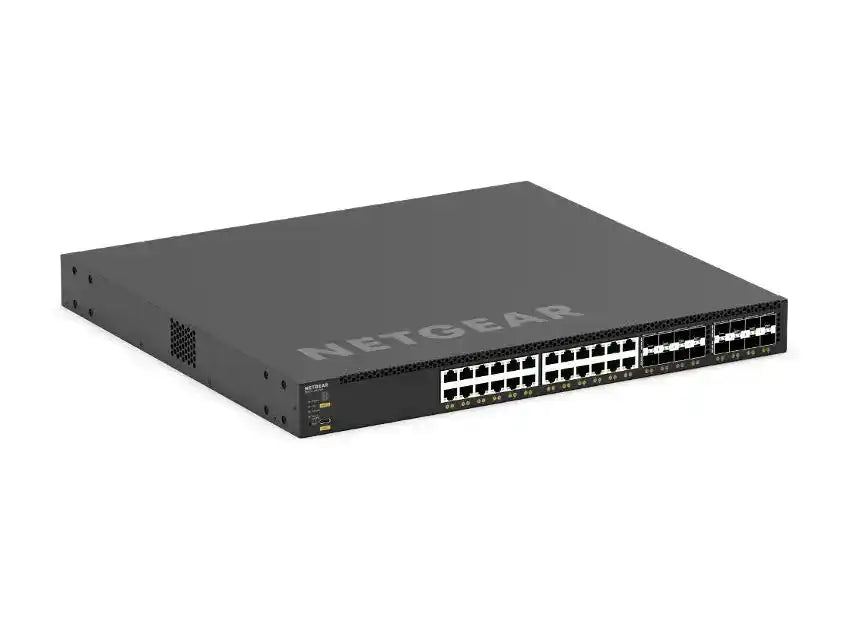

The NETGEAR M4350-24X8F8V (XSM4340V-100NES) is a fully managed AV switch that combines 24 Multi-Gigabit PoE++ access ports, eight 10G SFP+ ports, and eight 25G SFP28 ports in a single 1U chassis. This 24-port 10G Multi-Gig PoE++ switch is engineered for AV-over-IP networks that need copper endpoint power, 10G fiber distribution, and 25G aggregation in one device. As a Layer 3 AV switch, the M4350-24X8F8V collapses access, distribution, and aggregation tiers so integrators can standardize on a single platform across a deployment.

Product Description

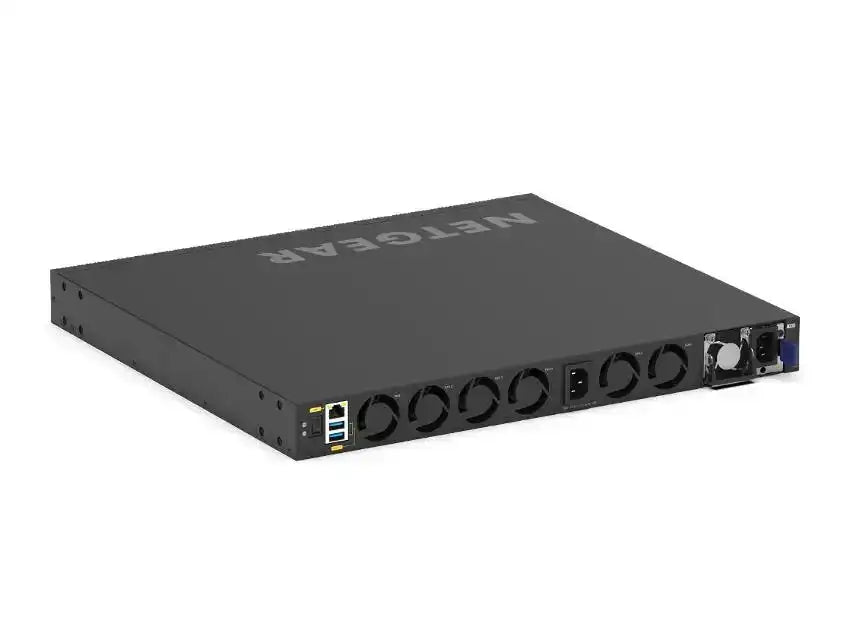

The M4350-24X8F8V delivers 24 RJ45 ports that negotiate 100M/1G/2.5G/5G/10G and supply IEEE 802.3bt PoE++ at up to 90W per port for powered AV endpoints, encoders, decoders, and access points. Eight 10GBASE-X SFP+ ports handle fiber distribution and inter-switch links, while eight 25GBASE-X SFP28 ports provide high-bandwidth uplinks and aggregation. A 750W internal power supply provides a 290W PoE budget, and a single modular power supply slot accepts an APS600Wv3, APS1200Wv2, or APS2000Wv2 for 1+1 redundancy or EPS share. With a redundant supply installed, the total PoE budget can reach 1,770W while the base 290W remains protected. The switch ships with the NETGEAR AV User Interface and Engage Controller, which apply one-click profiles for common AV-over-IP transports and use NETGEAR IGMP Plus for Layer 2 multicast management without PIM. Virtual Chassis stacking adds non-stop forwarding (NSF) and hitless failover, and the Layer 3 feature set covers static, policy-based, and dynamic routing.

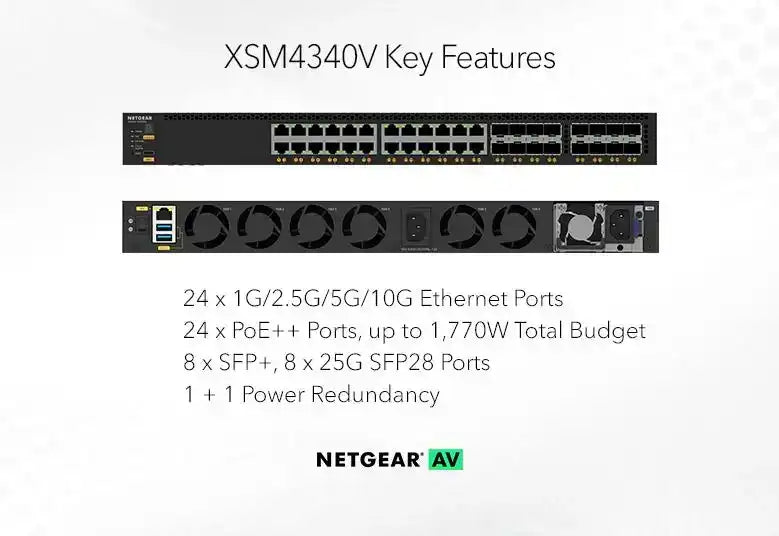

Key Features

• 24x 10G/Multi-Gig PoE++ ports — RJ45 ports auto-negotiate 100M/1G/2.5G/5G/10G and deliver IEEE 802.3bt power up to 90W per port for high-draw AV endpoints.
• 8x 10G SFP+ ports — 10GBASE-X fiber ports for distribution links and inter-switch connectivity.
• 8x 25G SFP28 ports — 25GBASE-X ports for high-bandwidth aggregation and uplinks to core infrastructure.

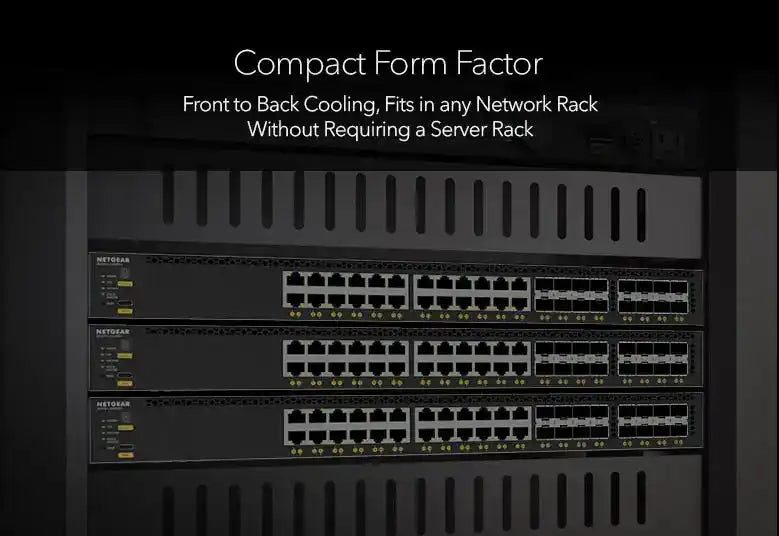

• Three AV tiers in 1U — access, distribution, and aggregation consolidated into a single rack-mount chassis.
• Flexible PoE budget — 290W base from the internal 750W supply, expandable to 1,770W with a modular redundant supply.
• Modular PSU slot — accepts APS600Wv3, APS1200Wv2, or APS2000Wv2 for 1+1 redundancy or EPS share.
• NETGEAR AV UI and Engage Controller — one-click AV-over-IP profiles with no additional licensing required.
• NETGEAR IGMP Plus — Layer 2 multicast management for AV-over-IP without PIM configuration.
• Virtual Chassis stacking — non-stop forwarding and hitless failover across stacked units.
• Full Layer 3 routing — static, policy-based, and dynamic routing with advanced QoS and security.
• TAA-compliant SKU available — a TAA option supports government and regulated procurement.

Typical Applications

• House of worship — multi-tier AV networks combining PoE++ copper endpoints with 10G and 25G fiber links.
• Broadcast studio — mixed copper-fiber distribution for production and contribution feeds.
• Auditorium — distributed rack rooms on fiber with local PoE++ devices.
• Government space — complex multi-tier AV-over-IP architectures with a TAA procurement path.
• Commercial meeting space — campus distribution serving both AV endpoints and inter-building fiber.
• All-hands room — large-venue AV aggregation across multiple zones.

Technical Specifications

Frequently Asked Questions

How much PoE power does the M4350-24X8F8V provide?
The internal 750W supply provides a 290W PoE budget across the 24 IEEE 802.3bt ports. Adding a modular APS600Wv3, APS1200Wv2, or APS2000Wv2 supply can raise the total PoE budget to 1,770W while retaining a 290W redundant budget.

What AV-over-IP systems does it work with?
The NETGEAR AV User Interface and Engage Controller provide one-click profiles for common AV-over-IP transports, and NETGEAR IGMP Plus manages multicast at Layer 2 without PIM. Confirm specific device compatibility with your AV manufacturer before deployment.

Can I stack multiple units?
Yes. Virtual Chassis stacking links multiple units with non-stop forwarding and hitless failover for higher port counts and resilience.

Is a TAA-compliant version available for government projects?
Yes. A TAA-compliant SKU is available; contact our team for the correct part number and lead time.

What is the warranty?
This switch is covered by the NETGEAR ProSAFE Limited Lifetime Hardware Warranty. Contact us for advance-replacement support options.
