Netgear GSM4230PX-100NAS AV LINE M4250-26G4XF-POE+ 24X1G POE+ 480
Product Overview

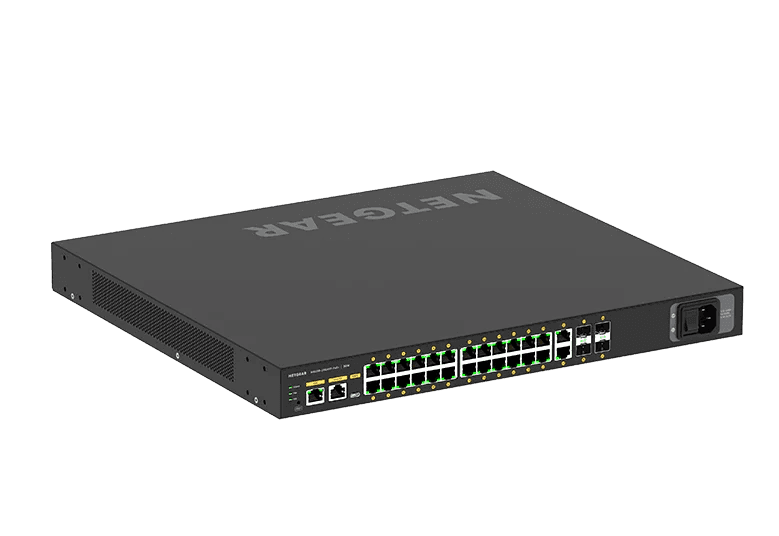

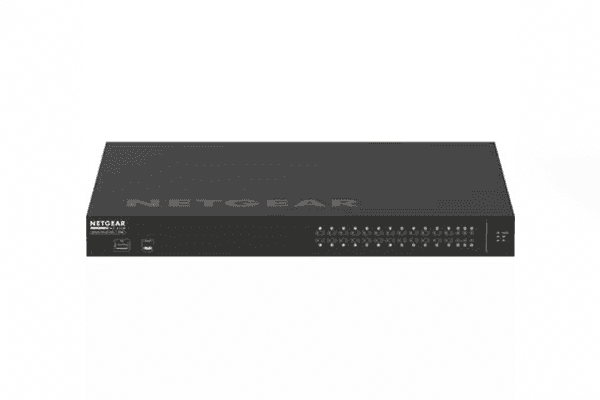

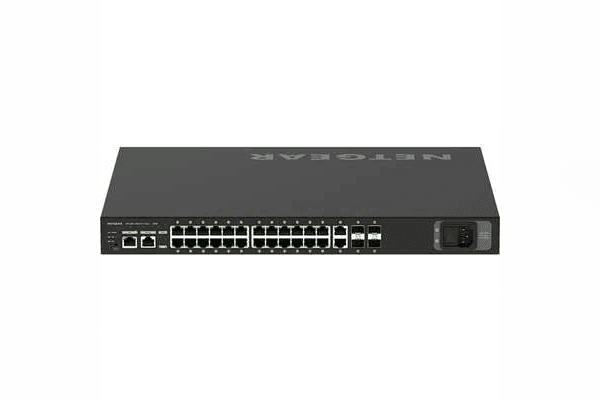

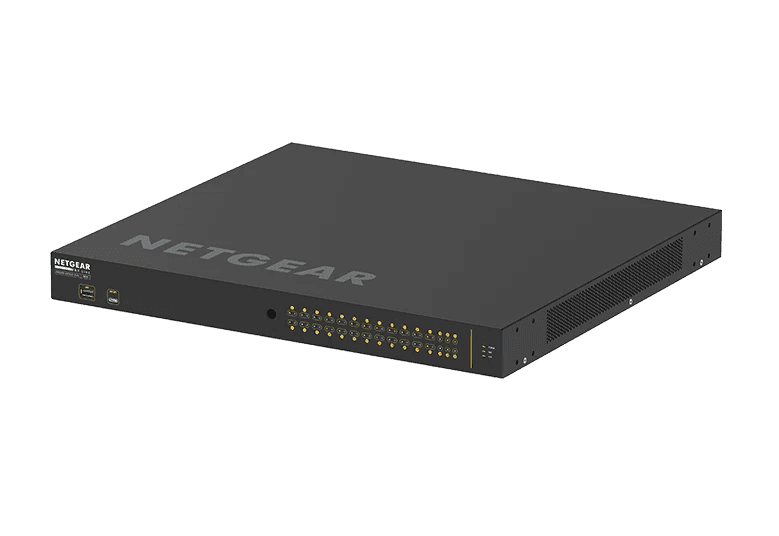

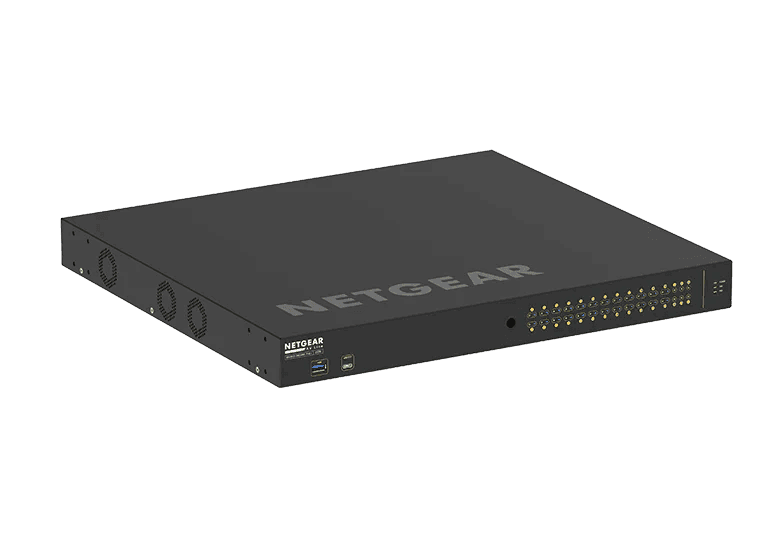

The NETGEAR AV Line M4250-26G4XF-PoE+ is a fully managed switch engineered specifically for AV-over-IP. This M4250-26G4XF-PoE+ AV switch delivers 24 Gigabit PoE+ copper ports with a 480W PoE budget, two 1G copper uplinks, and four 1G/10G SFP+ fiber ports in a 1U chassis. A dedicated AV web GUI, certified audio and video profiles, and NETGEAR IGMP Plus make it straightforward to deploy reliable, low-latency Dante, NDI, and Crestron NVX media networks. The unit is sold under NETGEAR part number GSM4230PX-100NAS.
Product Description
The M4250-26G4XF-PoE+ provides 24 RJ45 PoE+ ports for powering cameras, displays, access points, and AV endpoints, backed by a 480W total PoE budget conforming to 802.3af/at. Two additional 1G copper ports and four 1G/10G SFP+ fiber cages handle uplinks and inter-switch connectivity across a 132 Gbps non-blocking fabric spanning all 30 ports, with the 10G SFP+ uplinks giving headroom for larger video deployments. The AV Line operating mode presents a dedicated AV web GUI with color-coded, port-based profiles for audio (Dante, Q-SYS, AES67, and AVB with a separately sold license) and video (AMX SVSI, Crestron NVX, Q-SYS, NDI, and Dante), plus mixed audio/video/control profiles. NETGEAR IGMP Plus along with Auto-Trunk and Auto-LAG simplify multi-switch interconnect for plug-and-play multicast handling. A full Layer 2/Layer 3 engine adds static, RIP, and PIM routing, a DHCP server, and PTPv2 timing. For AV-rack integration, the chassis supports reversible front- or rear-facing port mounting, selectable fan modes (fanless, quiet, cool), and VESA/clamp mounting points.
Key Features
- 24x 1G PoE+ ports, 480W budget — 802.3af/at power for cameras, displays, access points, and AV endpoints.
- 4x 1G/10G SFP+ fiber uplinks — 10G headroom for larger video deployments, plus two 1G copper uplinks.
- 132 Gbps non-blocking fabric — Line-rate switching across all 30 ports.
- Dedicated AV web GUI — Color-coded, port-based AV profiles for fast, error-free setup.
- Certified AV profiles — Audio (Dante, Q-SYS, AES67, AVB with license) and video (AMX SVSI, Crestron NVX, Q-SYS, NDI, Dante).
- NETGEAR IGMP Plus, Auto-Trunk, Auto-LAG — Plug-and-play multicast and multi-switch interconnect.
- Full Layer 2 / Layer 3 — Static, RIP, and PIM routing, DHCP server, and PTPv2 timing.
- AV-rack friendly — Reversible front/rear port mounting, selectable fan modes, and VESA/clamp mounting points.
Typical Applications
- House of worship — PoE+ for cameras, displays, and access points with Dante and NDI distribution.
- Auditorium — Low-latency, lip-sync-critical AV-over-IP for live and installed performance.
- Broadcast studio — NDI, AMX SVSI, and Crestron NVX codec workflows over 1G/10G.
- Training room — Networked audio and video for classrooms and lecture halls.
- Boardroom — Converged AV, control, and digital signage on a single managed switch.
- Commercial meeting space — PoE+ AV endpoints with centralized management.
Technical Specifications
| Model / Part number | M4250-26G4XF-PoE+ (GSM4230PX-100NAS) |
| Ports | 24x 1G PoE+ (RJ45), 2x 1G (RJ45), 4x 1G/10G SFP+ fiber |
| PoE | 802.3af/at PoE+; 480W total PoE budget |
| Switching fabric | 132 Gbps non-blocking across 30 ports |
| Layer / routing | L2/L3 — static, RIP, and PIM routing; DHCP server; PTPv2 |
| AV profiles | Audio: Dante, Q-SYS, AES67, AVB (license). Video: AMX SVSI, Crestron NVX, Q-SYS, NDI, Dante |
| Automation | NETGEAR IGMP Plus, Auto-Trunk, Auto-LAG |
| Management | AV GUI + IT GUI, CLI, SNMP, sFlow, RSPAN; NMS300 platform |
| Console / storage | USB-C and RJ45 RS232 console, USB-A storage, out-of-band 1G management |
| Form factor | 1U rack-mountable; reversible front/rear mounting; selectable fan modes |
| Warranty | NETGEAR ProSAFE limited lifetime hardware warranty |
Specifications sourced from NETGEAR. Verify current details with NETGEAR or contact us before specifying.
Competitor Comparison
| Criteria | NETGEAR M4250-26G4XF-PoE+ | Cisco Catalyst 9200 | Aruba 6300 |
| AV configuration | Dedicated AV GUI with certified port-based profiles | Manual CLI configuration for AV multicast | Manual configuration for AV multicast |
| AV multicast | IGMP Plus, Auto-Trunk, Auto-LAG | Standard IGMP/PIM, manual tuning | Standard IGMP/PIM, manual tuning |
| PoE budget | 480W PoE+ across 24 ports | PoE/PoE+ budget varies by SKU | PoE/PoE+/Class 6 varies by SKU |
| Rack integration | Reversible mounting, selectable/fanless modes | Standard front-mount, fixed airflow | Standard front-mount, fixed airflow |
| Layer 3 licensing | L2/L3 included, no license | Subscription tiers for routing features | Feature tiers vary by license |
| Warranty | ProSAFE limited lifetime | Term/subscription support | Limited lifetime on select models |
Competing models are referenced for general positioning; confirm current specifications with each manufacturer.
Frequently Asked Questions
How much PoE power does the M4250-26G4XF-PoE+ provide?
It offers 24 PoE+ ports (802.3af/at) with a 480W total PoE budget for cameras, displays, and access points.
What uplink options are available?
Two 1G copper uplinks plus four 1G/10G SFP+ fiber cages, with the 10G SFP+ ports giving headroom for larger AV-over-IP deployments.
Which AV protocols does it support?
Certified audio profiles for Dante, Q-SYS, AES67, and AVB (license sold separately), and video profiles for AMX SVSI, Crestron NVX, Q-SYS, NDI, and Dante.
Is it easy to install in an AV rack?
Yes. It supports reversible front- or rear-facing port mounting, selectable fan modes including a fanless option, and VESA/clamp mounting points.
What warranty is included?
The switch is covered by NETGEAR's ProSAFE limited lifetime hardware warranty.
