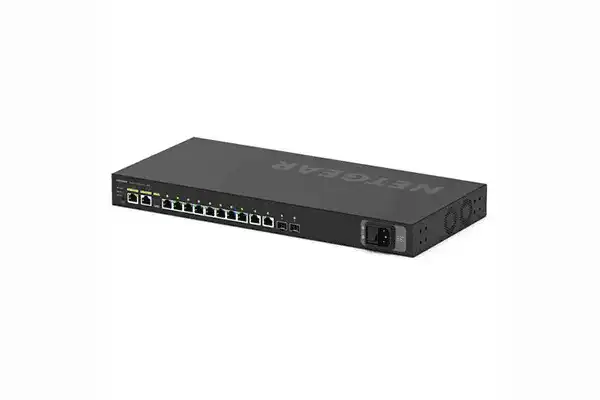

Netgear GSM4212UX-100NAS M4250-10G2XF-POE++ AV Switch

Product Overview

The NETGEAR M4250-10G2XF-PoE++ AV switch (GSM4212UX-100NAS) is a compact, high-power managed switch built for AV-over-IP endpoints that draw serious wattage. It pairs eight 1G Ultra90 PoE++ copper ports delivering up to 90W each with two 1G/10G SFP+ fiber uplinks, making it well suited to PTZ cameras, large displays, and networked lighting. The NETGEAR GSM4212UX runs the AV Line firmware with pre-configured profiles for Dante, Q-SYS, NDI, and Crestron NVX. A dedicated AV web GUI and NETGEAR IGMP Plus shorten commissioning for installed AV systems.

Product Description

This Ultra90 PoE++ switch provides eight RJ45 access ports rated to 802.3af/at/bt with up to 90W per port and a 720W total PoE budget, enough headroom for endpoints that earlier PoE+ switches could not power. Two 1G copper uplinks and two 1G/10G SFP+ fiber ports handle backbone and inter-switch connectivity, while the full Layer 2 and Layer 3 engine supports static, RIP, and PIM routing plus a DHCP server. NETGEAR IGMP Plus manages AV-over-IP multicast at Layer 2 without requiring PIM, and Auto-Trunk and Auto-LAG simplify multi-switch interconnect. The dedicated AV GUI presents color-coded, port-based profiles so technicians can assign audio, video, and control roles quickly, while a parallel IT GUI, CLI, SNMP, and sFlow provide deeper network management. PTPv2 supports time-sensitive media. The unit is a 1U rack-mount design with reversible front/rear mounting, suiting compact edge racks and equipment closets.

Key Features

• 8x Ultra90 PoE++ ports — RJ45 ports delivering up to 90W each (802.3af/at/bt) with a 720W total budget for the most demanding endpoints.
• 2x 1G/10G SFP+ fiber — High-bandwidth fiber uplinks for backbones and trunks, plus two 1G copper uplinks.
• Dedicated AV web GUI — Color-coded, port-based AV profiles for fast role assignment without CLI work.
• Audio profiles — Dante, Q-SYS, AES67, and AVB (AVB license sold separately).
• Video profiles — AMX SVSI, Crestron NVX, Q-SYS, NDI, and Dante.
• NETGEAR IGMP Plus — Layer-2 multicast for AV-over-IP without PIM, with Auto-Trunk and Auto-LAG for plug-and-play interconnect.
• Full L2/L3 engine — Static, RIP, and PIM routing, DHCP server, and PTPv2 for time-sensitive media.
• Compact 1U design — Reversible front/rear mounting for edge racks and equipment closets.
• ProSAFE limited lifetime warranty — Backed by NETGEAR's ProSAFE limited lifetime hardware warranty.

Typical Applications

• Conference room — High-power PoE for PTZ cameras, displays, and control endpoints at the edge.
• House of worship — Ultra90 PoE++ for cameras, lighting, and networked audio over Dante and AES67.
• Boardroom — Compact switching with 10G uplinks for mixed audio, video, and control.
• Broadcast studio — PTPv2 timing and 10G fiber for NDI and time-sensitive media.
• Huddle room — Small-footprint switch powering high-wattage AV endpoints.
• Auditorium — 90W-per-port PoE for displays, lighting, and AV-over-IP distribution.

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How much PoE power can each port deliver?
Each of the eight Ultra90 PoE++ ports supports 802.3af/at/bt and can deliver up to 90W, with a 720W total budget shared across the switch.

What AV platforms are supported out of the box?
Pre-configured profiles cover Dante, Q-SYS, AES67, AMX SVSI, Crestron NVX, and NDI. AVB requires a separate license.

Does AV-over-IP multicast require PIM?
No. NETGEAR IGMP Plus handles AV multicast at Layer 2, so you can deploy multi-switch AV-over-IP without configuring PIM.

Is this switch a good fit for edge racks?
Yes. The compact 1U chassis with reversible front/rear mounting suits edge racks and equipment closets while still providing 10G fiber uplinks.

What warranty is included?
The switch is backed by NETGEAR's ProSAFE limited lifetime hardware warranty.

Can Creation Networks help select optics and licenses?
Yes. Contact our team for help sizing PoE budgets and choosing compatible SFP+ optics and AVB licenses for your project.
