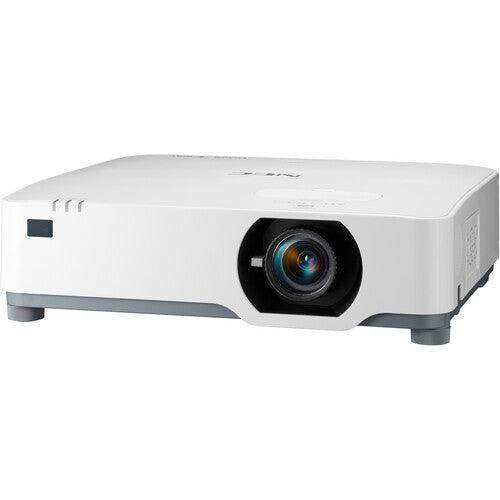

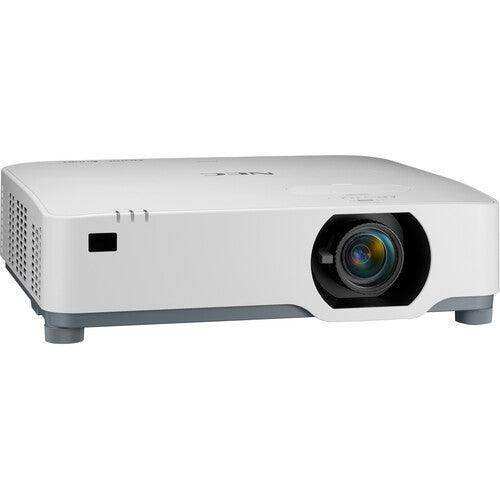

Sharp NP-P627UL – 6,200-Lumen WUXGA LCD Laser Installation Projector

Product Overview

The Sharp NP-P627UL is a 6,200-lumen WUXGA LCD laser installation projector designed for conference rooms, meeting spaces, digital signage, and classroom environments. The IPX5-sealed cooling system eliminates filters entirely, and the laser phosphor light source delivers 20,000 hours of maintenance-free operation at just 318W in normal mode. At 22 dB in ECO mode, this is among the quietest installation projectors in its class. The NP-P627UL supports 360-degree installation including portrait mode, making it suitable for non-standard mounting configurations required in digital signage and creative display applications.

Product Description

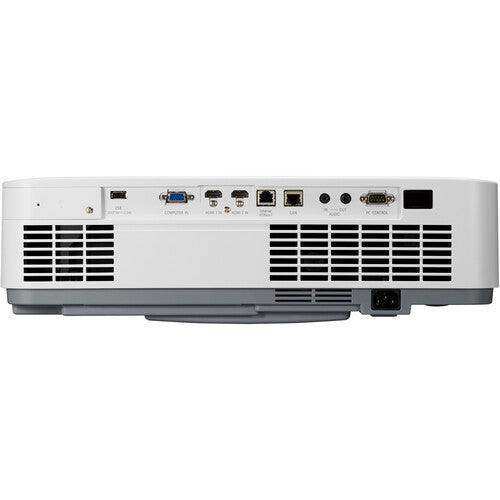

The P627UL uses a 0.64" Micro Lens Array (MLA) LCD panel delivering WUXGA 1920x1200 native resolution with a 1.23–2.0:1 throw ratio (1.6x zoom), supporting projection sizes from 30 to 300 inches. Connectivity includes 2x HDMI 1.4 with audio, 1x VGA, 1x HDBaseT for AV and control, and 3.5mm audio in/out. An optional WiFi module enables the embedded MultiPresenter function for wireless presentation and screen sharing from Windows, Mac, Android, and iOS devices simultaneously. The built-in 20W speaker suits conference room and classroom deployments where external audio is not required. WUXGA 4K input at 30Hz is supported.

Key Features

• 6,200 Lumens — Effective brightness for conference rooms and meeting spaces with moderate ambient light.
• IPX5-Sealed Cooling System — Fully sealed, filter-free design rated for reliable long-term operation.
• 22 dB ECO Mode Operation — Near-silent operation suitable for occupied meeting spaces and classrooms.
• 20,000-Hour Laser Lifespan — No lamp replacement throughout the operational life.
• 360° Installation with Portrait Mode — Supports non-standard mounting orientations for digital signage and creative display.
• 1.23–2.0:1 Throw Ratio — Manual lens shift and 1.6x zoom for installation flexibility.
• 4K Input at 30Hz — Accepts 4K signals with upscaling to WUXGA native resolution.
• HDBaseT Input — Single-cable AV and control delivery for simplified installation.
• Optional WiFi with MultiPresenter — Wireless presentation and screen sharing for up to 16 devices simultaneously.
• Built-In 20W Speaker — Integrated audio output for self-contained conference room and classroom deployments.
• 318W Normal Mode — Low operational power consumption for an installation-class projector.

Typical Applications

• Conference room
• Commercial meeting space
• Training room
• Huddle room
• Digital signage
• Multi-purpose room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the NP-P627UL have a built-in speaker?

Yes. A 20W built-in speaker is included, making the projector suitable for self-contained conference room and classroom audio without external amplification.

Can the P627UL be installed in portrait mode?

Yes. The projector supports 360-degree installation including portrait mode, which is useful for digital signage and non-standard mounting configurations.

Does it support wireless presentation?

With an optional WiFi module, the embedded MultiPresenter function enables wireless screen sharing for up to 16 simultaneous devices across Windows, Mac, Android, and iOS platforms.

What is the lens replacement option?

The P627UL has a fixed built-in lens with a 1.23–2.0:1 throw ratio (1.6x manual zoom). It does not accept external replacement lenses.

What is the maintenance schedule?

The IPX5-sealed, filter-free design requires no periodic filter cleaning or lamp replacement. The laser light source is rated for 20,000 hours of operation.
