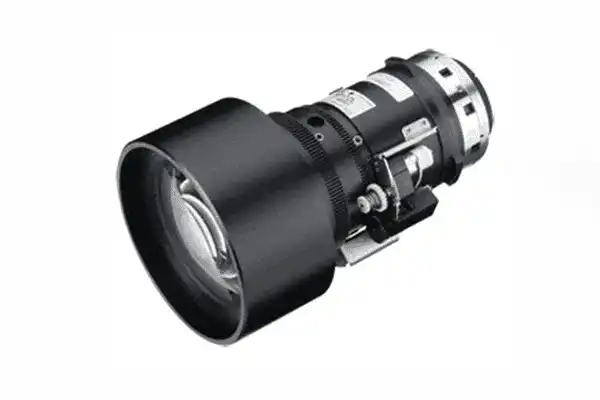

Sharp NP17ZL – 1.25-1.79 Short-Throw Zoom Lens with Shift for Select Projectors

Product Overview

The Sharp NP17ZL is a short-throw zoom lens with a 1.25-1.79:1 throw ratio, lens shift, and lens memory, compatible with the NP-PX700W, NP-PX750U, NP-PX800X, NP-PX700W2, NP-PX750U2, NP-PX800X2, NP-PX803UL, and NP-PX1004UL professional installation projectors. This lens supports diverse installation environments including conference rooms, auditoriums, and exhibition spaces. The lens memory function stores up to three lens position presets, simplifying operation in multi-use venues where image positioning must be quickly recalled for different presentations or audiences.

Product Description

The NP17ZL covers a 1.43x zoom range from 1.25-1.79:1, placing it in the short-throw-to-standard-throw transition range for the compatible NP-PX projector platforms. At a 100-inch-wide screen, the projector is positioned approximately 9.0 to 12.9 feet from the screen with the NP17ZL installed. The lens shift capability allows off-axis projector placement with optical correction rather than electronic keystone, preserving image geometry and resolution. Lens memory stores zoom, focus, and shift positions for instant recall without manual readjustment.

The NP17ZL is sold separately from the compatible projector bodies and requires no special tools for installation or removal.

Key Features

• 1.25-1.79:1 Throw Ratio — Short-throw range for rooms requiring a close projector-to-screen distance with standard ceiling-mount geometry.
• Lens Shift — Optical image offset for off-axis projector placement without keystone correction.
• Lens Memory — Stores lens position presets for fast recall in multi-presentation or multi-audience venues.
• 1.43x Zoom — Manual zoom and focus adjustment with f/1.85 to 2.5 aperture range.
• Broad Projector Compatibility — Works with NP-PX700W/PX750U/PX800X, second-generation -W2/-U2/-X2 variants, NP-PX803UL, and NP-PX1004UL.
• Tool-Free Installation — End-user installable without special tools.

Typical Applications

• Corporate conference room and meeting space
• Higher education auditorium and classroom
• Exhibition and event display
• Multi-purpose room with frequent source or layout changes
• House of worship with varied service formats

Technical Specifications

Frequently Asked Questions

Q: Which projectors is the NP17ZL compatible with?

The NP17ZL is compatible with the NP-PX700W, NP-PX750U, NP-PX800X, second-generation NP-PX700W2/PX750U2/PX800X2, NP-PX803UL-BK/WH, and NP-PX1004UL-BK/WH projectors.

Q: Does the NP17ZL require motorized adjustment?

No. The NP17ZL uses manual zoom and focus. Lens memory stores positions for recall but the initial adjustment is performed manually.

Q: Is this lens sold with the projector?

No. The NP17ZL is sold separately and must be specified as a distinct line item in system designs.

Q: Where can I purchase the NP17ZL?

Available at Creation Networks, an authorized Sharp commercial AV reseller.
