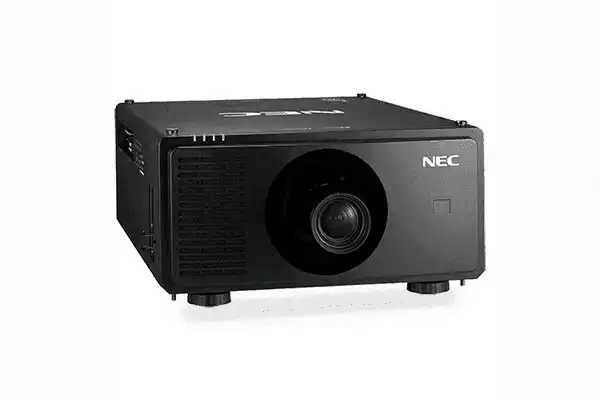

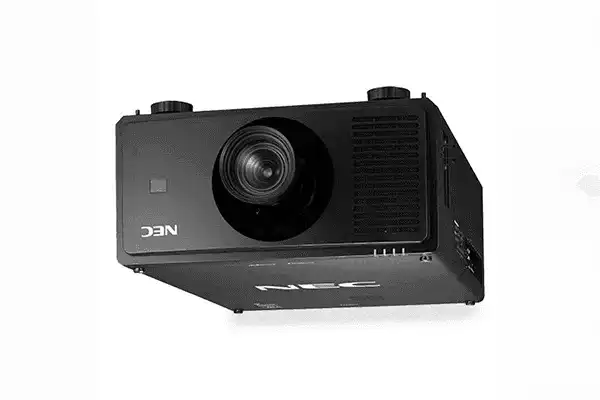

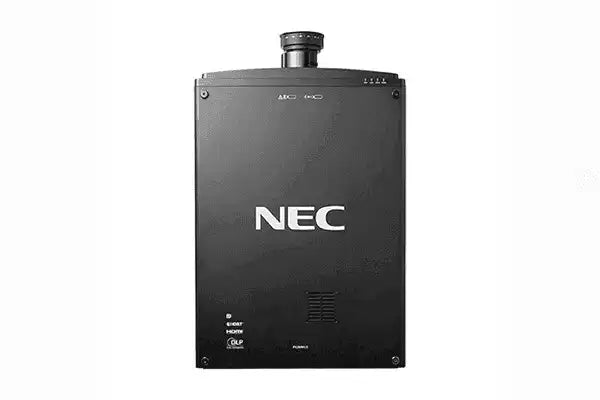

Sharp NP-PX2201UL-48ZL – 21,500-Lumen WUXGA Laser Projector with NP48ZL Lens

Product Overview

The Sharp NEC NP-PX2201UL-48ZL is a 21,500-lumen WUXGA laser installation projector bundled with the NP48ZL 2.0–4.0:1 long-throw zoom lens, built for large venue projection in auditoriums, museums, houses of worship, and simulation environments. Its RB laser light source delivers color performance approaching 3-chip DLP systems while the filter-free optical engine runs up to 20,000 hours with virtually no maintenance. Built-in edge blending, geometric correction, and HDBaseT connectivity make this professional installation projector a strong fit for multi-projector commercial AV integration and projection mapping deployments.

Product Description

This bundle pairs the NP-PX2201UL chassis with the motorized NP48ZL long-throw zoom lens, giving integrators a ready-to-deploy high-brightness laser projector for fixed installation. The 1-chip DLP engine produces 20,500 ANSI lumens in Normal mode (21,500 center lumens) at native WUXGA 1920 x 1200 resolution with a 10,000:1 contrast ratio using DynamicBlack. The RB laser light source adds red laser output to widen the color gamut, producing richer, more accurate images than conventional phosphor-only single-chip DLP projectors.

Installation flexibility is a core strength. Motorized lens shift (H ±15%, V ±50%), zoom, and focus allow remote adjustment after rigging, eliminating the need for physical access once the projector is mounted. Free-tilt and portrait operation support 360-degree roll-free orientation for creative digital signage, theme park, and projection mapping applications. Built-in edge blending and geometric correction let AV system designers combine two or more units for ultra-wide blended canvases without external processors.

Connectivity covers professional signal workflows: dual HDMI with HDCP, DisplayPort, DVI-D, 3G-SDI in/out, 5BNC analog, and HDBaseT for single-cable transport of video and control over category cable. RS-232, LAN with PJLink, and NaViSet Administrator 2 support enterprise-grade monitoring across campus and venue installations. At 51 kg without lens, the chassis remains semi-portable for rental and staging crews as well as permanent integration.

If you need the projector body alone, see the Sharp NP-PX2201UL without lens.

Key Features

• 21,500-Lumen Laser Output — Delivers 20,500 lumens Normal mode (21,500 center) for clear images in high-ambient-light large venues.
• NP48ZL Long-Throw Zoom Lens Included — The bundled 2.0–4.0:1 motorized bayonet lens covers long-throw installation distances common in auditoriums and ballrooms.
• RB Laser Light Source — Red-plus-blue laser design widens the color gamut for image quality approaching 3-chip DLP projectors.
• 20,000-Hour Filter-Free Operation — Sealed, filterless optical engine minimizes maintenance and lowers total cost of ownership in always-on deployments.
• Built-In Edge Blending and Geometric Correction — Combine multiple projectors for wide blended images and correct distortion on curved or angled surfaces without outboard hardware.
• HDBaseT Input — Runs video and control over a single category cable for simplified long-distance commercial AV installation.
• Motorized Lens Shift, Zoom, and Focus — Remote adjustment (H ±15%, V ±50% shift) after the projector is rigged or ceiling mounted.
• 360-Degree Free Tilt and Portrait Mode — Install at any angle for projection mapping, simulation, and creative digital signage applications.
• Professional I/O Including 3G-SDI — HDMI x2, DisplayPort, DVI-D, 3G-SDI in/out, and 5BNC cover broadcast and staging signal chains.
• Network Management — LAN with PJLink, RS-232, and NaViSet Administrator 2 enable centralized fleet monitoring and control.

Typical Applications

• Auditorium
• House of worship
• All-hands room
• Multi-purpose room
• Broadcast studio
• Government space
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Does the NP-PX2201UL-48ZL include a lens?

Yes. This bundle ships with the NP48ZL motorized long-throw zoom lens (2.0–4.0:1 throw ratio), so it is ready to install out of the box for long-throw auditorium and large venue applications.

What other lenses are compatible with this projector?

The PX2201UL accepts five optional bayonet lenses — NP45ZL (0.9–1.2:1), NP46ZL (1.2–1.56:1), NP47ZL (1.5–2.0:1), NP48ZL (2.0–4.0:1), and NP49ZL (4.0–7.0:1) — covering short-throw through ultra-long-throw installation distances.

Can I blend multiple PX2201UL projectors into one image?

Yes. Edge blending and geometric correction are built into the projector, so two or more units can be combined for ultra-wide or mapped images without an external video processor.

Does it support HDBaseT for long cable runs?

Yes. The built-in HDBaseT input carries video and control over a single category cable, simplifying installation when the source rack is far from the projection position.

What power does the projector require?

The PX2201UL requires 200–240 V AC, 50–60 Hz, drawing up to 1,775 W in Normal mode. Plan a dedicated 208/240 V circuit during the AV system design phase.

Can it be installed at an angle or in portrait orientation?

Yes. The laser light source supports 360-degree free-tilt operation and portrait mode, making it suitable for projection mapping, simulation, and creative digital signage installations.

How do I integrate it with a control system?

RS-232, LAN with PJLink, and HDBaseT control pass-through allow integration with Crestron, Extron, AMX, and other room control platforms, plus fleet management via NaViSet Administrator 2.

What support does Creation Networks provide?

Creation Networks is an authorized Sharp NEC reseller. Our AV specialists can help with lens selection, mounting, signal distribution, and full system design — contact us before or after purchase for deployment assistance.
