Sharp LED-FA009i2-165 – 165" UHD 0.95mm FA-Series LED Video Wall Kit

Product Overview

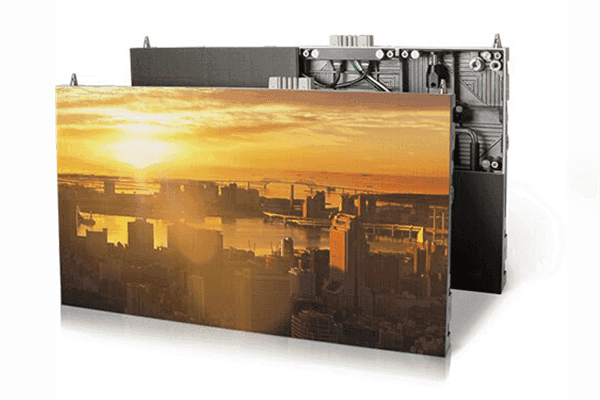

The Sharp LED-FA009i2-165 is a 165-inch UHD direct-view LED video wall kit built on the FA-Series platform, Sharp's premium fine-pitch indoor LED line. With 0.95mm pixel pitch and dual-controller redundancy, this system is engineered for mission-critical environments where uptime and image fidelity are non-negotiable. At $264,499, the FA009i2-165 sits above the FE-Series in the Sharp LED portfolio, offering built-in data and power redundancy that keeps the display operational even if a single controller or power supply fails. It is designed for command centers, broadcast facilities, luxury retail, corporate flagships, and high-availability signage deployments.

Product Description

The LED-FA009i2-165 delivers UHD 3840x2160 resolution at 165 inches across a seamless 16:9 direct-view LED canvas with 600 cd/m² typical brightness and 5000:1 contrast ratio. The FA-Series differs from the FE-Series through its dual-controller architecture with built-in data and power redundancy: if one controller or power supply fails, the display continues operating without interruption. All modules are front-serviceable, and pixel cards are hot-swappable for live replacement without powering down. The complete bundle includes LED modules, dual LED controllers, power bar, 6x6 wall mount, overframe kit, spare parts kit, and pixel card removal tool. At 3.2 inches installed depth, the system meets ADA clearance requirements and integrates flush to nearly any wall structure. The 4-in-1 IMD black-body diode technology supports 16-bit color processing and 281 trillion displayable colors for accurate reproduction of broadcast-grade and data visualization content.

Key Features

• Dual-Controller Redundancy — Built-in data and power redundancy keeps the display running if a single controller or power supply fails — a key differentiator over FE-Series kits.
• 0.95mm Pixel Pitch — Fine-pitch 4-in-1 IMD design delivers UHD resolution across 165 inches with optimal clarity at viewing distances from 3 feet.
• UHD 3840x2160 Resolution — Full 4K imaging across the complete 16:9 canvas.
• 600 cd/m² Typical / 660 cd/m² Peak Brightness — Sufficient output for ambient-lit boardrooms, lobby displays, and retail environments.
• 5000:1 Contrast Ratio — Black-body IMD diodes and flush surface design produce deep blacks alongside vivid highlights.
• Up to 3840 Hz Refresh Rate — Eliminates motion artifacts in live video, broadcast content, and dynamic data feeds.
• Front-Serviceable Modules — All maintenance accessible from the front face without rear wall clearance requirements.
• Hot-Swappable Pixel Cards — Individual cards can be swapped during active display operation to eliminate scheduled downtime.
• Complete Bundle — Includes dual LED controllers, power bar, wall mount (6x6), overframe kit, spare parts kit, and pixel card removal tool.
• 3.2" Installed Depth / ADA Compliant — Slim form factor supports recessed wall integration and meets ADA protrusion guidelines.
• 100,000-Hour LED Lifetime — Long-life industrial LED components for multi-year mission-critical deployments.
• 16-Bit Color, 281 Trillion Colors — Adjustable gamma (1.0–4.0) and color temperature (3000K–9500K) for fine-tuned calibration.

Typical Applications

• Government space
• Boardroom
• All-hands room
• Lobby display
• Digital signage
• Retail environment

Technical Specifications

Competitor Comparison

The FA-Series is Sharp's premium redundant LED tier. Key differentiators versus competitive 0.95mm fine-pitch alternatives:

Frequently Asked Questions

What is the difference between the FA-Series and FE-Series kits?
The FA-Series includes dual-controller data and power redundancy. If one controller or power supply fails, the system continues running uninterrupted. The FE-Series uses a single controller and is appropriate for non-critical deployments where lower cost is the priority.

What is the minimum recommended viewing distance?
Optimal viewing is from 3 to 6 feet for the 0.95mm pixel pitch at 165 inches.

Does the bundle include installation labor?
No. The LED-FA009i2-165 bundle covers all hardware components. Contact Creation Networks to discuss installation services or refer to LED-FE015I3-137 for a bundle that includes standard installation.

What inputs does the LED controller support?
1x HDMI, 1x DVI-D, and 1x 3G-SDI.

Is this display suitable for 24/7 operation?
The LED-FA009i2-165 is rated for continuous commercial operation. The 100,000-hour LED lifetime and built-in redundancy make it appropriate for always-on deployments such as command centers and lobby signage.

Can this system be integrated into a control room SCADA or AV-over-IP environment?
The LED controller includes LAN control and GenLock inputs, enabling integration with standard AV control systems. Consult your AV integrator for video processing and distribution requirements specific to your facility.
