Sharp MA551-IR – 55" Wide Color Gamut 4K Display with IR Touch
Product Overview

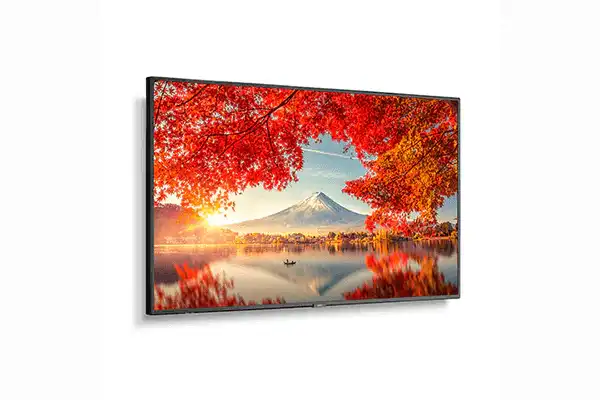

The Sharp MA551-IR is a 55-inch Wide Color Gamut 4K UHD commercial display with pre-installed 10-point infrared touch, designed for interactive digital signage, retail engagement, and corporate presentation environments requiring large-format touch interaction with accurate color rendering. The MA-series platform combines a wide color gamut panel with Sharp/NEC's SpectraView Engine color calibration, 500 cd/m2 brightness, and Intel SDM expandability for versatile commercial AV deployments.
Product Description
The MA551-IR delivers 3840x2160 UHD resolution on a 55-inch wide color gamut LCD panel at 500 cd/m2. The pre-installed IR touch overlay supports 10-point simultaneous touch input through clear tempered glass for interactive kiosk and presentation use cases. SpectraView Engine provides hardware-level color management including gamma adjustment, color space emulation, and uniformity correction. The full metal chassis supports portrait and landscape installation. An open Intel SDM slot accepts optional compute modules including Intel SDM Small and Large, and Raspberry Pi Compute Module 4 support enables integrated NEC MediaPlayer operation. HDMI and DisplayPort daisy-chain loopout support multi-display configurations. Failover input switching, RS-232C and LAN control with NaViSet Administrator 2, multi-picture mode, and Energy Star 8.0 certification complete the commercial feature set.
Key Features
- Pre-Installed IR Touch (10-Point) — Clear tempered glass with 10-point IR touch for interactive signage, kiosk, and presentation applications on a 55-inch canvas.
- Wide Color Gamut Panel — Broader color range than standard commercial displays for vivid retail and creative content reproduction.
- SpectraView Engine — Hardware color calibration with uniformity correction and color space management for color-accurate applications.
- 500 cd/m2 Brightness — Sufficient luminance for conference rooms, retail floors, and ambient-lit commercial spaces.
- Open Intel SDM Slot — Accepts SDM Small and Large compute modules for all-in-one signage integration.
- Raspberry Pi Compute Module 4 Support — Enables NEC MediaPlayer (MPi4E) integration and future compute expansion.
- Failover Input Detect — Automatically switches to secondary or tertiary input if the primary signal fails.
- Enhanced Daisy Chain — HDMI and DisplayPort loopout for multi-display signal distribution.
- Portrait and Landscape Operation — Supports both orientations for flexible installation.
- NaViSet Administrator 2 — Remote LAN-based management for multi-display commercial installations.
- Energy Star 8.0 Certified — Meets commercial energy efficiency standards.
Typical Applications
- Digital signage
- Retail environment
- Lobby display
- Conference room
- Boardroom
Technical Specifications
| Specification | Value |
|---|---|
| Model | MA551-IR |
| Screen Size | 55 inches diagonal |
| Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 500 cd/m2 |
| Panel Type | Wide Color Gamut LCD |
| Touch System | IR, 10-point, tempered glass |
| Color Engine | SpectraView Engine |
| Expansion Slot | Intel SDM (Small and Large) |
| Compute Module | Raspberry Pi Compute Module 4 supported |
| Control | RS-232C, LAN (NaViSet Administrator 2) |
| Orientation | Landscape and Portrait |
| Certifications | Energy Star 8.0 |
| Warranty | 3 years parts and labor |
Frequently Asked Questions
- Q: What is the difference between the MA551-IR and MA551?
- The MA551-IR includes a pre-installed 10-point IR touch overlay through clear tempered glass. The MA551 is the same display without touch capability. Both use the same WCG panel and SpectraView Engine.
- Q: Does the MA551-IR include a media player?
- No. The Intel SDM slot and Raspberry Pi CM4 support are available for optional integrated compute. Contact Creation Networks for compatible media player options.
- Q: What is the warranty?
- Sharp provides a 3-year parts and labor warranty. Contact Creation Networks for extended service plan options.
