Sharp P495-PT – 49" 4K UHD PCAP Touch Commercial Display - Discontinued

Product Overview

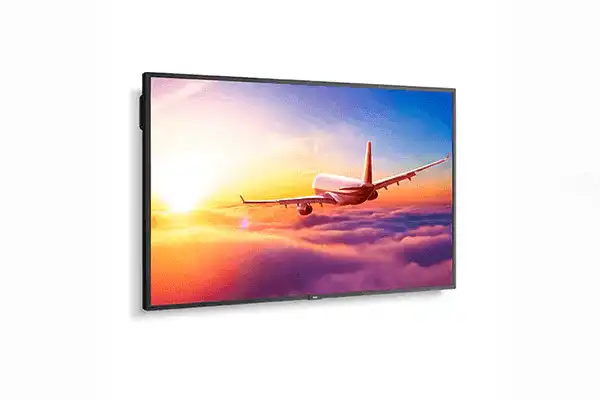

The Sharp NEC P495-PT is a 49-inch 4K UHD commercial touch screen display built for interactive digital signage, self-service kiosks, and collaborative commercial meeting spaces. Its factory pre-installed projected capacitive (PCAP) touch overlay delivers responsive multi-touch interaction, while the wide color gamut U-IPS panel, SpectraView Engine color processing, and 700 cd/m2 brightness keep content sharp and legible in bright commercial environments. For integrators specifying an interactive large format display in a mid-size footprint, the P495-PT pairs professional panel quality with the modular compute and control options of NEC's fully commercial P Series platform.

Product Description

The P495-PT combines a 3840 x 2160 native resolution panel with NEC's proprietary SpectraView Engine, supporting more than 1.08 billion displayable colors (10-bit) and calibrated gamma profiles including sRGB, Rec. 1886, DICOM, and HDR formats — a level of color control suited to museums, command and control, corporate, and retail interactive applications. The full metal mechanical chassis provides the durability commercial deployments require, and the display installs in landscape or portrait orientation to match kiosk, wayfinding, and menu-board designs.

Connectivity is built for system integration: DisplayPort 1.4 and HDMI 2.0 inputs, enhanced daisy chain outputs over both HDMI and DisplayPort for multi-display video distribution, and bidirectional external control via LAN or RS-232C for room control system integration. The display accepts an Intel Smart Display Module (Small or Large) and supports the Raspberry Pi Compute Module 4 with NEC MediaPlayer (MPi4E), so signage playback or interactive kiosk software can run inside the display without an external player. Multi Picture Mode shows multiple simultaneous sources, failover input detection automatically switches to a backup source if the primary feed drops, and NaViSet Administrator 2 software centralizes management of larger display fleets. The P495-PT is ENERGY STAR 8.0 certified, Cisco certified, and backed by a full 5-year professional warranty.

Key Features

• Pre-Installed PCAP Touch — The projected capacitive touch overlay arrives factory-integrated and calibrated, eliminating field overlay installation on site.
• 4K UHD Wide Color Gamut Panel — The 3840 x 2160 U-IPS panel with SpectraView Engine reproduces a broader color range than standard commercial panels for accurate, vivid content.
• 700 cd/m2 Brightness with HDR Compatibility — High output and local dimming keep interactive content legible in bright lobbies, retail spaces, and corporate environments.
• Dual Modular Compute Options — Accepts Intel Smart Display Module (Small or Large) and Raspberry Pi Compute Module 4 with NEC MediaPlayer for player-free signage deployment.
• Enhanced Daisy Chain Outputs — HDMI and DisplayPort outputs distribute video and control signals across multiple displays in one run.
• Full External Control — Bidirectional LAN and RS-232C control integrates the display into commercial AV control systems.
• Failover Input Detection — The display automatically switches to a secondary or tertiary source if the primary input fails, protecting always-on signage.
• Landscape and Portrait Installation — Dual-orientation support fits kiosks, wayfinding totems, and vertical menu boards.
• Multi Picture Mode — Shows multiple simultaneous sources on screen without extra hardware or software.
• 5-Year Professional Warranty — Full commercial coverage protects the investment, with ENERGY STAR 8.0 and Cisco certification.

Typical Applications

• Conference room and huddle room interactive collaboration
• Commercial meeting space presentation and annotation
• Training room interactive instruction
• Government space wayfinding and self-service kiosks
• Multi-purpose room signage and scheduling displays

Technical Specifications

Frequently Asked Questions

Is the touch screen on the P495-PT pre-installed?

Yes. The PCAP touch overlay is factory-installed and calibrated by Sharp NEC, so the display is ready for interactive use out of the box with no field overlay kit required.

Can the P495-PT run signage software without an external media player?

Yes. The display accepts an Intel Smart Display Module (Small or Large) and supports the Raspberry Pi Compute Module 4 with NEC MediaPlayer (MPi4E), allowing CMS playback or kiosk applications to run inside the display.

How does this display integrate with AV control systems?

Bidirectional external control is available over LAN and RS-232C, supporting standard commercial control processors for power, input, and status monitoring. NaViSet Administrator 2 provides centralized multi-display management.

Can the P495-PT be mounted in portrait orientation?

Yes. The display supports both landscape and portrait installation, making it suitable for wayfinding totems, kiosks, and vertical digital signage.

What warranty comes with the P495-PT?

Sharp NEC includes a full 5-year professional warranty on this display. Contact Creation Networks for extended coverage and deployment support options.

Does this display support daisy chaining multiple screens?

Yes. Enhanced daisy chain capability through both HDMI and DisplayPort outputs lets integrators distribute video and control signals across multiple displays from a single source.
