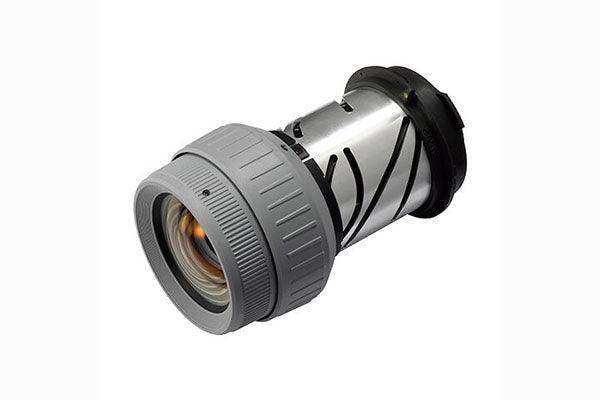

Sharp NP15ZL – 4.7-7.2:1 Ultra-Long-Throw Zoom Lens for NP-PA Series

Product Overview

The Sharp NP15ZL is an ultra-long-throw zoom lens with a 4.7-7.2:1 throw ratio, compatible with the NP-PA600X, NP-PA500X, NP-PA550W, NP-PA500U, and their -13ZL bundle variants. This lens enables projection from extreme distances in large auditoriums, arenas, and rear projection booth configurations where standard and long-throw lenses cannot achieve the required image size from the available projector position. The 1.6x zoom ratio provides meaningful image size adjustment without projector repositioning.

Product Description

The NP15ZL is the longest-throw lens in the PA series (PA600X/PA500X/PA550W/PA500U) lens lineup, extending coverage above the NP14ZL (2.97-4.79:1). At 4.7-7.2:1, the projector is positioned approximately 33.8 to 51.8 feet from a 100-inch-wide screen, covering the deepest auditorium configurations. The lens has a focal length range of 76.6-116.5mm and aperture of f/2.2-2.7, with a 1.6x zoom ratio. Screen size support spans 60 to 500 inches diagonal at appropriate throw distances, making the NP15ZL relevant for stadium, arena, and major venue projection applications.

The NP15ZL is sold separately from compatible projector bodies and requires no special tools for installation.

Key Features

• 4.7-7.2:1 Throw Ratio — Ultra-long-throw range for extreme projection distances in large venues and rear projection booths.
• 1.6x Zoom Ratio — 60% zoom range for image size adjustment without projector repositioning.
• Focal Length 76.6-116.5mm — Telephoto zoom design for sharp images at long projection distances.
• 60-500 Inch Screen Support — Wide screen size range from the ultra-long-throw position.
• Compatible with NP-PA Series — Designed for NP-PA600X, NP-PA500X, NP-PA550W, and NP-PA500U projectors.
• Tool-Free Installation — User-installable on compatible PA series projector bodies.

Typical Applications

• Large auditorium and concert hall rear booth
• Arena and stadium large-screen display
• House of worship with extreme long-throw projection distance
• Government facility with large-format display requirements
• Multi-purpose venue with deep rear projection geometry

Technical Specifications

Frequently Asked Questions

Q: Which projectors is the NP15ZL compatible with?

The NP15ZL is compatible with the NP-PA600X, NP-PA500X, NP-PA550W, NP-PA500U, and their -13ZL bundle variants.

Q: When should I choose the NP15ZL over the NP14ZL?

Choose the NP15ZL when the required throw ratio exceeds 4.79:1. The NP14ZL (2.97-4.79:1) covers long throw; the NP15ZL (4.7-7.2:1) is required for ultra-long-throw configurations in large venues.

Q: Is this lens motorized?

No. The NP15ZL uses manual zoom and focus.

Q: Where can I purchase the NP15ZL?

Available at Creation Networks, an authorized Sharp commercial AV reseller.
