Product Overview

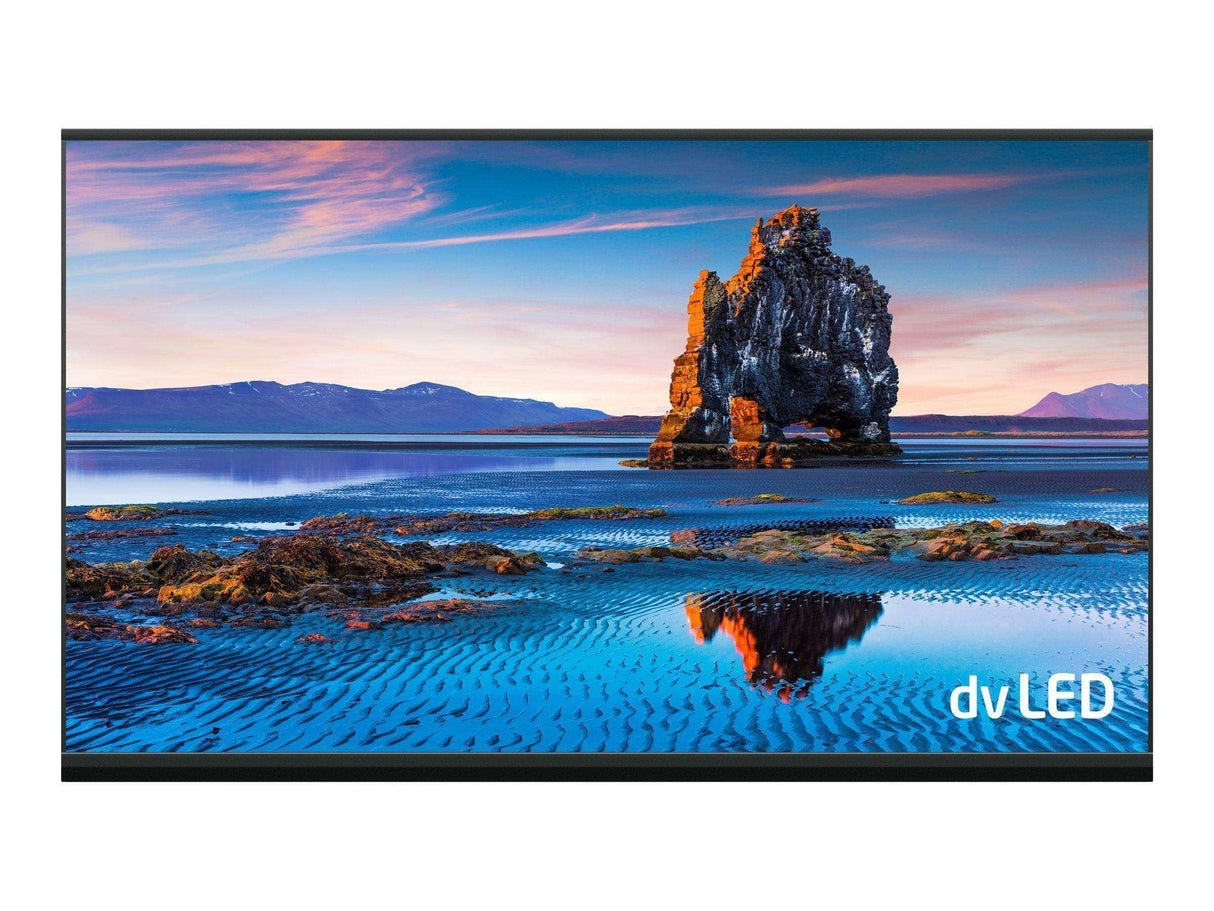

The Sharp LED-FE012i2-220 is a 220-inch UHD direct-view LED video wall kit built on the FE-Series 1.26mm platform. At 220 inches diagonal, it is the largest FE-Series screen size available, delivering 3840x2160 UHD resolution at 700 cd/m² typical brightness across a seamless 16:9 bezel-free LED canvas. As the single-controller, cost-optimized alternative to the FA012i2-220, it is the right choice for permanent large-format installations in auditoriums, all-hands facilities, and house of worship environments where continuous redundancy is not required.
Product Description
The LED-FE012i2-220 uses 1.26mm pixel pitch 3-1 SMD black pixel modules producing 3840x2160 UHD across a 220-inch 16:9 canvas. Brightness is rated at 700 cd/m² typical and 770 cd/m² peak, with a 4000:1 contrast ratio. Wide 80°/80° viewing angles cover standard auditorium seating. Refresh rate reaches 3840 Hz. The 16-bit color processing engine supports 281 trillion displayable colors with a 3000K–9500K color temperature range and adjustable gamma. All modules are front-serviceable and pixel cards are hot-swappable. The bundle includes LED modules, single LED controller, power bar, wall mount, overframe kit, spare parts kit, and pixel card removal tool. At 3.2 inches installed depth, the system meets ADA guidelines.
Key Features
- 220-Inch UHD Canvas — 3840x2160 across a 220-inch seamless direct-view LED surface — the largest standard FE-Series configuration.
- 1.26mm Pixel Pitch — Fine pitch maintains detail quality at viewing distances as close as 3 feet, even at this extreme screen size.
- 700 cd/m² Typical Brightness — 770 cd/m² peak for large auditorium environments.
- 4000:1 Contrast Ratio — 3-1 SMD black pixel modules for accurate color depth and dark levels.
- 80°/80° Viewing Angles — Wide-angle coverage for auditorium and all-hands seating configurations.
- Up to 3840 Hz Refresh Rate — Flicker-free UHD rendering for live video and dynamic content.
- Front-Serviceable, Hot-Swap Pixel Cards — Maintenance without rear access; pixel cards replaceable during live operation.
- Hardware Bundle — Single controller, modules, power bar, wall mount, overframe kit, spare parts, tools included.
- 3.2" ADA-Compliant Depth — Slim wall-mount integration.
- 100,000-Hour LED Lifetime — Industrial longevity for permanent installations.
Typical Applications
- All-hands room
- House of worship
- Multi-purpose room
- Lobby display
- Government space
- Digital signage
Technical Specifications
| Spec | Value |
|---|---|
| Model | LED-FE012i2-220 |
| Screen Size | 220 inches diagonal |
| Aspect Ratio | 16:9 |
| Resolution | 3840 x 2160 (UHD) |
| Pixel Pitch | 1.26 mm |
| Pixel Configuration | 3-1 SMD (Black) |
| Module Resolution | 480 x 270 |
| Brightness (Typical) | 700 cd/m² |
| Brightness (Maximum) | 770 cd/m² |
| Contrast Ratio | 4000:1 |
| Refresh Rate | Up to 3840 Hz |
| Viewing Angle | 80° H / 80° V |
| Color Processing | 16-bit (281 Trillion colors) |
| Color Temperature Range | 3000K – 9500K |
| Dimming | 256 levels |
| LED Lifetime | 100,000 hours |
| Active Screen Area | 191.2 x 108 in. (4864 x 2736 mm) |
| Installed Depth | 3.2 in. (81 mm) |
| Inputs | 1x HDMI, 1x DVI-D, 1x 3G-SDI |
| Control | 1x GenLock, 1x LAN, RS-232/USB |
| Operating Temperature | -4° to 104°F (-20° to 40°C) |
| IP Rating | IP20 (Indoor) |
| Certifications | ETL, FCC Class A, CE, CCC, RoHS |
| Warranty | 3 years |
| Included | LED Controller, LED Modules, Power Bar, Wall Mount, Overframe Kit, Spare Parts Kit, Pixel Card Removal Tool |
Frequently Asked Questions
Does this kit include installation?
No. This is a hardware-only bundle. Contact Creation Networks for installation services.
What is the difference between FA012i2-220 and FE012i2-220?
The FA-Series version adds dual-controller redundancy and power failover for mission-critical deployments. The FE012i2-220 uses a single controller and is appropriate for budget-conscious deployments without high-availability requirements.
What power infrastructure is required for a 220-inch system?
Power requirements are substantial. Consult your electrical engineer. Contact Creation Networks for complete project planning guidance.
