Sharp LED-FE025i2-220 – 220" FHD 2.53mm FE-Series LED Video Wall Kit

Product Overview

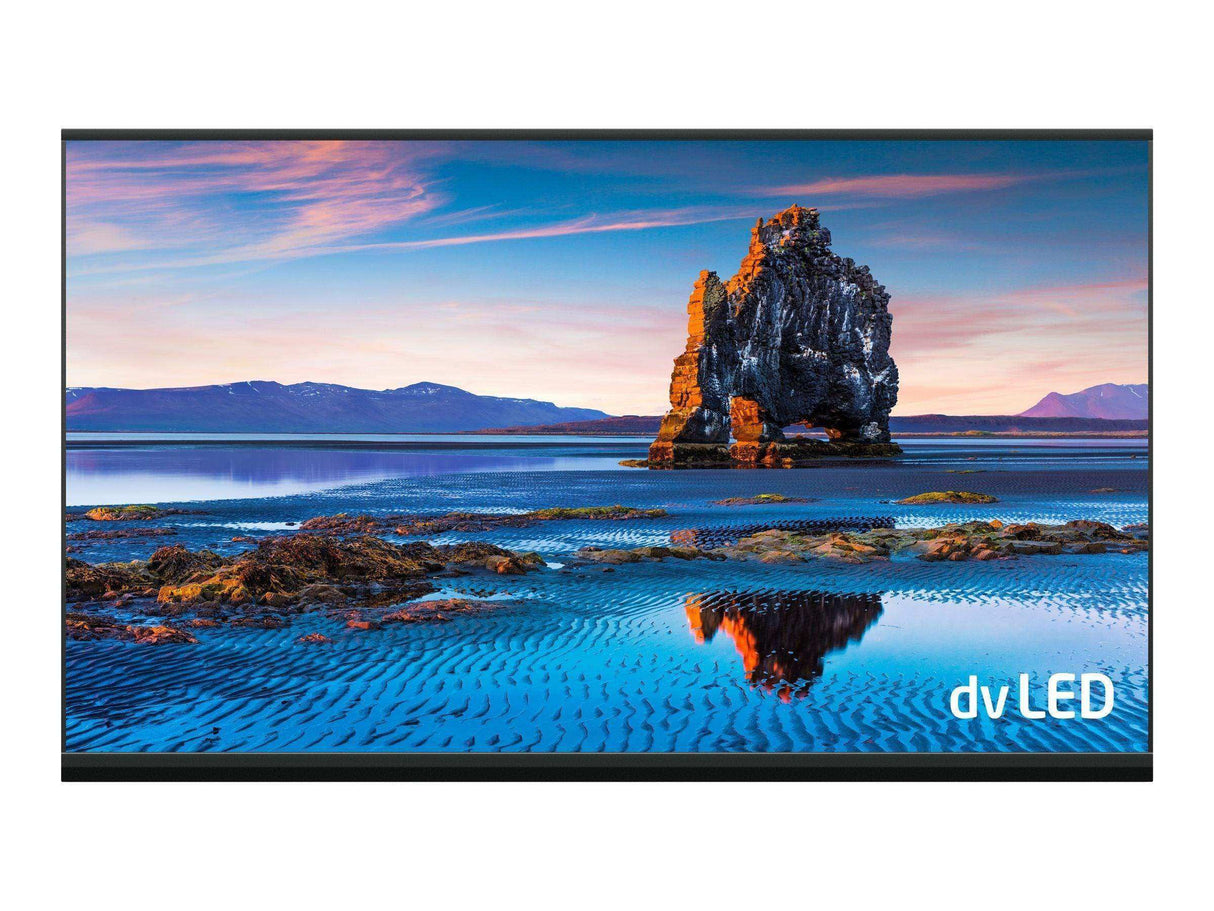

The Sharp LED-FE025i2-220 is a 220-inch Full HD direct-view LED video wall kit built on the FE-Series 2.53mm platform. Designed for large-venue environments with audience viewing distances of 8 to 15 feet, it provides 1920x1080 resolution across a massive 16:9 seamless bezel-free canvas. At a larger pixel pitch than fine-pitch FE-Series models, the LED-FE025i2-220 offers a more cost-accessible entry into large-format 220-inch LED video walls, making it practical for auditoriums, houses of worship, multi-purpose rooms, and all-hands facilities where viewing distances exceed the fine-pitch sweet spot.

Product Description

The LED-FE025i2-220 uses 2.53mm Kinglight LED modules in a multi-cabinet configuration to produce 1920x1080 FHD resolution at 220 inches diagonal. Brightness, contrast, and viewing angle specifications vary from the finer-pitch FE-Series models but remain optimized for the longer viewing distances typical at this screen size and pixel pitch. All modules are front-serviceable and pixel cards are hot-swappable. The bundle includes LED modules, single LED controller, power bar, wall mount, overframe kit, spare parts kit, and pixel card removal tool. At 3.2 inches installed depth, the system meets ADA clearance requirements. Installation is not included; contact Creation Networks for installation services or project pricing.

Key Features

• 220-Inch FHD Canvas — 1920x1080 Full HD across a 220-inch seamless 16:9 bezel-free direct-view LED surface.
• 2.53mm Pixel Pitch — Optimized for viewing distances of 8 to 15 feet, reducing cost versus fine-pitch alternatives for large venues.
• Cost-Optimized Entry to 220" — Significantly lower price point than 1.26mm UHD configurations at the same screen size.
• Front-Serviceable, Hot-Swap Pixel Cards — Maintenance without rear access; pixel cards replaceable during live operation.
• Hardware Bundle — Modules, controller, power bar, wall mount, overframe kit, spare parts, and tools included.
• 3.2" ADA-Compliant Depth — Slim installed depth for flush commercial wall integration.
• 100,000-Hour LED Lifetime — Long-life Kinglight LED components.
• Up to 3840 Hz Refresh Rate — Flicker-free rendering for presentations and video content.
• 16-Bit Color / 281 Trillion Colors — Wide-gamut rendering with fine calibration controls.

Typical Applications

• All-hands room
• House of worship
• Multi-purpose room
• Training room
• Lobby display
• Digital signage

Technical Specifications

Frequently Asked Questions

Why choose 2.53mm pixel pitch at 220 inches?
At 220 inches, content is typically viewed from 8 to 15 feet. A 2.53mm pixel pitch is well-matched for these distances and delivers substantial cost savings compared to fine-pitch configurations at the same screen size, without any visible quality penalty at the target audience distance.

Is installation included?
No. Contact Creation Networks for installation services and project pricing. A 220-inch system requires professional installation planning.

How does this compare to LED-FE012i2-220?
The FE012i2-220 uses 1.26mm pixel pitch and delivers UHD (3840x2160) resolution, ideal for close-range viewing. The FE025i2-220 uses 2.53mm pitch and delivers FHD (1920x1080), appropriate for longer viewing distances at a significantly lower cost.
