Sharp NP19ZL-4K – 2.20-3.67 Medium-Throw Zoom Lens for NP-PX1005QL
Sharp NP19ZL-4K – 2.20-3.67 Medium-Throw Zoom Lens for NP-PX1005QL is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sharp NP19ZL-4K – 2.20-3.67 Medium-Throw Zoom Lens for NP-PX1005QL
Product Overview

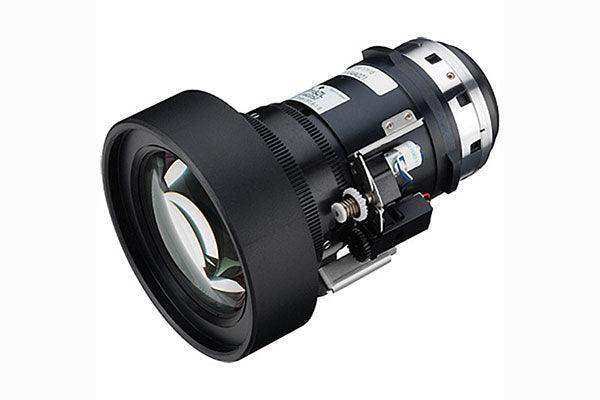

The Sharp NP19ZL-4K is a motorized medium-throw zoom lens with a 2.20-3.67:1 throw ratio and lens memory, designed for the NP-PX1005QL 4K UHD professional installation projector. The lens provides motorized zoom, focus, and lens shift—with +50%/-30% vertical and +20%/-10% horizontal shift range—enabling off-axis projector placement with optical accuracy at 4K resolution. Lens memory stores position presets for instant recall in multi-use venues.
Product Description
The NP19ZL-4K covers the medium-to-long throw range for the NP-PX1005QL platform, bridging the NP18ZL-4K (1.71-2.25:1) and NP21ZL-4K (5.25-8.28:1). At 2.20-3.67:1, the projector can be positioned approximately 15.8 to 26.4 feet from a 100-inch-wide screen, making it appropriate for large conference rooms, mid-size auditoriums, and lecture halls where the projector is ceiling-mounted at the rear of the room. The 1.67x zoom range allows significant image size adjustment without projector repositioning.
The NP19ZL-4K is sold separately from the NP-PX1005QL projector body and features a bayonet mount for tool-free exchange.
Key Features
- 2.20-3.67:1 Throw Ratio — Medium-to-long throw range for large conference rooms, auditoriums, and rear-of-room ceiling mounts.
- Motorized Zoom and Focus — Remote optical adjustment for streamlined commissioning after ceiling installation.
- Motorized Lens Shift — +50%/-30% vertical, +20%/-10% horizontal optical offset for off-axis image placement without keystone.
- Lens Memory — Stores lens position presets for instant recall.
- 4K Optimized Optics — Designed for the NP-PX1005QL 4K UHD projector to maintain full optical quality at 4K resolution.
- Bayonet Mount — Tool-free installation for fast field service and lens exchange.
Typical Applications
- Large corporate conference room and all-hands room
- Higher education auditorium and lecture hall
- House of worship mid-distance projection
- Multi-purpose venue with 4K large-screen requirement
- Government facility and command center
Technical Specifications
| Specification | Value |
|---|---|
| Model | NP19ZL-4K |
| Throw Ratio | 2.20-3.67:1 |
| Focal Length | f = 32.9-54.2mm |
| Aperture | f/1.86-2.48 |
| Zoom | Motorized |
| Focus | Motorized |
| Lens Shift (Vertical) | -30% to +50% |
| Lens Shift (Horizontal) | -10% to +20% |
| Lens Memory | Yes |
| Projection Size | 40-500 inches diagonal |
| Compatible Projectors | NP-PX1005QL-B, NP-PX1005QL-W (and -18, -R variants) |
| Mount Type | Bayonet |
Frequently Asked Questions
- Q: Which projector is the NP19ZL-4K compatible with?
- The NP19ZL-4K is designed exclusively for the NP-PX1005QL 4K UHD professional installation projector and its variants.
- Q: When should I choose the NP19ZL-4K over the NP18ZL-4K?
- Use the NP19ZL-4K when the projector must be positioned further from the screen than the NP18ZL-4K (1.71-2.25:1) allows. The NP19ZL-4K covers 2.20-3.67:1, appropriate for larger rooms and longer projection distances.
- Q: Is this lens included with the projector?
- No. The NP19ZL-4K is sold separately from the NP-PX1005QL projector body.
- Q: Where can I purchase the NP19ZL-4K?
- Available at Creation Networks, an authorized Sharp commercial AV reseller.
