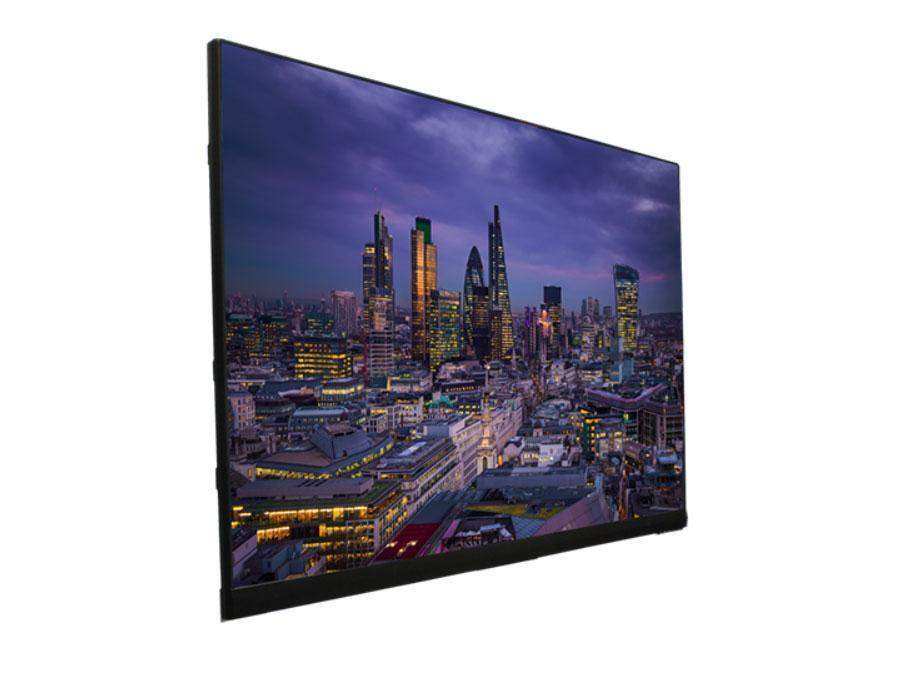

NEC LED-FA019I2 Overview
The 165" Full HD Direct-View LED Display Kit from NEC provides clear images for visual experience. It features a 16:9 aspect ratio, 1920 x 1080 resolution display built with 1.9mm pixel pitch LED module designed for colorful content visualization, and is suitable for viewing from four to ten feet away. The HD LED kit is engineered with multicolor LEDs that deliver contrast, uniformity, and viewing angles and don't require external cables for installation. The 165" display includes HDMI, DVI-D, and 3G SDI inputs.
Boardrooms, auditoriums, retail and airport signage, situational awareness, broadcast, and museums are some of the applications where the NEC 165" Full HD Direct-View LED Display Kit can be integrated.
Kit includes everything needed for LED installation including the LED modules, power bar, dual controllers, mounting structure, overframe kit as well as spare parts and a pixel card removal tool.
Built-in data and power redundancy ensures the display remains operational in the event of a single controller of power supply failure
Front-serviceable modules allowing for installation in difficult access areas
Pixel cards are hot-swappable and can be replaced without turning the display off
Shallow depth (3.2" installed) and reduced weight allow for installation flexibility and also meet ADA requirements
Improved LED performance with contrast, viewing angles, brightness uniformity, and color uniformity
Genlock external control
16-bit color processing
281 Trillion displayable colors
3-1 SMD (Black) pixel configuration
320 x 180 module resolution
NEC LED-FA019I2 Specs
Display
| Screen Size (Diagonal) |
165" |
| Resolution |
1920 x 1080 |
| Brightness |
800 cd/m² (Maximum) |
| Viewing Angle (H x V) |
170 x 170° |
| Screen Area |
143.4 x 81" / 364.24 x 205.74 cm |
| Aspect Ratio |
16:9 |
| Contrast Ratio |
5000:1 |
| Refresh Rate |
2880 Hz |
| Dot Pitch |
1.9 x 1.9 mm |
| Backlighting Technology |
Direct LED |
Connectivity
| Primary Connectivity Location |
Display |
| Input Ports |
1 x SDI Video
1 x DVI-D Video
1 x HDMI Video
1 x BNC Video |
| USB Ports |
1 x USB (Version Unspecified) |
| Ethernet Ports |
1 |
| Control |
RS-232C via DE-9/DB-9
IP via RJ45 |
General
| Display Orientation |
Landscape |
| Lighting Lifespan |
100000 Hours |
Electrical
| Power Consumption |
Typical: 2052.0 W
Maximum: 4500.0 W |
Environmental
| Operating Temperature |
-4 to 104°F / -20 to 40°C |
| Storage Temperature |
-4 to 113°F / -20 to 45°C |
| Operating Humidity |
10 to 80% |
| Storage Humidity |
10 to 85% |
| Certifications |
CCC, CE, ETL, FCC, RoHS, as per Manufacturer |
Physical
| Dimensions |
143.4 x 85.5 x 3.2" / 364.2 x 217.2 x 8.1 cm (without Stand) |
| Weight |
698.4 lb / 316.79 kg (without Stand) |
