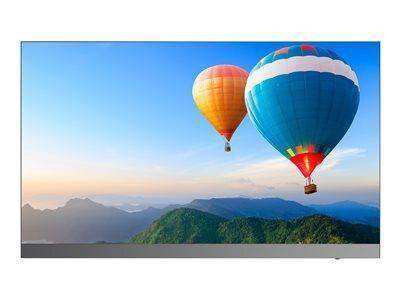

Sharp LED-E018i-162 – 162" FHD 1.88mm E-Series LED Video Wall Kit

Product Overview

The Sharp LED-E018i-162 is a 162-inch Full HD direct-view LED video wall kit from Sharp's E-Series commercial LED platform. Using a 1.875mm pixel pitch module, it delivers 1920x1080 resolution across a seamless 16:9 canvas at 800 cd/m² typical brightness — the highest brightness rating among the E-Series kit lineup. Standard installation is included. The 162-inch size is appropriate for large boardrooms, all-hands rooms, houses of worship, and auditoriums with viewing distances of approximately 5 to 10 feet.

Product Description

The LED-E018i-162 uses a 1.875mm pitch 3-1 SMD black pixel module producing 1920x1080 FHD at 162 inches. Brightness is rated at 800 cd/m² typical and 880 cd/m² peak — notably higher than the E012i-108 and E015i-135 — with a 5000:1 contrast ratio and 70°/70° viewing angles. Refresh rate reaches 3840 Hz. The 16-bit color processing engine supports 281 trillion displayable colors. The bundle includes LED modules, LED controller, power bar, wall mount, overframe kit, spare parts kit, and standard installation labor. All modules are front-serviceable and pixel cards are hot-swappable. Active screen area measures 141.6 x 79.8 inches (3600 x 2025 mm).

Key Features

• 162-Inch FHD Canvas — 1920x1080 seamless direct-view LED at 162 inches, 16:9 aspect ratio.
• 1.875mm Pixel Pitch — Appropriate for 5 to 10 foot viewing distances in large conference and all-hands spaces.
• 800 cd/m² Typical / 880 cd/m² Peak Brightness — Highest brightness in the E-Series lineup, suitable for brighter ambient environments.
• 5000:1 Contrast Ratio — Strong dark-level and color accuracy performance.
• E-Series Value Platform — Sharp/NEC LED quality with commercial service support at a competitive price for large-format installations.
• Standard Installation Included — Installation labor is included in the purchase price.
• Front-Serviceable, Hot-Swap Pixel Cards — On-site maintenance from the front face during live operation.
• Up to 3840 Hz Refresh Rate — Flicker-free rendering for video, presentations, and dynamic content.
• 100,000-Hour LED Lifetime — Long-life industrial LED components.

Typical Applications

• All-hands room
• House of worship
• Multi-purpose room
• Boardroom
• Training room
• Lobby display

Technical Specifications

Frequently Asked Questions

Why does the E018i-162 have higher brightness than E012i-108 and E015i-135?
The 1.875mm module used in the E018i-162 has a higher output LED configuration than the 1.25mm and 1.56mm modules in the other E-Series kits. At 162 inches with larger viewing distances, higher brightness helps maintain visibility in ambient-lit large-venue environments.

Is installation included?
Yes. Standard installation labor is included. Contact Creation Networks for site-specific assessment of non-standard conditions.

How does this compare to FE-Series at similar screen sizes?
The FE015I3-137 and FE019I3-165 offer comparable screen sizes with slightly different pixel pitch and brightness specifications. E-Series provides a more cost-accessible entry point with full Sharp/NEC commercial warranty and support.
